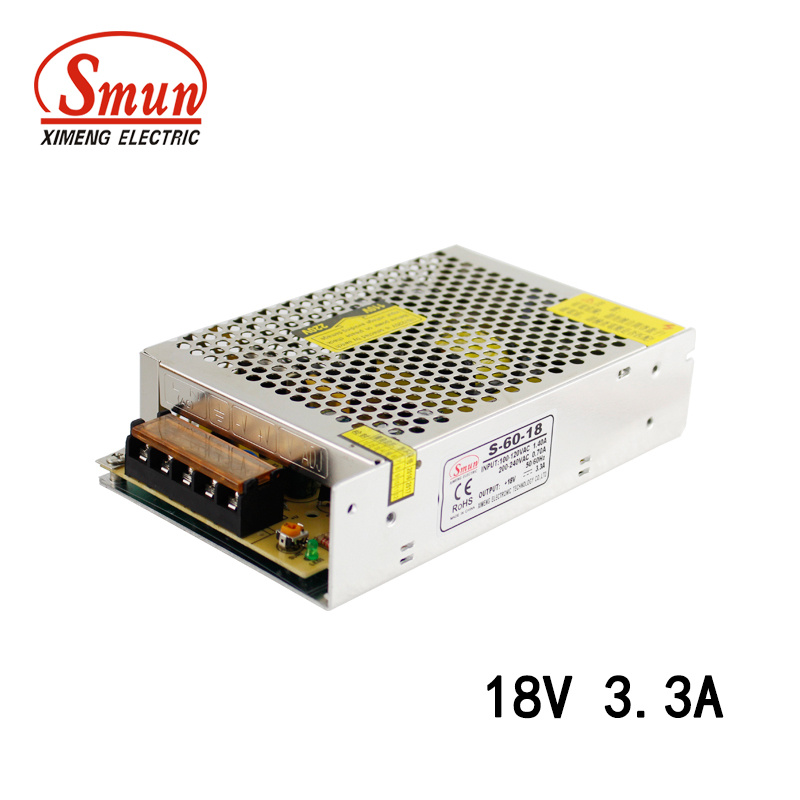

| Prod Model: |
S-60-18 |
| DC Output: |
60W 18VDC 3.3A |
| Input: |
85-130VAC 170-260VAC Select by Switch |
| Size: |
159*98*38mm |
| Weight: |
0.5kg |
| Package: |
30PCS/16kg |
| Frequency: |
50/60Hz |
| Other: |
OEM |
| Working Temperature: |
-10~+60 Degree C,20%~90%Rh |
| DC Adjustable: |
10% |
| Safety Standard: |
En60950 UL60950 GB4943 |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
51 - 100W |
| Input Voltage: |
Full Range |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CCC |
| Brand: |
Smun |
Product Description
Our company is a high-tech company specialized in designing. R&D. Production and sale,
The products"Switching Power Supply" are with the characteristics of the low price,
High efficiency, high reliability, long lifetime and so on. Our products are widely used
In industrial automation field, indoor and outdoor LED lighting, LED lighting projects,
Communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded
Product to replace traditional controlling transformer.
The design of this series of products is in accordance with such international standards
As American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD.
Our Switching Supply have many series:
Single output Switching Power Power Supply
Dual output Switching Power Supply
Triple output Switching Power Supply
Quad output Switching Power Supply
DIN-rail Switching Power Supply
LED driver Switching Power Supply
DC Power Supply Series
Also we can design and produce according to your need.
Welcome to contact us anytime.
| Model |
| S-60-5 | S-60-12 | S-60-18 | S-60-48 |
| Output | DC output Voltage | 5V | 12V | 15V | 48V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| Rated Current | 12A | 5A | 3.3A | 1.25A |
| Related Power | 60w | 60w | 60w | 60w |
| Wave&Noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Adjustable range for DC Voltage | ±10% | ±10% | ±10% | ±10% |
| Set up,rise,hold up time | 200ms 100ms 20ms |
| Input | Voltage Range | 85~132VAC 170-264VAC selected by switch 47-63HZ 240-370VDC |
| Input Current | 2A/115VAC 1A/230VAC |
| Efficiency | 78% | 78% | 78% | 82% |
| AC inrush current | Cold start current 15A/115V 30A /230VAC |
| Leakage current | <0.5mA/240VAC |
| Protection | Overload | Related output power 105-150% start overload protection |
| Protection type: cutoff output, recovery after restart power |
| Over voltage | 5.75V-6.75V | 13.8V-16.2V | 17.2V-20.2V | 27.6V-32.4V |
| Hiccup mode,recovers automatically after fault condition |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC 1min |
| I/P-FG:1.5KVAC 1min |
| O/P-FG:0.5KVAC 1min |
| Standard | Safety standard | Fit UL1012 |
| Refer | Design refer to GB4943,UL60950,EN60950 |
| EMC standard | Design refer to GB9254,EN55022 Class A |
| Size | size | L159*W98*H38mm |
| Package | 0.5kg, 30pcs/15kg |
| Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 degree of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation. |
Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.
