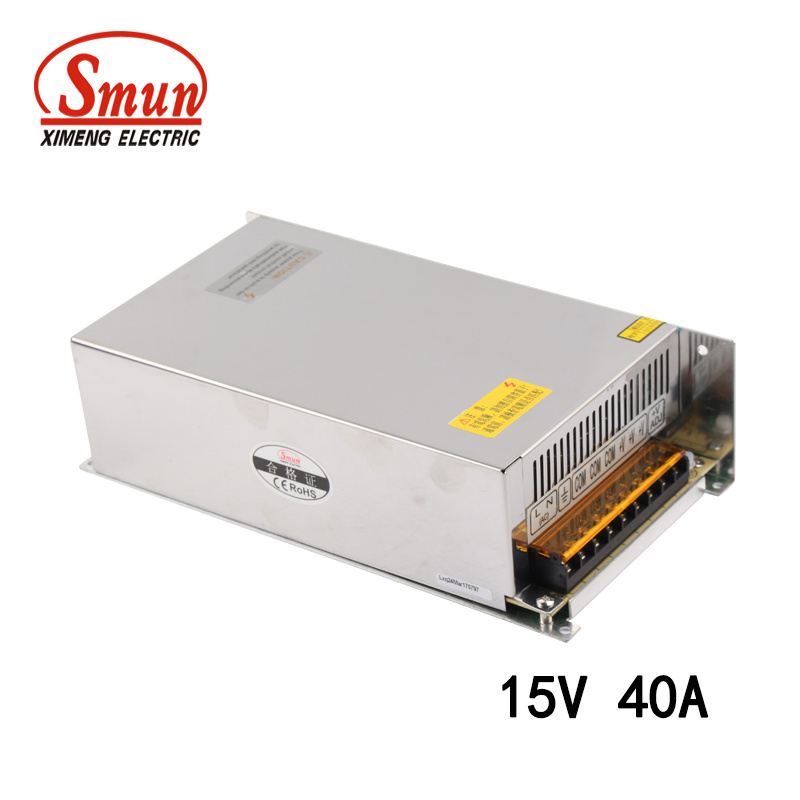

| Prod Model: |
S-600-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
86~132/180-264VAC 47-63Hz 240-370VDC |
| Input Current: |
7A/230V |
| Power: |
600W |
| Output: |
15VDC 40A |
| Size: |
238*124*65mm |
| Weight: |
1.35kg |
| Package: |
12PCS/17kg |
| DC Adjustable: |
10% |
| Safety Standard: |
En60950 UL60950 GB4943 |
| Customized: |
Available |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
>500W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Input Voltage: |
110VAC/220VAC |
| Brand: |
Smun |
Product Description
AC/DC DC/DC Switching Power Supply (SMPS) 15W Single Output S-15
SIZE:99*97*35MM
S-600-12:12V 0-50A Single output constant voltage switching power supply
S-600-15:12V 0-40A Single output constant voltage switching power supply
S-600-24:24V 0-25A Single output constant voltage switching power supply
S-600-48: 48V 0-12.5A Single output constant voltage switching power supply
Features:
1)AC input voltage range: 180-264vac 47-63hz 240-370vdc
2)input current:7A/230V
3:AC inrush current: 50A/230V
4:Leakage current:<3.5mA/240VAC
5:DC adjustable range:±10% rated output voltage
6:over load protection:105-150%cut down output, auto-recovery
7:over-voltage protection:115-135%
8:set uo, rise,hold up time: 200ms,50ms 20ms
9:withstand voltage: I/P-O/P:1.5KVAC 1Minutes
I/P-FG:1.5KVAC 1MInutes
O/P-FG:0.5VAC 1minutes
10: working temperature: -10~+60°C,20-90%RH
11:weight/packing: 1.35kg,12pcs/18kg
Apply to the automatic controlled field. Such as LED screen, industrial control equipment, communications equipment and instrument&meter etc.
If you want to know more information about our items please visit our website.
S-600W Single output switching power supply |
Model NO. |
OUTPUT |
Tolerance |
range |
efficiency |
| S-600-12 | 12V, 0-50A | ± 1% | 240mV | 83% |
| S-600-15 | 15V, 0-40A | ± 1% | 240mV | 84% |
| S-600-24 | 24V, 0-25A | ± 1% | 240mV | 85% |
| S-600-48 | 48V, 0-12.5A | ± 1% | 300mV | 87% |
| AC input voltage range | 180-264vac 47-63hz 240-370VDC |
| input current | 7A/230V |
| AC inrush current | Cold-start current 50A/230V |
| Leakage current | < 3.5mA/240VAC |
| DC adjustable range | ± 10% rated output voltage |
| over load protection | 105-150%cut down output, auto-recovery |
| over-voltage protection | 115-135% |
| set up, rise, hold up time: | 200ms, 50ms 30ms |
| withstand voltage: | I/P-O/P: 1.5KVAC 1Minutes
I/P-FG: 1.5KVAC 1MInutes
O/P-FG: 0.5VAC 1minutes |
| working temperature | -10~+60° C, 20-90%RH |
| weight/packing: | 1.35kg, 12pcs/15kg |
| Size | 238*124*65MM |
| certificate | CE ISO9000 ROHS |
| Warranty year | 1 year |
| Protections | Short circuit / Over load / Over voltage |
