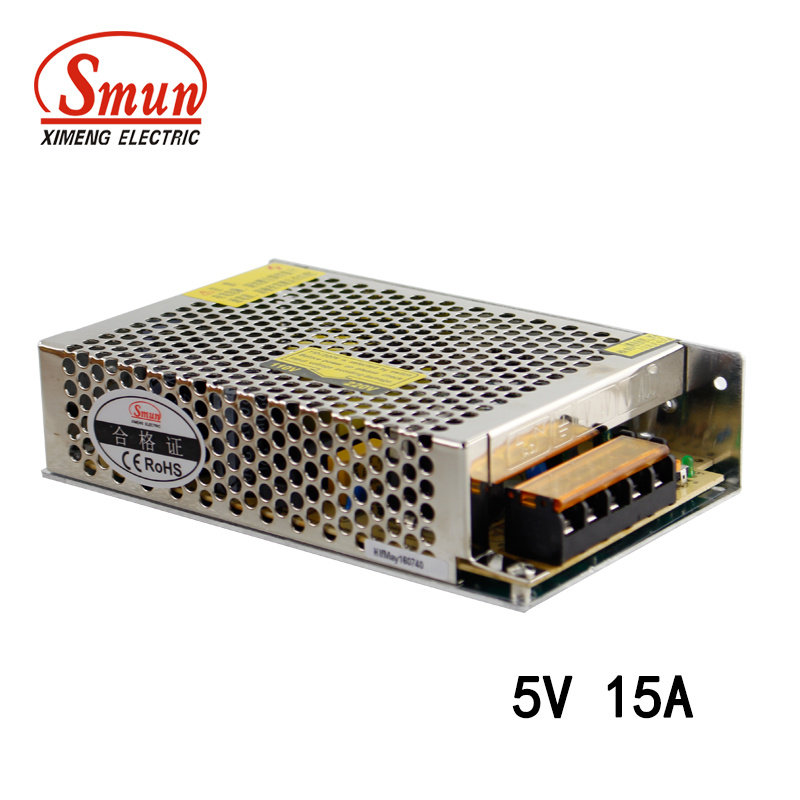

Smun S-75-5 75W 5V 15A Single Output Switch Power Supply

Smun S-75-5 75W 5V 15A Single Output Switch Power Supply
Price: US $ 5.5-7.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: S-75-5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: S-75-5
Power: 75W
Input: 85-132VAC 170-264VAC
Output: 5V15A
Frequency: 47-63Hz
Size: 159*98*38
Weight: 0.5kg
Package: 40PCS/20kg
DC Adjustable: 10%
Safety Standard: En60950 UL60950 GB4943
Output Type: Single
Warranty: 2 Years
Output Power: 51 - 100W
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Input Voltage: 85-132VAC/170-264VAC/47-63Hz/240-370VDC
Certification: CE CCC RoHS

Product Description

Single output power supply 75w 5v 15a

High efficiency, low power consumption
Energy saving, environmentally friendly
Stable quality, 100% test before delivery
Built-in PWM control IC switch power supply
Rigorous ripple and low noise
Isolated power switch power supply
Over-heat, over-load, short-circuit & open-circuit protection
Ta: -20° C to 50° C, Tc: 60° C max
Small size for quick assembly and easy installation
S-75W  Single  output  switching  power  supply

Model  NO.

OUTPUT

Tolerance

range

efficiency
S-75-55V, 0-15A± 1%100mV68%
S-75-1212V, 0-6.3A± 1%100mV68%
S-75-1515V, 0-5A± 1%100mV72%
S-75-2424V, 0-3.2A± 1%100mV82%
AC  input  voltage  range85-132vac/170-264vac  47-63hz  240-370vdc
input  current1.6A/115V  0.8A/230V
AC  inrush  current18A/115V  36A/230V
Leakage  current< 1mA/240VAC
DC  adjustable  range± 10%  rated  output  voltage
over  load  protection105-150%cut  down  output,   auto-recovery
over-voltage  protection115-135%
set  up,   rise, hold  up  time:200ms, 100ms  30ms
withstand  voltage:I/P-O/P: 1.5KVAC  1Minutes
I/P-FG: 1.5KVAC  1MInutes
O/P-FG: 0.5VAC  1minutes
working  temperature-10~+60° C, 20-90%RH
weight/packing:0.5kg, 40pcs/20kg
MaterialAluminum
Size  159*98*38
certificateCE    ISO9000  ROHS
Warranty  year2  year
ProtectionsShort  circuit  /  Over  load  /  Over  voltage
