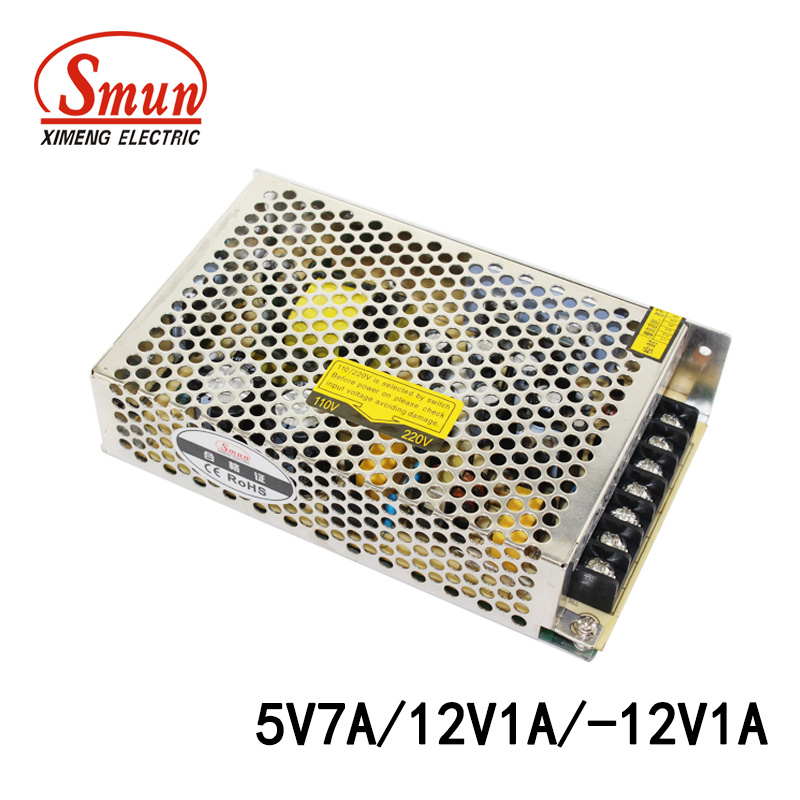

| Prod Model: |
T-60B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
60W |
| Input: |
85-132VAC 170-260VAC 240-370VDC |
| Output: |
5V7a/12V1a/-121A |
| Size: |
159*98*38mm |
| Weight: |
0.54kg |
| Package: |
22kg/40PCS |
| Working Temperature: |
-10~+60 Degree C |
| Efficiency: |
72% |
| OEM: |
Available |
| Customaztion: |
Available |
| Output Type: |
Triple |
| Warranty: |
2 Years |
| Output Power: |
51 - 100W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CE |
| Input Voltage: |
85~264VAC |
| Brand: |
Smun |
Product Description
1. Switch: Power electronic component is working at swich status not linear status
2. High frequency: Power electronic component is working at high frequency status not the low frequency closed to power frequency
3. DC: The output voltage of power supply is DC not AC
Working characteristic:
1. Small size, light weight
2. Small power waste
3. High efficiency: Power transistor is working at switch status, so the power waste is small, conversion efficiency is high, generally it's about 60-70%, and the linear power is only 30-40%
All the above details are about the XIMENMG if you have any query pls do feel free to contact us.
| Model | T-60A | T-60B |
| Output | DC Voltage | Ch1:5v | Ch2:12v | Ch1:5v | Ch2:5v | Ch1:12v | Ch2:12v |
| Voltage tolerance | ±2.0% | ±6.0% | ±6.0% | ±2.0% | ±6.0% | ±6.0% |
| Rated Current | 0.5-8A | 0.2-1A | 0-1A | 0.5-7A | 0.2-1A | 0-1A |
| Related Power | 60w | 60w |
| Wave&Noise | 80mVp-p | 120mVp-p | 80mVp-p | 150mVp-p | 120mVp-p | 150mVp-p |
| DC Voltage ADJ range | Ch1:-9%~+10% |
| Set up,rise,hold up time | 200ms 100ms 30ms |
| Input | Voltage Range | 95 ~132VAC 180-264VAC 47-63HZ 120-370VDC |
| AC Current | 1.6A/115VAC 0.8A/230VAC |
| Efficiency | 72% | 72% |
| AC inrush current | Cold start current 20A/115V 40A /230VAC |
| Leakage current | <3.5mA/240VAC |
| Protection | Overload | Related output power 105-150% start overload protection |
| Protection type: cutoff output, recovery after restart power |
| Over voltage | Ch2 :115%~135% |
| Hiccup mode,recovers automatically after fault condition |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Storage temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Withstand vibration | 10-500Hz,2G 10min/1 cycle, period for 60min, each axes |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P:I/P-FG:O/P-FG: 100M Ohms/500VDC |
| Standard | Safety standard | Fit UL1012 |
| Refer | Design refer to GB4943,UL60950,EN60950 |
| EMC standard | Design refer to GB9254,EN55022 Class A |
| Size | size | L159*W98*H38mm |
| Package | 0.54kg, 40pcs/22kg |
