Zhejiang Ximeng Electronic Technology Co., Ltd. >> Smv-30-24 30W 24V 1.2A Waterproof IP67 Constant Voltage Power Supply

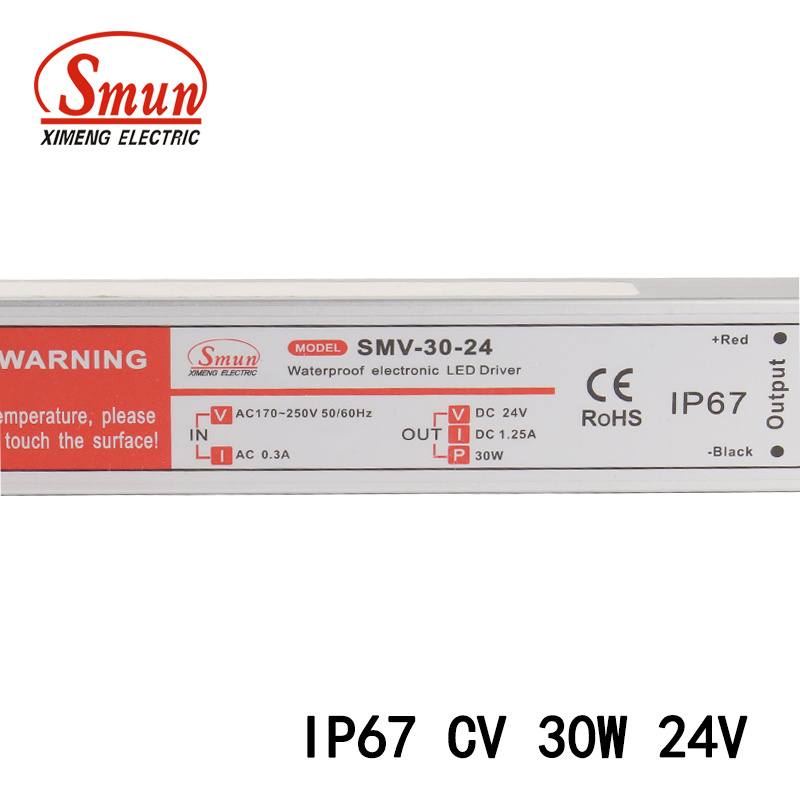

Smv-30-24 30W 24V 1.2A Waterproof IP67 Constant Voltage Power Supply

Smv-30-24 30W 24V 1.2A Waterproof IP67 Constant Voltage Power Supply
Price: US $ 4.2-6.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SMV-30-24
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: 20W
Input Voltage: 90~264VAC 47~63Hz
Input Current: 0.4A/230V
Output: 24V,0~1.2A
Weight: 0.25kg
Size: 222*28*20mm
Waterproof Level: IP67
Safety Standard: En60950 UL60950 GB4943
Working Temperature: -25~50 Degree C
Is Customized: Yes
Usage: Vehicle
Output Type: Single
Driving Method: LED Regulator Voltage
Circuit Structure: Electronic Step-down Transformer
Pack Sealing Size: 222*28*20mm
Brand: Smun

Product Description

30W LED driver power supply waterproof IP67 AC-DC
LED Driver
*Small size, light weight, high efficiency, long life, safety and reliability
*Built-in PFC function
*Protections: Over voltage, Over current, Over temperature., Short Circuit
*Waterproof Rank: IP67
*Ideal for outdoor LED lighting, LED street lights, LED tunnel lighting and so on
SMV-30W  LED  driver  water-proof  power  supply

Model  NO.

OUTPUT

Tolerance

range

efficiency
SMV-30-1212V, 0-2.5A± 1%50mV75%
SMV-30-1515V, 0-2.0A± 1%50mV80%
SMV-30-2424V, 0-1.2A± 1%100mV82%
SMV-30-4848V, 0-0.6A± 1%100mV85%
AC  input  voltage  range90-260vac  47-63hz
input  current0.4A/230V
AC  inrush  currentCold-start  current30A/230V
Leakage  current< 0.5mA/240VAC
DC  adjustable  range± 10%  rated  output  voltage
Over  load  protection105-150%cut  down  output,   auto-recovery
Water-proof  degreeIP67
set  up,   rise, hold  up  time:200ms, 100ms  30ms
withstand  voltage:I/P-O/P: 1.5KVAC  1Minutes
I/P-FG: 1.5KVAC  1MInutes
O/P-FG: 0.5VAC  1minutes
working  temperature-10~+60° C, 20-90%RH
weight/packing:0.25kg
Size222*28*20MM
certificateCE    ISO9001    ROHS
Warranty  year2  year
ProtectionsShort  circuit  /  Over  load  /  Over  voltage
