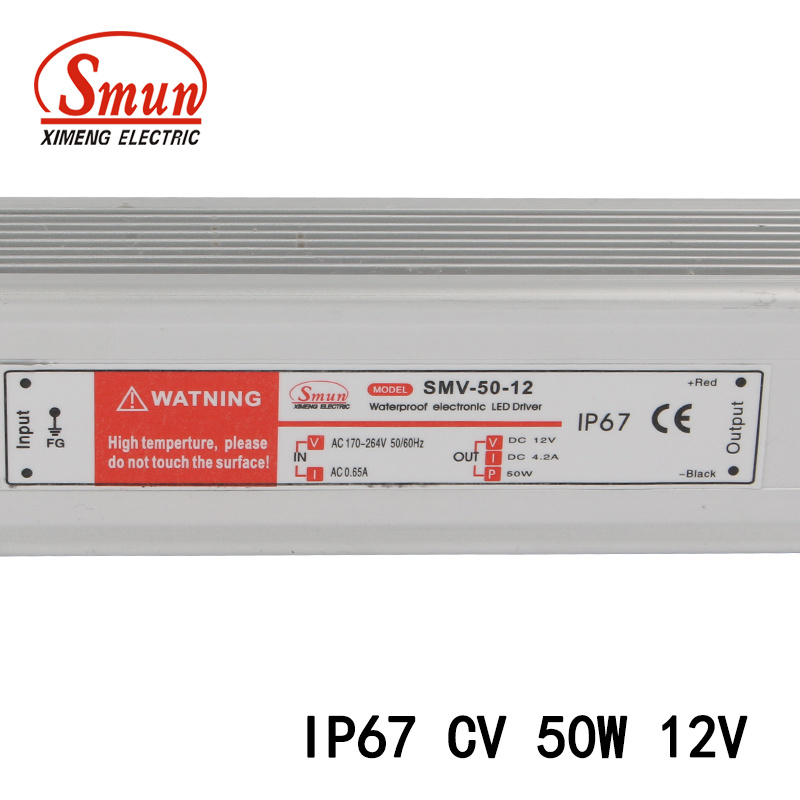

| Prod Model: |
SMV-50-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
50W |
| Input: |
170-264VAC 47-63Hz |
| Output: |
12V 4A |
| Size: |
190*48*34mm |
| Weight: |
0.78kg |
| IP Degree: |
IP67 |
| Working Temperature: |
-25~+50 Degree C |
| Safety Standard: |
En60950 UL60950 GB4943 |
| Customized: |
Available |
| OEM: |
Available |
| Usage: |
Digital Products |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
PWM Controlled |
| Pack Sealing Size: |
190*48*34mm |
| Brand: |
Smun |
Product Description
Features:
1) The world to adapt to AC input power
2) Protection: Overload, short circuit, over voltage, over-temperature protection
3)Natural air-cooled heat
4)Aluminum plastic shell with internal irrigation design in line with the reuqirements of IP67 waterproof
5)Apply to indoor and outdoor LED lighting, electronic billboards, decorative lighting applications garden scaping
6)100% full load burn-in test
7) Competitive price, high reliability
8) Dimensions: 190x 47 x 38mm
9) CE, RoHS certified
10)Customized designs are accepted
| MODEL | SMV-50-12 | SMV-50-15 | SMV-50-24 | SMV-50-48 |
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 48V |
| RATED CURRENT | 4.2A | 3.3A | 2.0A | 1.0A |
| RATED POWER | 50.4W | 49.5W | 48W | 48W |
| RIPPLE&NOISE | 50mVp-p | 50mVp-p | 100mVp-p | 100mVp-p |
| VOLTAGE ADJ.RANGE | 4.75-5.5V | 10.8-13.2V | 13.5-16.5V | 21.6-26.4V |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| LOAD REGULATION | ±1.0% | ±1.0% | ±0.5% | ±0.5% |
| SETUP,RISE TIME | 300ms,50ms/230VAC 800ms,50ms/115VAC at full load |
| HOLD UP TIME(TYP.) | 90ms/230VAC 12ms/115VAC at full load |
| INPUT | VOLTAGE RANGE | 170-264VAC |
| FREQUENCY RANGE | 47-63HZ |
| EFFICIENCY(Typ.) | 75% | 80% | 82% | 85% |
| AC CURRENT(Typ.) | 0.65A/230VAC |
| INRUSH CURRENT | COLD START 36A/230VAC |
| LEAKAGE CURRENT | 1mA/240VAC |
| PROTECTION | OVERLOAD | 105-150% RATED OUTPUT POWER |
| WATER-PROOF LEVEL:IP67 |
| OVER VOLTAGE | 5.75V-6.75V | 17.2V-20.25V | 27.6V-32.4V |
| Protection type:Hiccup mode,recovers automatically after fault condition |
| ENVIRONMENT | WORKING TEMP | -25~+50°C |
| WORKING HUMIDITY | 20-90%RH non-condesing |
| STORAGE TEMP,HUMIDITY | -20~+85°C,10-95%RH |
| TEMP.COEFFICIENT | ±0.03%°C(0-50°C) |
| VIBRATION | 10-500HZ |
| SAFETY&EMC | SAFETY STANDARD | CE RoHS |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute |
| ISOLATION RESISTANCE | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH |
| EMI CONDUCTION&RADIATION | Design refer to GB4943,UL60950,EN60950 |
| EMC STANDARD | Design refer to GB9254,EN55022 Class A |
| DIMENSION | L190*W47*H38mm |
| PACKING | 0.78kg |
