SNB 1.25-4 Copper Non-Insulated Spade Terminal

Name: SNB 1.25-4 Copper Non-Insulated Spade Terminal
Brand: all-electronics-online.com
SKU: 679251845
Availability: InStock
Rating: 4.3 (38 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Socket Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Shape:	Fork

Product Description

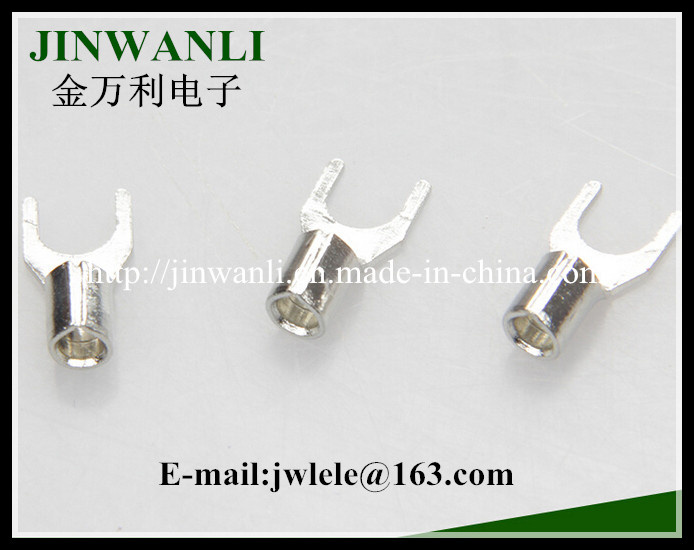

SNB 1.25-4 Copper Non-Insulated Spade Terminal

Surface: Tin-plated.

Terminal material: Copper/Brass.

OEM: Available

Samples: Free of Charge

Certificate: ISO900 CE, ROHS

Application: Wiring and cable joint.

Delivery time: depends on the quantity you order

Non-insulated spade terminals or ring shaped insulated terminal

----------------- ring shaped insulated terminal application:

Non-insulated spade terminals or ring shaped insulated terminal is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric

power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on .

And it is also for mating and maintenance fittings of device power and connectors imported from abroad. So it is a new generation ideal power supply unit .

Section of lead: 0.5 - 1.5 mm2 (USA Spec 22 - 16 ) Imax = 19A

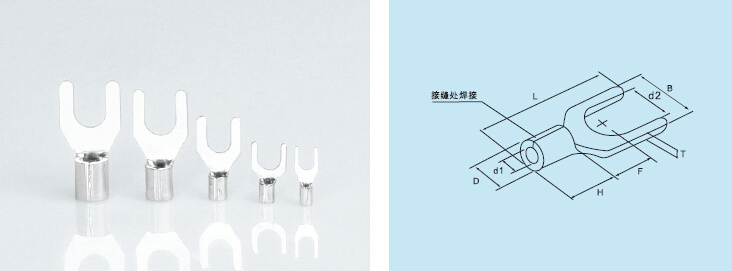

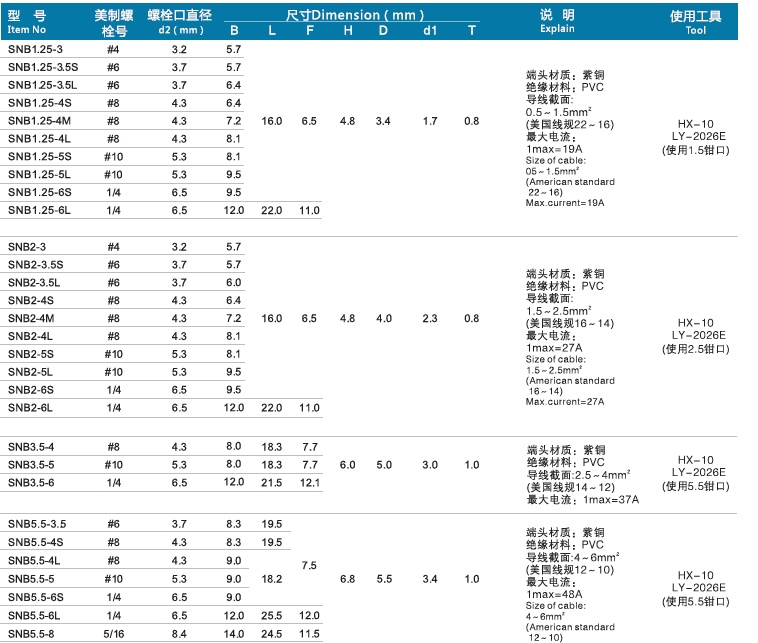

ITEM NO.	Dimension
	USA BOLT NO.	BOLT dia.	B	L	F	E	D Φ	dΦ
	USA BOLT NO.	d2	mm	mm	mm	mm	mm	mm
SNB1.25 - 3	#4	3.2mm	5.7	16.0	6.5	4.8	3.4	1.7
SNBS1.25 - 3.5	#6	3.7mm	5.7	16.0	6.5
SNBL1.25 - 3.5	#6	3.7mm	6.4	16.0	6.5
SNBS1.25 - 4	#8	4.3mm	6.4	16.0	6.5
SNBM1.25 - 4	#8	4.3mm	7.2	16.0	6.5
SNBL1.25 - 4	#8	4.3mm	8.1	16.0	6.5
SNBS1.25 - 5	#10	5.3mm	8.1	16.0	6.5
SNBL1.25 - 5	#10	5.3mm	9.5	16.0	6.5
SNBS1.25 - 6	1/4	6.5mm	9.5	16.0	6.5
SNBL1.25 - 6	1/4	6.5mm	12.0	22.0	11.0

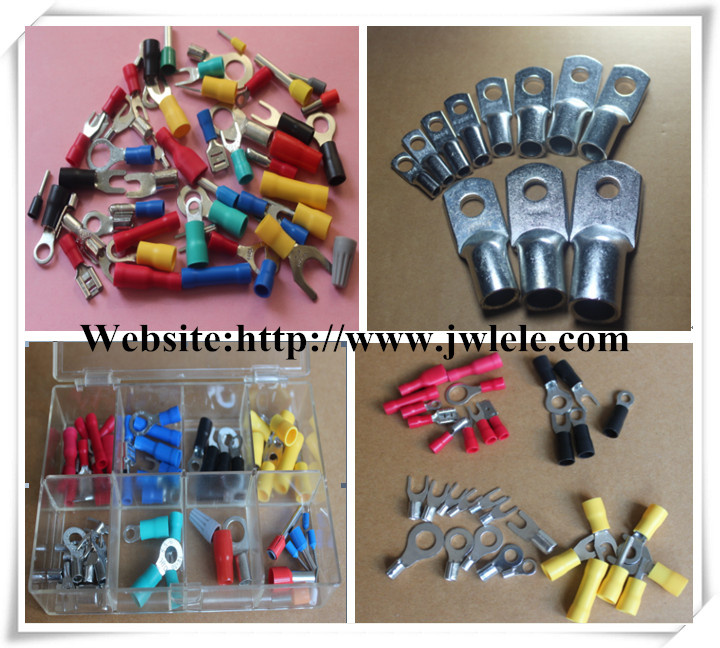

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
