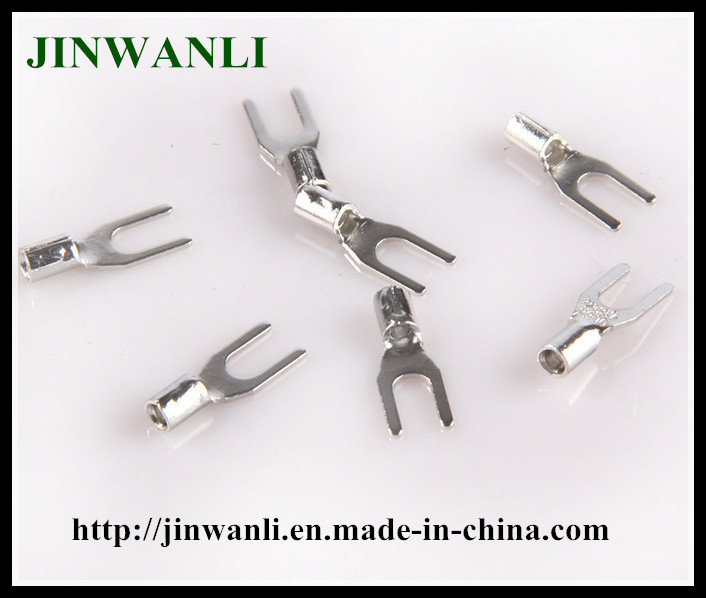

Snb Non-Insulated Copper Fork Naked Terminal Lug

Name: Snb Non-Insulated Copper Fork Naked Terminal Lug
Brand: all-electronics-online.com
SKU: 764440155
Availability: InStock
Rating: 4.9 (75 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	snb
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Socket Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Shape:	Fork

Product Description

SNB 1.25-4 Copper Non-Insulated Spade Terminal

Surface: Tin-plated.
Terminal material: Copper/Brass.

OEM: Available
Samples: Free of Charge

Certificate: ISO900 CE, ROHS
Application: Wiring and cable joint.
Delivery time: depends on the quantity you order

Non-insulated spade terminals or ring shaped insulated terminal
----------------- ring shaped insulated terminal application:

Non-insulated spade terminals or ring shaped insulated terminal is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on .

And it is also for mating and maintenance fittings of device power and connectors imported from abroad. So it is a new generation ideal power supply unit .

The products are sold to over 20 provinces,municipalities and autonomous regions in our country ,and sortheast Asia,European ,Americal and so on areas as well,they are quite enjoyed by clients.

Section of lead: 0.5 - 1.5 mm2 (USA Spec 22 - 16 ) Imax = 19A
ITEM NO.	Dimension
	USABOLTNO	BOLT dia.	B	L	F	E	D Φ	dΦ
	USABOLTNO	d2	mm	mm	mm	mm	mm	mm
SNB1.25 - 3	#4	3.2mm	5.7	16.0	6.5	4.8	3.4	1.7
SNBS1.25 - 3.5	#6	3.7mm	5.7	16.0	6.5
SNBL1.25 - 3.5	#6	3.7mm	6.4	16.0	6.5
SNBS1.25 - 4	#8	4.3mm	6.4	16.0	6.5
SNBM1.25 - 4	#8	4.3mm	7.2	16.0	6.5
SNBL1.25 - 4	#8	4.3mm	8.1	16.0	6.5
SNBS1.25 - 5	#10	5.3mm	8.1	16.0	6.5
SNBL1.25 - 5	#10	5.3mm	9.5	16.0	6.5
SNBS1.25 - 6	1/4	6.5mm	9.5	16.0	6.5
SNBL1.25 - 6	1/4	6.5mm	12.0	22.0	11.0

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
