Product Description
Our advantage is price and quality. Long time working on terminal made us the best. RING TERMINALS(ISO9001 CE SGS)
Jinwanli company is your direct source for professional grade terminal and connector's supplier. We can supply insulated terminals, naked terminals, copper terminals, cable terminals, and thousands of other terminals and connectors, all backed by the best management, advanced technology and high-quality service in our company. And we have got the certification of ISO9001 CE&SGS.

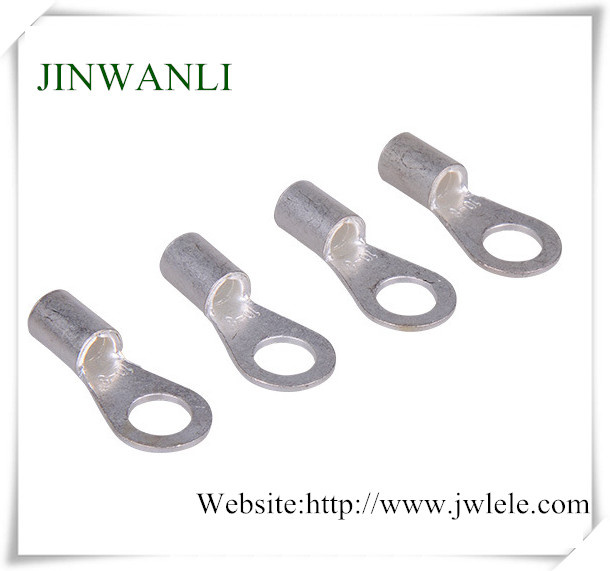

NON-INSULATED RING TERMINAL
| Cross-Section of wire:0.5-1.5(mm²) | A.W.G(22-16) | Imax=19A | Standard thickness:copper 0.7mm |
| ITEM NO | American Bolt NO | DIMENSION | d |
| d2φ | B | L | F | E | Dφ |
| mm | mm | mm | mm | mm | mm | |
| RNB1.25-3 | #4 | 3.2 | 5.7 | 12.6 | 4.95 | 4.8 | 4.3 | 1.7 |
| RNB1.25-3.5S | #6 | 3.7 | 5.7 | 12.6 | 4.95 |
| RNB1.25-3.5M | #6 | 3.7 | 6.6 | 14.4 | 6.3 |
| RNB1.25-3.5L | #6 | 3.7 | 7.2 | 15.8 | 7 |
| RNB1.25-4S | #8 | 4.3 | 6.6 | 14.4 | 6.3 |
| RNB1.25-4L | #8 | 4.3 | 8 | 15.8 | 7 |
| RNB1.25-5S | #10 | 5.3 | 8 | 15.8 | 7 |
| RNB1.25-5M | #10 | 5.3 | 9.5 | 18 | 8.5 |
| RNB1.25-5L | #10 | 5.3 | 11.6 | 21.8 | 11.1 |
| RNB1.25-6S | 1/4 | 6.5 | 9.5 | 18 | 8.5 |
| RNB1.25-6 | 1/4 | 6.5 | 11.6 | 21.8 | 11.1 |
| RNB1.25-8 | 5/16 | 8.4 | 11.6 | 21.8 | 11.1 |
| RNB1.25-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 |
| RNB1.25-12 | 1/2 | 13 | 19.2 | 30.4 | 16 |
| Non-Insulating quality RNB Ring connector terminal |
| Cross-Section of wire:1.5-2.5(mm²) | A.W.G(16-14) | Imax=27A | Standard thickness:copper 0.8mm |
| ITEM NO | American Bolt NO | DIMENSION | d |
| d2 | B | L | F | E | D |
| mm | mm | mm | mm | mm | mm |
| RNB2-3 | #4 | 3.2 | 6.6 | 12.7 | 4.75 | 4.8 | 4 | 2.3 |
| RNB2-3.5S | #6 | 3.7 | 6.6 | 12.7 | 4.75 |
| RNB2-3.5M | #6 | 3.7 | 6.6 | 16 | 7 |
| RNB2-3.5L | #6 | 3.7 | 8.5 | 16.8 | 7.75 |
| RNB2-4S | #8 | 4.3 | 6.6 | 16 | 7 |
| RNB2-4L | #8 | 4.3 | 8.5 | 16.8 | 7.75 |
| RNB2-5S | #10 | 5.3 | 8.5 | 16.8 | 7.75 |
| RNB2-5L | #10 | 5.3 | 9.5 | 16.8 | 7.25 |
| RNB2-6S | 1/4 | 6.5 | 9.5 | 20.5 | 10 |
| RNB2-6 | 1/4 | 6.5 | 12 | 21.8 | 11 |
| RNB2-8 | 5/16 | 8.4 | 12 | 21.8 | 11 |
| RNB2-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 |
| RNB2-12 | 1/2 | 13 | 19.2 | 30.4 | 16 |
| Non-Insulating quality RNB Ring connector terminal |
| Cross-Section of wire:2.5-4(mm²) | A.W.G(14-12) | Imax=37A | Standard thickness:copper 1.0mm |
| ITEM NO | American Bolt NO | DIMENSION | d |
| d2 | B | L | F | E | D |
| mm | mm | mm | mm | mm | mm |
| RNB3.5-4 | #8 | 4.3 | 8 | 18 | 7.7 | 6 | 5 | 3 |
| RNB3.5-5S | #10 | 5.3 | 8 | 18 | 7.7 |
| RNB3.5-6 | 1/4 | 6.5 | 12 | 21.4 | 7.7 |
| RNB3.5-8 | 5/16 | 8.4 | 15 | 27.5 | 13.8 |
| RNB3.5-10 | 3/8 | 10.5 | 15 | 27.5 | 13.8 |
| Non-Insulating quality RNB Ring connector terminal |
| Cross-Section of wire:4-6(mm²) | A.W.G(12-10) | Imax=48A | Standard thickness:copper 1.0mm |
| ITEM NO. | American Bolt NO | DIMENSION | d |
| d2 | B | L | F | E | D |
| mm | mm | mm | mm | mm | mm |
| RNB5.5-3.5 | #6 | 3.7 | 7.2 | 15.7 | 5.9 | 6.8 | 5.6 | 3.4 |
| RNB5.5-4S | #8 | 4.3 | 7.2 | 15.7 | 5.9 |
| RNB5.5-4L | #8 | 4.3 | 9.5 | 19.8 | 8.3 |
| RNB5.5-5 | #10 | 5.3 | 9.5 | 19.8 | 8.3 |
| RNB5.5-6 | 1/4 | 6.5 | 12 | 23 | 11 |
| RNB5.5-8 | 5/16 | 8.4 | 15 | 28 | 13.7 |
| RNB5.5-10 | 3/8 | 10.5 | 15 | 28 | 13.7 |
| RNB5.5-12 | 1/2 | 13 | 19.2 | 32.4 | 16 |
| Non-Insulating quality RNB Ring connector terminal |
| Cross-Section of wire:6-10(mm²) | A.W.G(8) | Imax=62A | Standard thickness:copper 1.2mm |
| ITEM NO | American Bolt NO | DIMENSION | d |
| d2 | B | L | F | E | D |
| mm | mm | mm | mm | mm | mm |
| RNBS8-4 | #8 | 4.3 | 8.8 | 23.8 | 10.9 | 8.5 | 7.2 | 4.5 |
| RNBL8-4 | #8 | 4.3 | 12 | 23.8 | 9.3 |
| RNB8-5S | #10 | 5.3 | 8.8 | 23.8 | 10.9 |
| RNB8-5M | #10 | 5.3 | 12 | 23.8 | 9.3 |
| RNB8-5L | #10 | 5.3 | 15 | 29.8 | 13.8 |
| RNB8-6S | 1/4 | 6.5 | 12 | 23.8 | 9.3 |
| RNB8-6L | 1/4 | 6.5 | 15 | 29.8 | 13.8 |
| RNB8-8 | 5/16 | 8.4 | 15 | 29.8 | 13.8 |
| RNB8-10 | 3/8 | 10.5 | 15 | 29.8 | 13.8 |
| RNB8-12 | 1/2 | 13 | 20 | 33.5 | 15 |
| Non-Insulating quality RNB Ring connector terminal |
| Cross-Section of wire:10-16(mm²) | A.W.G(6) | Imax=88A | Standard thickness:copper 1.5mm |
| ITEM NO | American Bolt NO | DIMENSION | d |
| d2 | B | L | F | E | D |
| mm | mm | mm | mm | mm | mm |
| RNB14-4 | #8 | 4.3 | 12 | 29.8 | 13.3 | 10.5 | 9 | 5.8 |
| RNB14-5 | #10 | 5.3 | 12 | 29.8 | 13.3 |
| RNBS14-6 | 1/4 | 6.5 | 12 | 29.8 | 13.3 |
| RNBL14-6 | 1/4 | 6.5 | 16 | 32.8 | 14 |
| RNB14-8 | 5/16 | 8.4 | 16 | 32.8 | 14 |
| RNB14-10 | 3/8 | 10.5 | 16 | 32.8 | 14 |
| RNB14-12 | 1/2 | 13 | 22 | 41 | 19.5 |
| Non-Insulating quality RNB Ring connector terminal |
| Cross-Section of wire:16-25(mm²) | A.W.G(4) | Imax=115A | Standard thickness:copper 1.7mm |
| ITEM NO | American Bolt NO | DIMENSION | d |
| d2 | B | L | F | E | D |
| mm | mm | mm | mm | mm | mm |
| RNBS22-5 | #10 | 5.3 | 12.2 | 33.2 | 14.5 | 12 | 11.5 | 7.7 |
| RNBL22-5 | #10 | 5.3 | 16.5 | 33.7 | 13.5 |
| RNBS22-6 | 1/4 | 6.5 | 12.2 | 33.2 | 14.5 |
| RNBL22-6 | 1/4 | 6.5 | 16.5 | 33.7 | 13.5 |
| RNB22-8 | 5/16 | 8.4 | 16.5 | 33.7 | 13.5 |
| RNB22-10 | 3/8 | 10.5 | 16.5 | 33.7 | 13.5 |
| RNB22-11 | 7/16 | 11.5 | 22 | 42.5 | 19.5 |
| RNB22-12 | 1/2 | 13 | 22 | 42.5 | 19.5 |
| Non-Insulating quality RNB Ring connector terminal |
| Cross-Section of wire:35-50(mm²) | A.W.G(2) | Imax=160A | Standard thickness:copper 1.8mm |
| ITEM NO | American Bolt NO | DIMENSION | d |
| d2 | B | L | F | E | D |
| mm | mm | mm | mm | mm | mm |
| RNB38-5 | #10 | 5.3 | 15.3 | 39 | 17.35 | 14 | 13.3 | 9.4 |
| RNB38-6 | 1/4 | 6.5 | 15.3 | 39 | 17.35 |
| RNBS38-8 | 5/16 | 8.4 | 15.3 | 39 | 17.35 |
| RNBL38-8 | 5/16 | 8.4 | 22 | 42.7 | 17.7 |
| RNBS38-10 | 3/8 | 10.5 | 15.3 | 39 | 17.35 |
| RNBL38-10 | 3/8 | 10.5 | 22 | 42.7 | 17.7 |
| RNB38-11 | 7/16 | 11.5 | 22 | 42.7 | 17.7 |
| RNB38-12 | 1/2 | 13 | 22 | 42.7 | 17.7 |
PRODUCT NAME |
male female wire connector terminal tinned copper ring terminal wire end terminals |
Specification: |
According to the costomer picture,item NO. or picture |
Certification: |
ISO9001,TS16949,ROHS,3C,SGS,UL and the latest REACH |
Inspections: |
100% tested before delivery. |
Delivery: |
The stock goods will be delivered within 1-2 days,and the customized goods will be delivered within 7days as soon as we received the payment. |
Sample: |
Free |
MOQ: |
Most product not have MOQ,the common connectos are in stock |
Terms of trade: |
EXW,FOB,CIF,CFR and so on. |
Payment Terms: |
T/T in advance,Western Union,Paypal,L/C etc.If the amount more than 5000USD,we can do 30% T/T deposit,70%T/T deposit before shipment and blance against shipment. |
Application: |
Widely used in household appliances,automotive,cameras,
telecommunication equpment,computer,controllers,alarm security,appliance instuments and fields |
Serivce: |
ODM/OEM |
