Soft Ferrite Iron Dust Core

Name: Soft Ferrite Iron Dust Core
Brand: all-electronics-online.com
SKU: 699534865
Availability: InStock
Rating: 4.9 (134 reviews)

Price:	US $ 0.05-6/Piece
Trade Terms:	FOB
Min Order:	4000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	yx
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Composition:	Permanent
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description

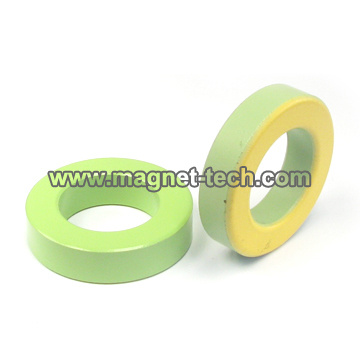

Soft Ferrite Iron Dust Core
General Description
Iron powder cores/iron dust cores may come in numerous sizes and configuration, each of which is available in different materials. However the toroidal cores are the most efficient configurations due to its highly shelf-shielding characteristic. Iron powder toroidal core is seldem necessary to shield a toroidal inductor as most of the flux lines are contained within the core

Features:
1. The maximum operating temperature of toroidal cores is 150oC.
2. The toroidal cores are coated with epoxy resin with minimum 500V AC breakdown.
3. The toroidal shape provides good magnetic flux coupling and low stray flux leakage,
4. The height of the toroidal shape (also referred as "thickness") is easy to vary and requires no tooling changes

Applications:
This toroids products offer a simple, compact solution for making inductors, coupled inductors and transformers. RF circuits, EC power supply chokes, motors dimmer control filters.
For more detail info, please feel free to visit our website or inquire us at any of your convenience

Characteristics/ Material	35	55	75	22	33	60	75a
Permeability μ	35	55	75	22	33	60	75
Temp. Coef. of Perm(+ppm/° c)	250	360	825	410	600	950	650

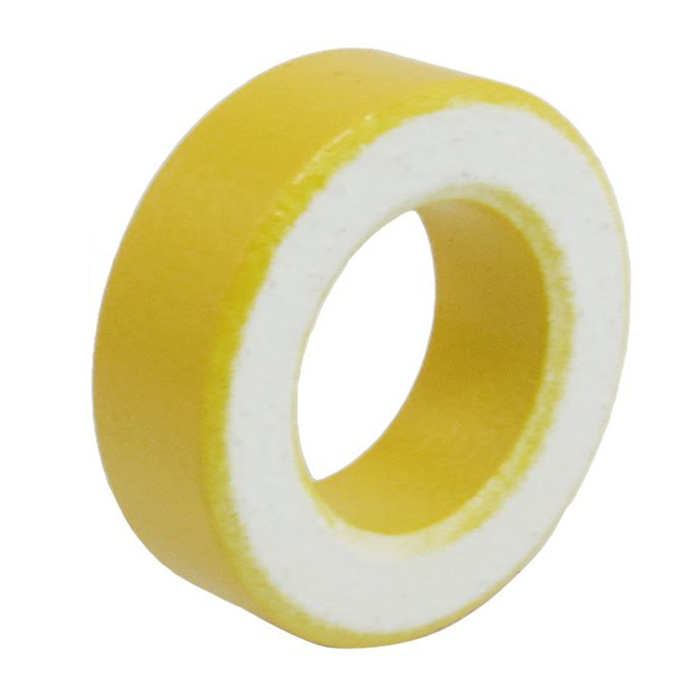

Color core	Yellow/red	Green/red	Yellow/white	Gray/green	Gray/yellow	Green/yellow	Green/blue

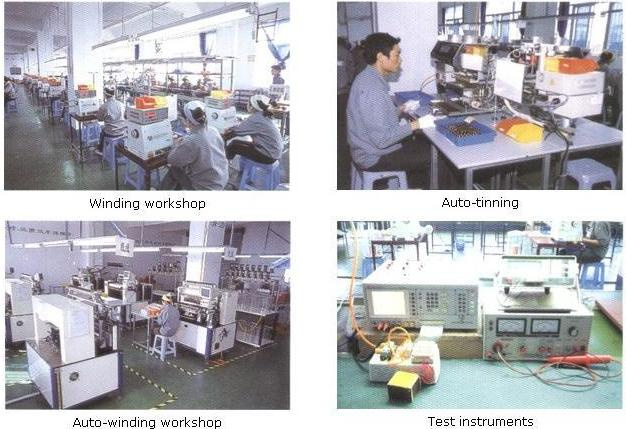

Xiamen Yuxiang Magnetic Materials Ind. Co., Ltd. is located in the beautiful coast of southeast sea. Established in 1997, we are an export-oriented enterprise. Now our company becomes an enterprise with advanced technology, owning two factories in China, both of which have their own R&D and QC departments, and are ISO9001: 2000 certified. We also have an office in Xiamen to provide you with prompt export support.

We are moving ahead with the aim of producing more advanced, more practical, and more competitively-priced products. We keep close track with the ever-changing trends in the industry, with the objective of spearheading our company in the market. We have an ambitious outlook towards expansion, and operate our business with diligence and sincerity. Our more than 20 years of technical know-how and experience have been keeping us ahead in the industry. We have been in the OEM business for five years and are ready for your orders and special requirements.

We supply hard magnets and magnetic materials from China. Our magnets include ferrite magnets, flexible magnets, NdFeB magnets, AlNiCo magnets, SmCo magnets, rubber magnets, refrigerator fridge magnets, magnetic powder, magnetic compound tesla meters & magnetizers, and magnetic jewelry. We also supply ferrite cores, MnZn cores and NiZn cores for transformers and coils, loudspeaker magnets, motor magnets, and refrigerator gasket stripes.
