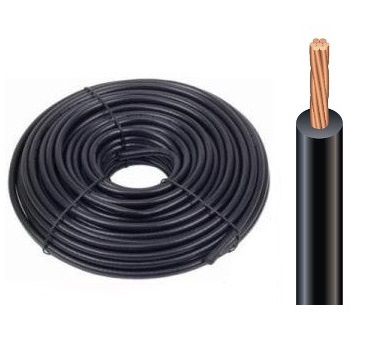

Solar Cable for Solar System Connection and Installation

Name: Solar Cable for Solar System Connection and Installation
Brand: all-electronics-online.com
SKU: 699664342
Availability: InStock
Rating: 4.3 (96 reviews)

Price:	US $ 0.50-0.57/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FCY-005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	4mm2

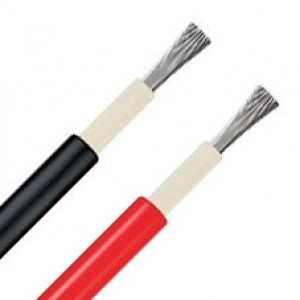

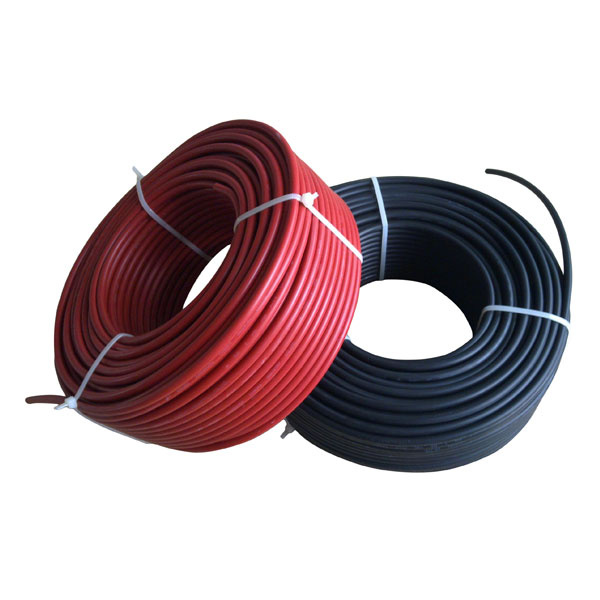

Color:	Red/Black
MOQ:	500m
Current:	30A
Voltage:	1000V
OEM:	Available
Type:	Insulated
Conductor Type:	Solid
Conductor Material:	Copper
Insulation Material:	Rubber
Certification:	VDE
Brand:	Fg

Product Description

TUV & UL Approval
Conductor: Stranded tinnet copper
Insulation: halogen free crosslinked polyolefin
sheath: halogen free crosslinked polyolefin
Nominal Cross-Section: 2.5mm2
Rated temperature: -40~+90ºC
Rated Voltage: DC:1.8kv --AC:0.6/1kv
finished cable O.D. :5.35±0.1mm conductor resistance(20ºC):≤8..21Ω/km
Rated Current: 25~32A
Weathering Resistance: UV
Burning Behaviour: (IEC60332-1,UL1581 VW-1)
No of core:1
solar cable 2.5mm2 ---AWG 14

Product Description

Our Photovoltaic cable is made from halogen free and low smoke electron-beam cross-linked compounds. It has high heat resistance, ozone resistance, uv resistance, resistance to water vapor, antimicrobial, short-time overload ability, long service life, wear-resisting, oil resistance, anti-corrosion, high tensile resistance, etc, and can be widely used in solar power, photovoltaic systems and other fields.

1. Construction: Tinned cooper, XLPE insulation, XLPE outer sheath.
2. Test Voltage: 6500V, 5min; rated voltage:1000/1800V DC.
3. Halogen free and low smoke, Rohs standard.
4. UV resistance.
5. Temperature rating:-40°C to 125°C, cold resisatnce.
6. UL and TUV certification, TUV2Pfg1169-1.
7. Power cable for photovotaic system.

Techniuque Specification

Nominal Volvatage: Uo/U=600/1000VAC, 1000/1800VDC.
Test Voltage: 6500V ,50HZ ,5Min.
Temperature Rating: -45ºC upto +125ºC; -40ºF upto +257ºF.
Ambient temperature: -40ºC upto +90ºC; -40ºF upto +194ºF.
Max.Short circuit temperature: 280ºC, +536ºF.
Bending Radius: Fixed installation>4X; Occasionally moved>5X.

TUV & UL Approval Conductor: Stranded tinnet copper Insulation: halogen free crosslinked polyolefin sheath: halogen free crosslinked polyolefin Nominal Cross-Section: 4mm2 Rated temperature: -40~+90ºC Rated Voltage: DC:1.8kv --AC:0.6/1kv finished cable O.D. :6.2±0.1mm conductor resistance(20ºC):≤5.09Ω/km Rated Current: 25~32A Weathering Resistance: UV Burning Behaviour: (IEC60332-1,UL1581 VW-1) No of core:1 No of core:1 solar cable 4.0mm2---AWG 12
