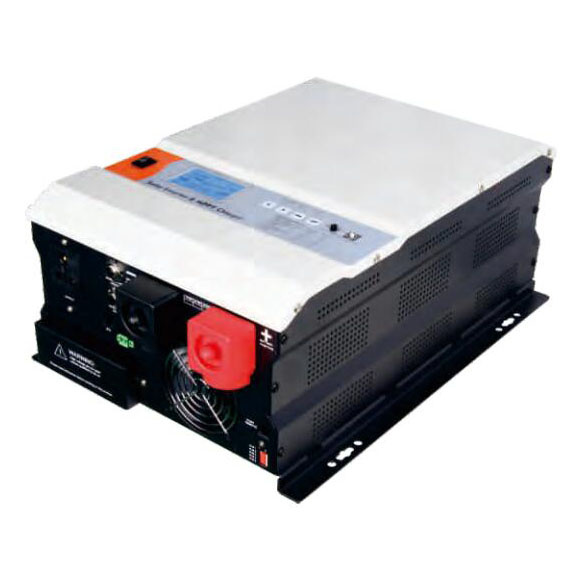

Solar Inverter off Grid, Low Frequency Pure Sine Wave

Prod Model:	WSP6112C1

Product Description

solar inverter Off grid,Low frequency pure sine wave
Wall mounted integrated solar power inverter system
1.Pure sine wave output
2.built-in MPPT solar charge controller
3.Low frequency design
4.Function setting DIP switch terminal
5.Output power factor is 0.9-1 and output socket can choose
6.Well accept generator's output and auto generator start terminal
7.Full automatical and silent operation
8.Automatically transfer between battery and line modes
9.Microprocessor control guarantees high reliability
10.Remote control and BTS function terminal
11.Four-steps intelligent charging control to recharging time
12.Bypass function with AVR function(optional)
13.The charging current is big up to 85Amp, can be setting through front panel
14.Mains/solar output priority level for the customer to choose
15.Mains/solar/mains&solar charging three mode of priorities for the customer to choose.
16.Battery type can choose through front panel

full protection:
Protection for low battery voltage,over load,output short circuit and over-temperature restrain surge interference,eliminate noise, protection for thunder striking, provide the reliable power to the home appliances.

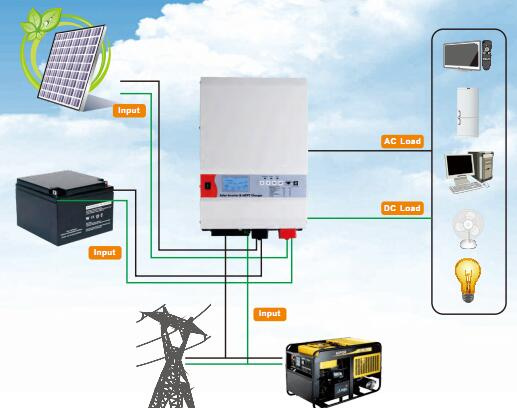

Applications:
Supply the reliable long back up time power for the home appliances and office appliances solar power system etc.

Specification
Model		6112C 1-10KVA
		1000W	1500W	2000W	3000W	4000W	5000W	6000W	8000W	10000W
Input Wave form		Sine wave (utility or generator)
Nominal voltgae		120VAC(option)    230VAC							220/230/240VAC
Low voltave re trip		90V±4% & 184V/154V±4%							154V
Low voltage re engage		100V±4% & 194V/164V±4%							164V
High voltage re trip		140V±4% & 253V±4%							273V%
Nominal Input Frequency		50Hz/60Hz(Auto detection)
Low freq trip		47Hz for 50Hz,57Hz for 60Hz							40Hz
High freq trip		55Hz for 50Hz,65Hz for 60Hz							80Hz
Output wave form		(Bypass mode)same as input
Over-Load protection		Circuit breaker							Yes
Short circuit protection		Circuit breaker							Yes
Efficiency on line transfer mode		95%+
Line transfer time		10ms Typical
Bypass without battery connected		Yes
Inverter specification/output
Output wave form		Pure sine wave
Output continous power watts		1000	1500	2000	3000	4000	5000	6000	8000	10000
Output continous power VA		1000	1500	2000	3000	4000	5000	6000	8000	10000
Power factor		0.9-1.0
Nominal output voltage rms		120VAC(option)    230VAC							230VAC
Output Voltage regulation		+/-10%rms
Output frequency		50Hz±0.3Hz or 60Hz±0.3Hz
Safety Certification		>88%
Short circuit protection		Yes,fault after 1 secs
Inverter specification/input
Nominal input voltage		12V/24V/48V
Minimum start voltage		10V/20V/40V
Low battery alarm		10.5V/21V/42V
Low battery trip		10V/20V/40V
High voltage alarm		16V/32V/64V
Charger mode specification
Output voltage		Dependent on battery type
Charge current		10-85A MAX							75A MAX	85A MAX
Battery initial voltage for start up		0-15.7V for 12V(*2 for 24V; *4 for 48V
Over charge protection		15.7V for 12V (*2 for 24V; *4 for 48V)
SOLAR CHARGER
MPPT Range @ Operating Voltage		15VDC~40VDC/15VDC~150VDC(optional) 25VDC~58VDC/25VDC~150VDC(optional)							60VDC~110VDC 60VDC~150VDC(optional)
Maximum PV Array Open		58VDC/150VDC(optional) 110VDC/150VDC(optional)							110VDC/150VDC(optional)
Maximum Charging current		40A/60A
Maximum Efficiency		>96%
Standby Power Consumption		2W
Standard: Conform to GB/IEC regulation:EMC:GB7260.2/IEC62040-2  GB/17626.2~5/IEC61000-4-2~5  SAFETY:GB4943
Note: Product specifications are subject to change without further notice.
