| Prod Model: |
C4C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gender: |
Male & Female |
| Inner Diameter: |
4.0mm |
| Insulation Material: |
PPO |
| Suitable Cable: |
2.5-6mm2 |
| Rated Current: |
30A |
| Color: |
Black |
| Material: |
Copper |
| Application: |
Solar Panels System |
| Type: |
Solar System Mc4 Connector |
| Production Process: |
Norm |
| Certification: |
TUV |
| Brand: |
Bangzhao or OEM |
Product Description

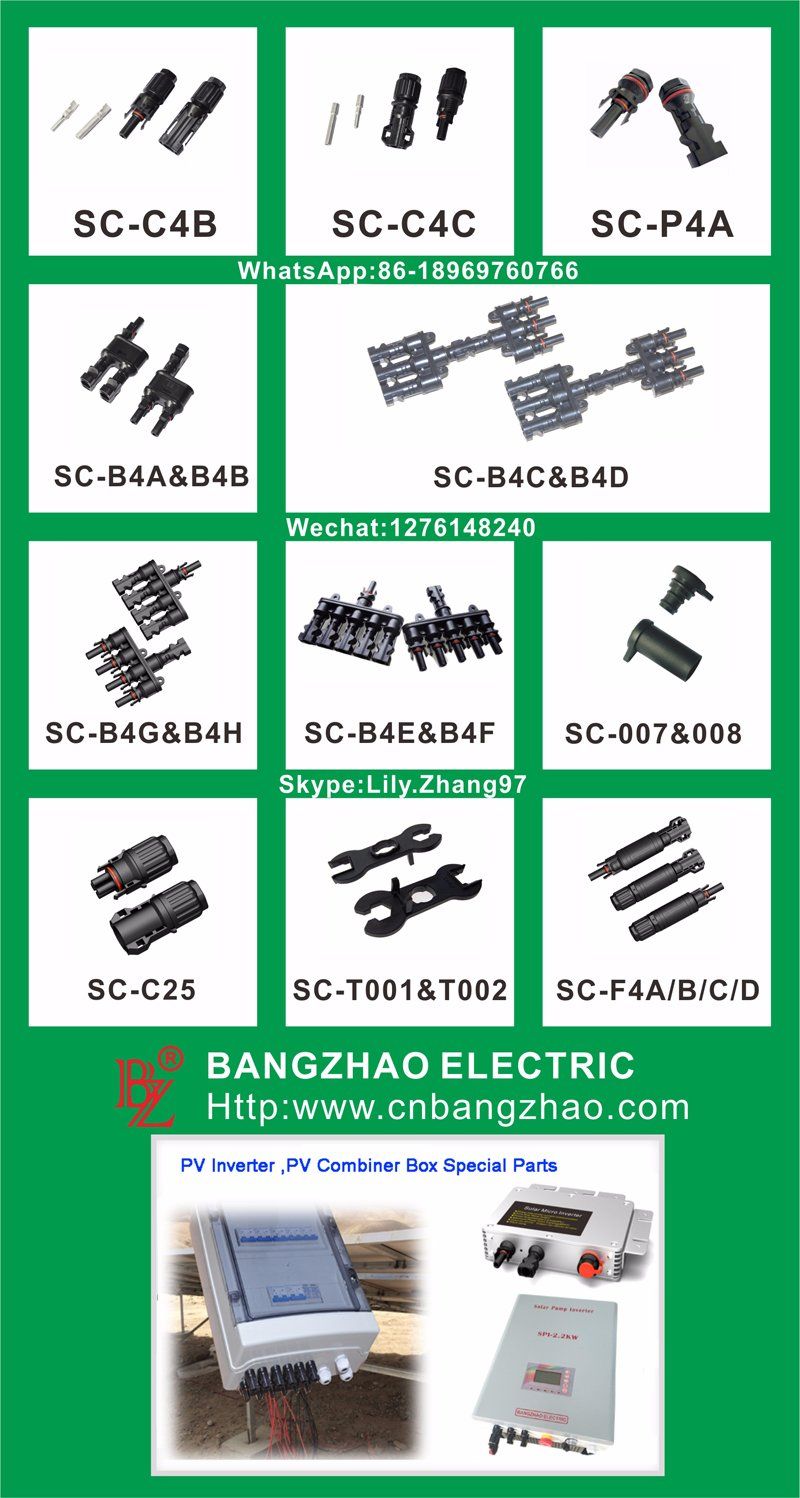

solar junction box MC4 connector for PV module
Specialty:
With the capacity of anti-aging and anti-ultraviolet radiation;
To meet the using requirements under bad outdoor conditions;
Can meet different specifications of the cable ,and accept customized length of cable according to the customers requests;
Cable connection using riveting and confining means;
Male and female first mating convenient, without the help of other tools;
Main parameter |
Rated current : 30A |
Insulationg material: PPO |
Ambient temperature range: -40~+90° C |
Flame class: UL94-V0 |
Safety class: II |
Shell Protection degree: IP67 |
Contact material: Copper,Tin Plated |
Test voltage: 6KV(TUV50Hz.1min) |
Insertion force: ≤ 50N |
Withdrawal force: ≥ 50N |
Contact resistence: 0.4mΩ |
Test voltage: 6000V(TUV50Hz,1min) |
Connecting System: Crimp connection |
Pin dimensions: Φ4.0mm |
For male connector:
20pcs/bag,200pcs/box,totally 6boxes/carton | totally 1200pcs/carton |
| Box measure:34*22*8.5cm | Carton Size: 480*350*280cm |
| Piece weight:0.023kg/pcs | N.W.:13.8KG/carton;G.W.:15.5KG/carton |
For female connector:
| 20pcs/bag,200pcs/box,totally 6boxes/carton | totally 1200pcs/carton |
| Box measure:34*22*8.5cm | Carton Size: 480*350*280cm |
| Piece weight:0.023kg/pcs | N.W.:13.8KG/carton;G.W.:15.5KG/carton |
Remarks:
Accepts OEM. We also can design the cable according to your instructions, the color, specifications, length of our cables and connectors can be customized by the customers;
We can provide the cables as well as connectors linked with the cable;
We adpot select raw-materials, our products are in high quality, competitive prices, prompt delivery;
1.Quality:
l Bangzhao sends all the items with outgoing quality inspection report.
l We guarantee 100% good quality when the products are sent out of factory.
2.Shipping:
l Bangzhao ship to world wide;
l We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most countries within 7 days.
3.Return Policy:
l Once we shipped the products,our after-sale service will send you the tracking number;
l If your item is not as described or faulty when you receive it,we will replace it for you with no additional charge.
l If the item is found non-defective,the item will be sent back to the buyer at buyer's expense.
