| Prod Model: |
LS 2000H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max.Recommended PV Power: |
2100W |
| Max.PV Power Of Per MPPT: |
2100W |
| Max.DC Voltage: |
450V |
| Start Voltage: |
80V |
| PV Voltage Range: |
60-450V |
| Max. Input Current: |
10.5A |
| Rated AC Output Power: |
2000W |
| Max. Output Current: |
10.0A |
| AC Grid Connection Type: |
Single Phase |
| AC Grid Frequency;Range: |
50Hz,60Hz;±5Hz |

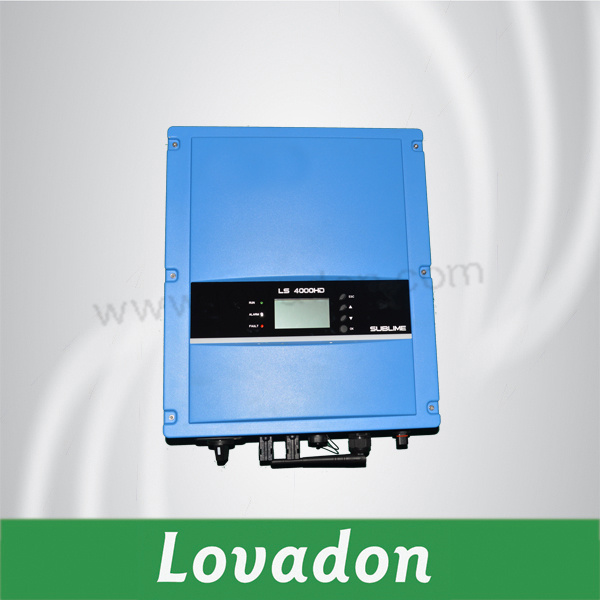

Product Description
Inverter
Internal DC switch for added safety protection
power factor continuously adjustable
| Datasheet | LS 3000H | LS 3600H | LS 5000H | LS 1000H | LS 1500H | LS 2000H | LS 3000HD | LS 4000 HD | LS 5000HD |
| INPUT DATA(DC) | | | | | | | | | |
| Max.recommended PV power | 3150W | 3780W | 5260W | 1100W | 1580W | 2100W | 3150W | 4200W | 5250W |
| Max.PV power of per MPPT | 3150W | 3780W | 5260W | 1100W | 1580W | 2100W | 1800W | 2400W | 3000W |
| Max.DC voltage | 500V | 500V | 500V | 450V | 450V | 450V | 500V | 500V | 500V |
| Start voltage | 100V | 100V | 100V | 80V | 80V | 80V | 100V | 100V | 100V |
| PV voltage range | 70-500V | 70-500V | 70-500V | 60-450V | 60-450V | 60-450V | 70-500V | 70-500V | 70-500V |
| MPP work voltage range/nominal voltage | 100-500V/360V | 100-500V/360V | 100-500V/360V | 70-450V/180V | 70-450V/250V | 70-450V/250V | 100-500V/360V | 100-500V/360V | 100-500V/360V |
| Full load dc voltage range | 150-450V | 180-450V | 230-450V | 110-400V | 150-400V | 200-400V | 150-450V | 200-450V | 230-450V |
| Max. input current | 21.0A | 21.0A | 22.9A | 10.0A | 10.5A | 10.5A | 21.0A | 21.0A | 22.8A |
Max. input current per string of
tracker A/ tracker B | 21.0A | 21.0A | 22.9A | 10.0A | 10.5A | 10.5A | 12.0A/12.0A | 12.0A/12.0A | 13.0A/13.0A |
Number of independent MPP trackers/
strings per MPP tracker | 1/2 | 1/2 | 1/2 | 1/1 | 1/1 | 1/1 | 2/2 | 2/2 | 2/2 |
| OUTPUT(AC) | | | | | | | | | |
| Rated AC output power | 3000W | 3600W | 4960W | 1000W | 1500W | 2000W | 3000W | 4000W | 4960W |
| Max. AC apparent power | 3000VA | 3600VA | 5000VA | 1000VA | 1500VA | 2000VA | 3000VA | 4000VA | 5000VA |
| Max. output current | 15.0A | 18.0A | 25.0A | 5.0A | 7.5A | 10.0A | 15.0A | 20.0A | 25.0A |
| AC nominal voltage;range | 220V/230V/240V 180-280VAC | 220V/230V/240V 180-280VAC | 220V/230V/240V 180-280VAC | 220V/230V/240V 180-280VAC | 220V/230V/240V 180-280VAC | 220V/230V/240V 180-280VAC | 220V/230V/240V 180-280VAC | 220V/230V/240V 180-280VAC | 220V/230V/240V 180-280VAC |
| AC grid frequency;range | 50HZ,60HZ;±5Hz | 50HZ,60HZ;±5Hz | 50HZ,60HZ;±5Hz | 50HZ,60HZ;±5Hz | 50HZ,60HZ;±5Hz | 50HZ,60HZ;±5Hz | 50HZ,60HZ;±5Hz | 50HZ,60HZ;±5Hz | 50HZ,60HZ;±5Hz |
| Power factor | 0.90 capacitive...0.90 inductive | 0.90 capacitive...0.90 inductive | 0.90 capacitive...0.90 inductive | 0.90 capacitive...0.90 inductive | 0.90 capacitive...0.90 inductive | 0.90 capacitive...0.90 inductive | 0.90 capacitive...0.90 inductive | 0.90 capacitive...0.90 inductive | 0.90 capacitive...0.90 inductive |
| THDI | less than 3%(at nominal output power) | less than 3%(at nominal output power) | less than 3%(at nominal output power) | less than 3%(at nominal output power) | less than 3%(at nominal output power) | less than 3%(at nominal output power) | less than 3%(at nominal output power) | less than 3%(at nominal output power) | less than 3%(at nominal output power) |
| AC grid connection type | Single phase | Single phase | Single phase | Single phase | Single phase | Single phase | Single phase | Single phase | Single phase |
| EFFICIENCY | | | | | | | | | |
| Max. efficiency | 97.50% | 97.50% | 97.60% | 97.00% | 97.20% | 97.20% | 97.80% | 97.80% | 97.80% |
| Euro-eta | 96.60% | 96.60% | 96.70% | 96.00% | 96.30% | 96.30% | 97.20% | 97.20% | 97.20% |
| MPPT efficiency | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% |
| PROTECTION DEVICES | | | | | | | | | |
| DC reverse polarity protection | yes | yes | yes | yes | yes | yes | yes | yes | yes |
| DC switch for each MPPT | opt | opt | opt | opt | opt | opt | opt | opt | opt |
| Output over current protection | yes | yes | yes | yes | yes | yes | yes | yes | yes |
| Output overvoltage protection-varistor | yes | yes | yes | yes | yes | yes | yes | yes | yes |
| Ground fault monitoring | yes | yes | yes | yes | yes | yes | yes | yes | yes |
| Grid monitoring | yes | yes | yes | yes | yes | yes | yes | yes | yes |
Integrated all-pole sensitive Leakage
current monitoring unit | yes | yes | yes | yes | yes | yes | yes | yes | yes |
| GENERAL DATA | | | | | | | | | |
| Dimensions(W/H/D) | 355*320*170mm | 355*320*170mm | 355*405*170mm | 355*280*170mm | 355*280*170mm | 355*280*170mm | 355*405*170mm | 355*405*170mm | 355*405*170mm |
| Weight | 12KG | 12KG | 17KG | 9KG | 10KG | 10KG | 16KG | 16.5KG | 16.5KG |
| Operating temperature range | -25ºC to +60ºC | -25ºC to +60ºC | -25ºC to +60ºC | -25ºC to +60ºC | -25ºC to +60ºC | -25ºC to +60ºC | -25ºC to +60ºC | -25ºC to +60ºC | -25ºC to +60ºC |
| Noise emission(typical) | 25dB(A) | 25dB(A) | 25dB(A) | 25dB(A) | 25dB(A) | 25dB(A) | 25dB(A) | 25dB(A) | 25dB(A) |
| Altitude | 2000m without derating | 2000m without derating | 2000m without derating | 2000m without derating | 2000m without derating | 2000m without derating | 2000m without derating | 2000m without derating | 2000m without derating |
| Self-consumption(night) | less than 0.5W | less than 0.5W | less than 0.5W | less than 0.5W | less than 0.5W | less than 0.5W | less than 0.5W | less than 0.5W | less than 0.5W |
| Topology | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless |
| Cooling concept | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
| Environmental Protecyion Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Relative Humidity | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% | 100% |
| FEATURES | | | | | | | | | |
| DC connection | H4/MC4 | H4/MC4 | H4/MC4 | H4/MC4 | H4/MC4 | H4/MC4 | H4/MC4 | H4/MC4 | H4/MC4 |
| AC connection | Connector | Connector | Connector | Connector | Connector | Connector | Connector | Connector | Connector |
| Display | LCD,LED | LCD,LED | LCD,LED | LCD,LED | LCD,LED | LCD,LED | LCD,LED | LCD,LED | LCD,LED |
| Interfaces:USB/Wi-Fi/RS485/GPRS | yes/yes/opt/opt | yes/yes/opt/opt | yes/yes/opt/opt | yes/yes/opt/opt | yes/yes/opt/opt | yes/yes/opt/opt | yes/yes/opt/opt | yes/yes/opt/opt | yes/yes/opt/opt |
| Warranty:5 years/10 years | yes/opt | yes/opt | yes/opt | yes/opt | yes/opt | yes/opt | yes/opt | yes/opt | yes/opt |
