Solar Power Pure Sine Wave Micro Inverter

Name: Solar Power Pure Sine Wave Micro Inverter
Brand: all-electronics-online.com
SKU: 819485105
Availability: InStock
Rating: 4.3 (21 reviews)

Price:	US $ 80/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HDX
Battery & Charger:	12VDC/24VDC
Protection:	Discharge, Overcharge, Overload, Over Temperature
Charging Current:	40AMP
Efficiency:	>80%
Transfer Time:	15ms Typical, 40ms Max.

Product Description

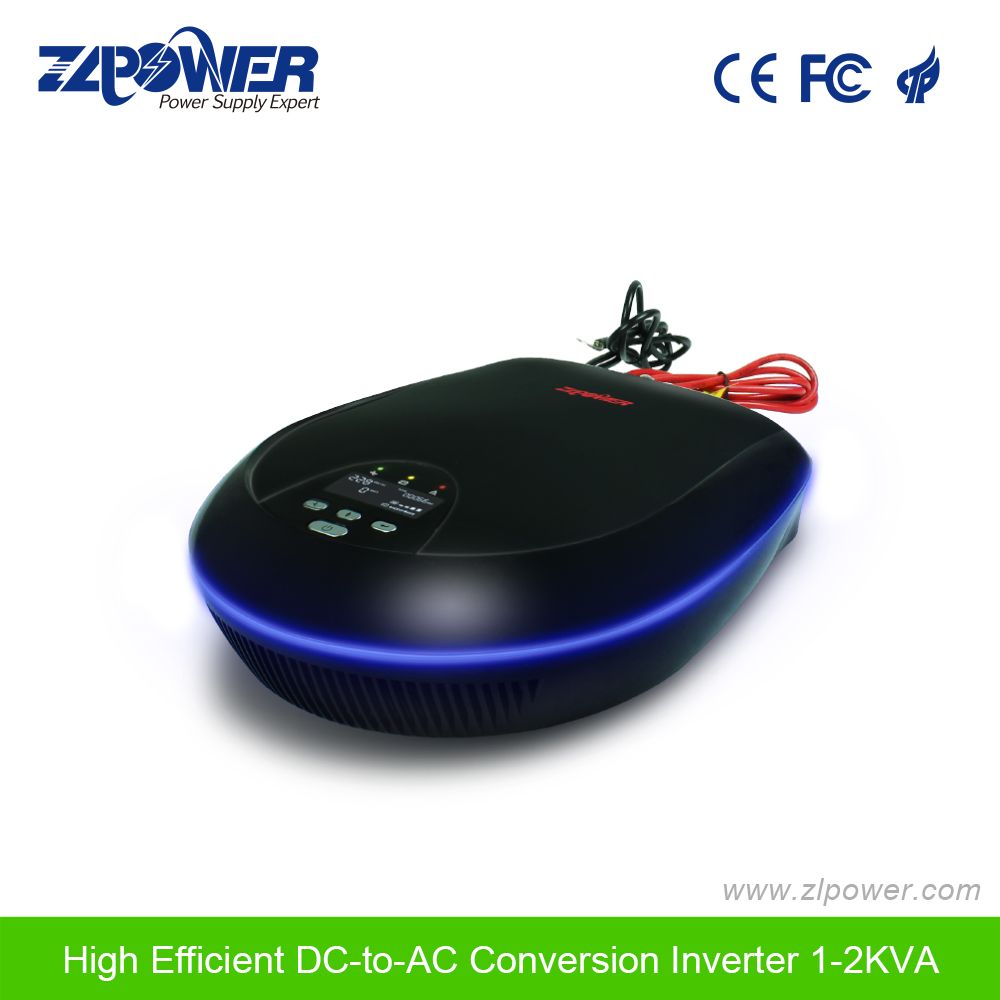

solar power pure sine wave micro inverter

♦Automatic line-to-battery switchover.
♦Configurable Input voltage ranges via LCD setting.
♦High efficient DC-to-AC conversion, minimizing energy loss.
♦Rack design & wall-mounted design for flexible installation.
♦Built-in enhanced charger.
♦Built-in solar charger controller up to 40A.
♦Intelligent 3-stage charger control for efficient charging and preventing overcharge.
♦Auto restart while AC recovery.
♦Multiple protection: low battery alarm, low battery shutdown, over charger protection, overload protection, over temperature protection, short circuit protection.
♦with the environmental temperature control charge management.

Specifications:

Model Parameters

HDX 1K-12

HDX 1.2K-12

HDX 2K-24

*1 Capacity

VA/W

1000VA/700W

1200VA/900W

2000VA/1500W

Battery & Charger

VDC

12VDC

24VDC

AC Input

Nominal input Voltage

220/230/240VAC

Voltage Range

90-280VAC (Wide Range);170-280VAC (Narrow Range)

AC Ouput

Output Voltage Waveform

Modified sine wave

Voltage

230VAC

Voltage Regulation (Batt.Mode)

10% / -18%

Frequency

50/60Hz(Adjustable);

Frequency Regulation (Bat. Mode)

±1HZ

Display Indicator

AC Mode

Display output power, output voltage

Battery Mode

The mark will flicker every 1second.

Battery Charging Mode

Display the Battery capacity

Fault

Display fault

Efficiency

AC to AC

>95%

DC to AC

>80%

Battery & Charger

Charger Current

20Amp

15Amp

Overcharge Protection

16V

32V

Transfer Time

Typical

15ms Typical, 40ms Max.

Solar Battery Charger

Max. Input Power

450W

900W

Charging Current

40Amp

Nominal Batery Voltage

12V

24V

Optimal Work Voltage Range

15V~18V

30V~36V

Max.PV Input Voltage

55V

Protection

Full Protection

Discharge, overcharge, overload, over temperature protection.

General
Specifications

Operating Temperature
Range

0- 50°C, 5%-90 % relative humidity (non-condensing)

Storage Environment

-15°C to 55°C, 5% to 95% humidity (non-condensing)

Noise Level

Less than 50dB

Dimension(L*W*H)

296.4*268.1*90.6mm

Net Weight(kg)

1.98kg

2.29kg

2.17kg
