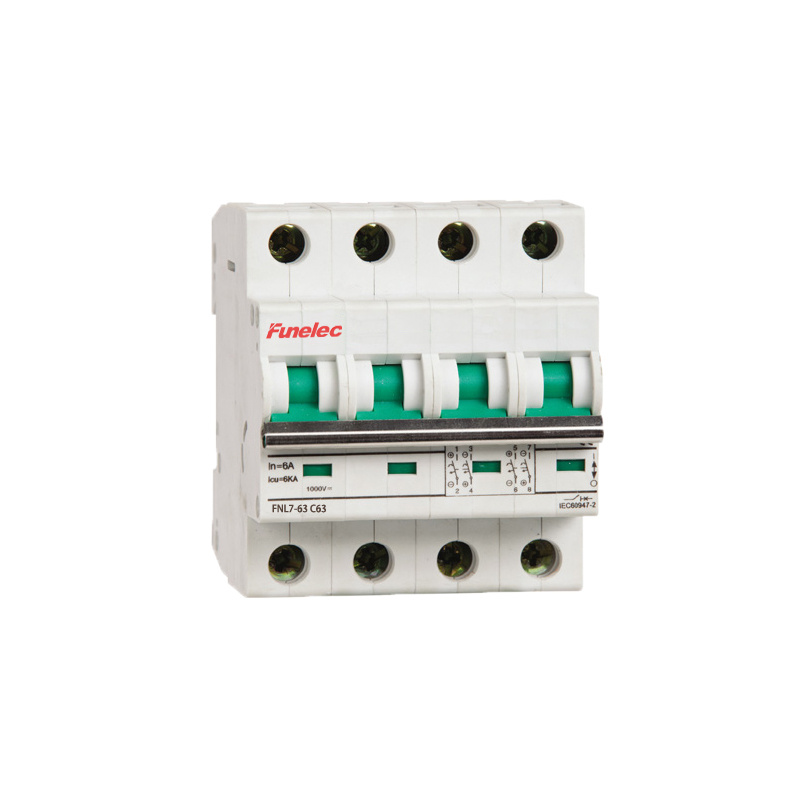

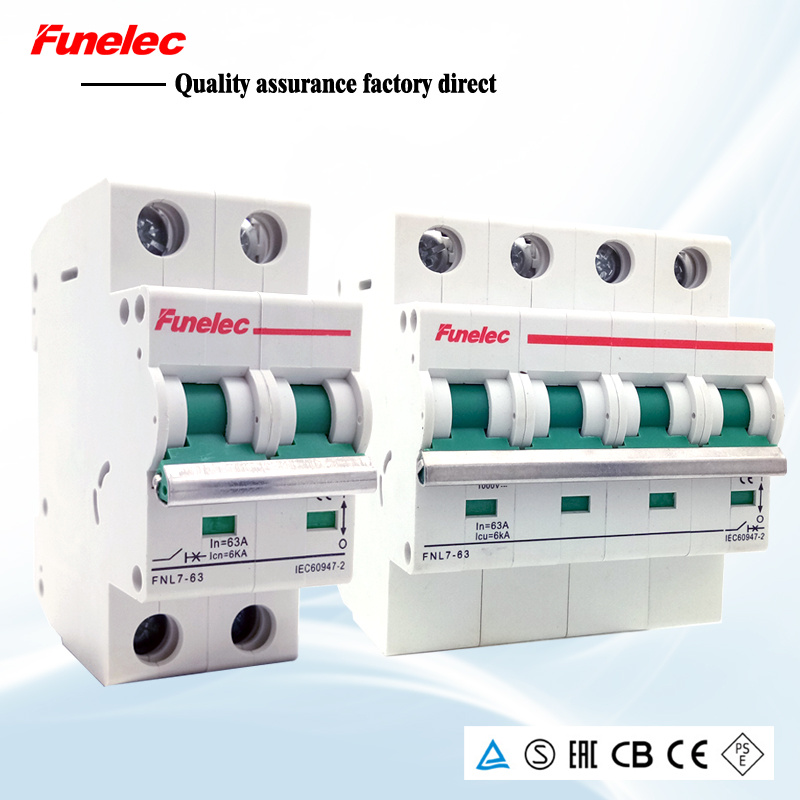

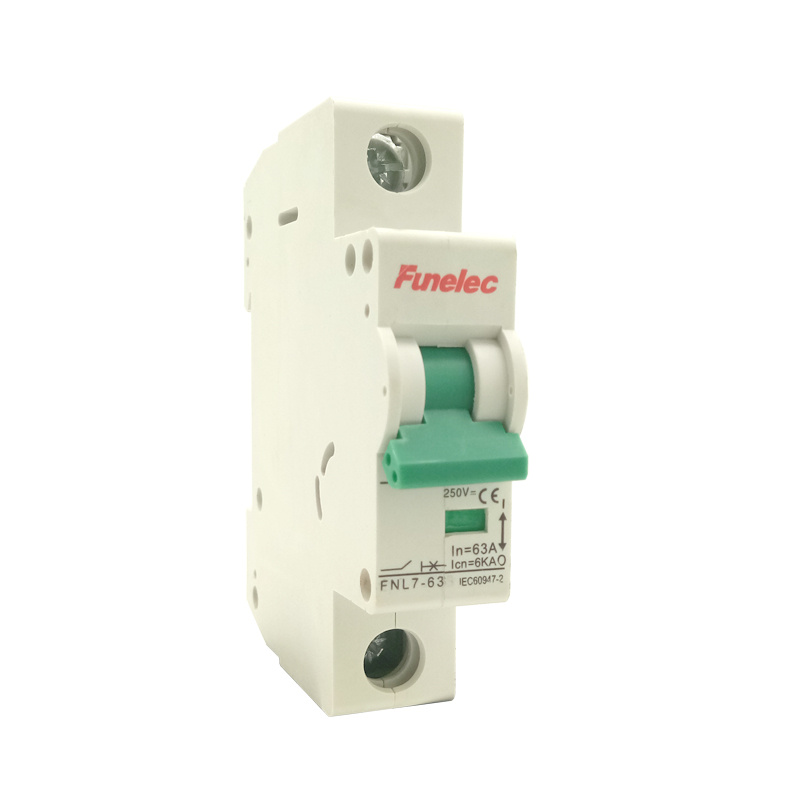

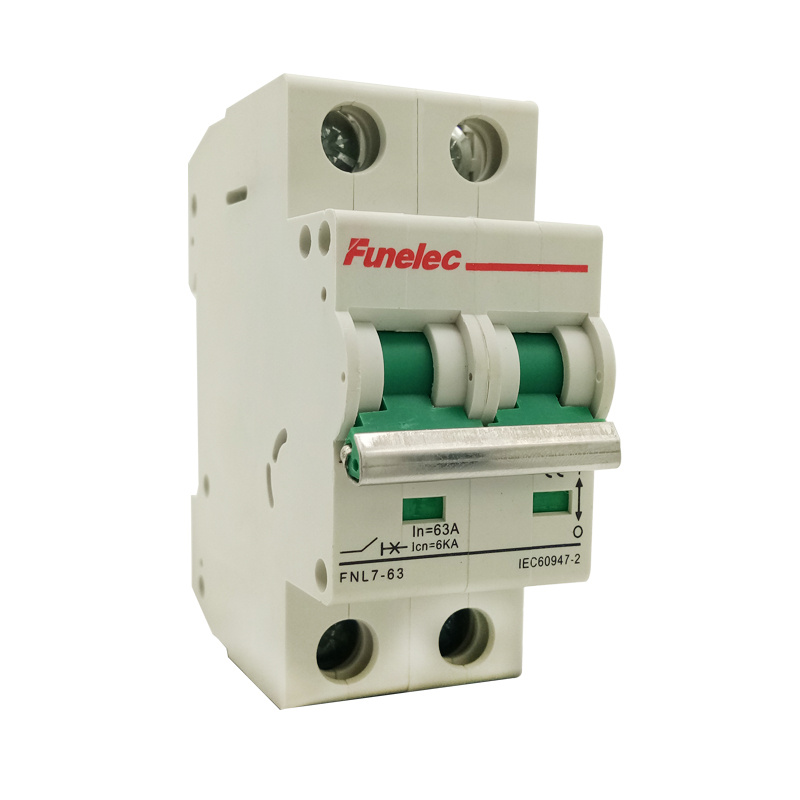

Solar PV System 250V 440V 500V 550V DC Breaker MCB
| Price: |
US $ 2.2-12/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
FNL7-63 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Poles Number: |
1 |
| Certification: |
CCC |
| Installation: |
DIN Rail |
Product Description
dc mcb Application:
FNL7-63 Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.
dc mcb Features:
1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic
| Standards | IEC 60947 |
| Poles | 1P/2P/3P / 4P |
| Magnetic tripping characteristics | C2 |
| Rated current(A) | 6 10 16 20 25 32,40,50,63A |
| Rated short-circuit capacity(Icn): | 6kA |
| Rated voltage | DC250V DC550V DC750V DC800V DC1000V DC1200V |
| Rated withstand voltage (Uimp): | 6kV |
| Rated insulation voltage(Ui): | 1000 |
| Contact position indication | Yes |
| Energy limiting class: | 3 |
| Electrical Life: | >2000 |
| Mechanical Life: | >1500 |
| Connection terminal: | Screw terminal |
| | Pillar terminal with clamp |
| Connection capacity: | 1~16mm |
| Installation: | Symmetrical DIN rail 35mm |
| | Panel mounting |
| Accessories: | OF: Auxiliary contact |
| | FB: Auxiliary alarm |
| | QY: under/over volage protector |
| | FL: Shunt release |
Packaging & Shipping:
1.Standard export box package
2.Delivery Time: 10-15 days for batch goods.
3.Shipment port:SHANGHAI/NINGBO
4.By Air or by Sea for batch goods,Airport/ Port receiving;
5.Customers specifying freight forwarders or negotiable shipping methods!
Our Services
1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems actively
Company Information
FAQ
Q: If I'm interested in your MCCB when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your MCCB seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our MCCB are high quality customized.I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is the quality of your product?
A:Of course!We also think sample order is the best way to build the trust.Please send the enquiry to us and get the sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Q:How's the warranty period for your MCCB?
A:We offer one year warranty for our customer.

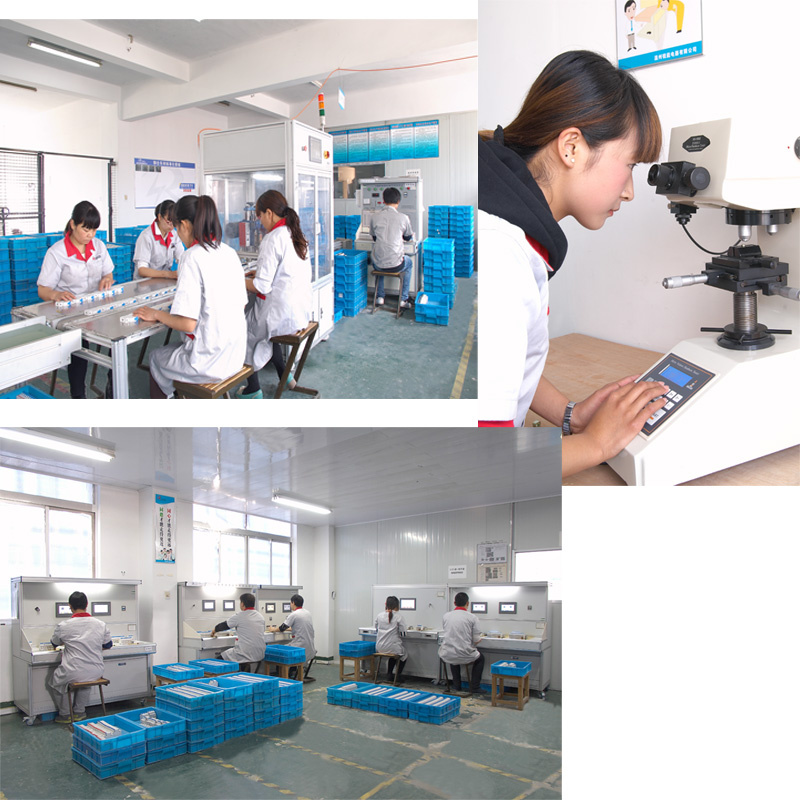

WenZhou Funelec Electrical Co., Ltd., which specializes in manufacturing series of breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business. It has 300 employees with an area of more than 3000 square meter.
The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, isolator. It consists of 9 series of products with over 60 types. Our products apply into high end of market in the world. With the safe product certificate of EU-CE, Sweden S, Finland F1, Poland B, Argentina IRAM&CB and the certificate of China CCC, ISO9001 International Quality Management System, the qualification of products reaches advanced world level, and the quality is accepted by high end of market. Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.
It covers worldwide markets, among them European as a leading market with many customers from top 500 enterprises. WenZhou Funelec Electrical Co., Ltd.
