Solid Copper Wire Thw Thwn Electrical Cable

Name: Solid Copper Wire Thw Thwn Electrical Cable
Brand: all-electronics-online.com
SKU: 794294835
Availability: InStock
Rating: 4.8 (105 reviews)

Price:	US $ 5/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	electrical cable
Product Name:	Solid Copper Wire Thw Thwn Electrical Cable
Voltage:	300/300V 300/500V 450/750V
Insulation Color:	Red, Black, Yellow, Blue, Green, Grey and So on
Standard:	IEC, UL, BS, VDE, AS/NZS or According to You.
Conductor Class:	Calss 1, Class2, Class 5, Class6
Type:	Insulated
Application:	House and Building
Insulation Material:	PVC
Certification:	CCC
Conductor Type:	Solid or Stranded
Conductor Material:	Copper or Aluminium or Aluminium Alloy
Sheath Material:	Nylon
Brand:	Rmjt

Product Description

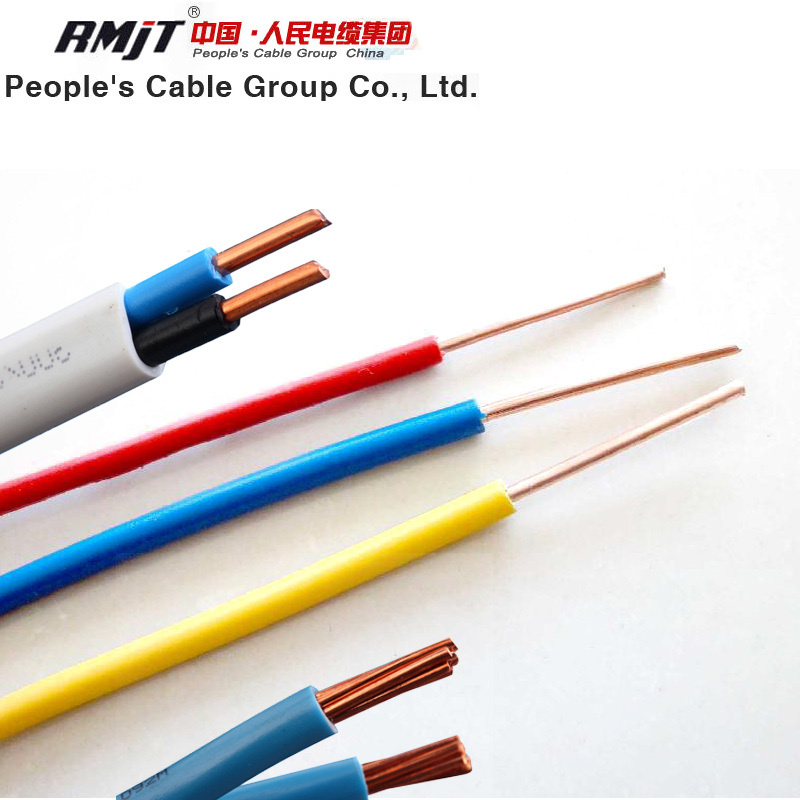

Solid Copper Wire Thw Thwn Electrical Cable

1.Application:
1Type TW THW THHN THWN TFF building wire is intended for general purpose applications as defined by the National Electrical Code (NEC)Type TW THW THHN THWN TFF is permitted for new construction or rewiring for 60volt applications. Applications requiring Type THHN or THWN2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.
Features:
Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG. All sizes are rated gasoline and oil-resistant II.
Jacket:
A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.
2.Standard:
UL-83, UL-1063, UL-758

3.Specification:

UL 83 UL 1581

AWG/MCM	mm2	Conductor			Insulation						Shealth			Total Weight
		Single Wire		OD.	PVC						Nylon
		No.	Dia.	OD.	thick			min	min	OD.	Thick mils	mm	OD.
			mm	mm	mil	mm	mm	mil	mm	mm	mil	mm	mm	kg/km
16	1.31	1	1.29	1.29	15	0.38	0.51	14	0.36	2.05	4	0.1	2.25	16.73
14	2.08	1	1.626	1.626	15	0.38	0.51	14	0.36	2.386	4	0.1	2.586	24.53
12	3.29	1	2.048	2.048	15	0.38	0.51	14	0.36	2.808	4	0.1	3.008	36.61
10	5.26	1	2.589	2.589	20	0.51	0.64	19	0.48	3.609	4	0.1	3.809	58
16	1.67	7	0.551	1.653	15	0.38	0.51	14	0.36	2.413	4	0.1	2.613	21.5
14	2.08	7	0.615	1.845	15	0.38	0.51	14	0.36	2.605	4	0.1	2.805	25.84
12	3.30	7	0.775	2.325	15	0.38	0.51	14	0.36	3.085	4	0.1	3.285	38.51
10	5.26	7	0.978	2.934	20	0.51	0.64	19	0.48	3.954	4	0.1	4.154	60.82
9	6.63	7	1.098	3.294	20	0.51	0.64	19	0.48	4.314	5	0.13	4.574	75.34
8	8.32	7	1.23	3.69	30	0.76	0.9	28	0.71	5.21	5	0.13	5.47	98.69
7	10.47	7	1.38	4.14	30	0.76	0.9	28	0.71	5.66	5	0.13	5.92	120.76
6	13.21	7	1.55	4.65	30	0.76	0.9	28	0.71	6.17	5	0.13	6.43	148.58
5	16.65	7	1.74	5.22	30	0.76	0.9	28	0.71	6.74	6	0.15	7.04	183.78
4	21.12	7	1.96	5.88	40	1.02	1.1	35	0.89	7.92	6	0.15	8.22	235.76
2	33.54	7	2.47	7.41	40	1.02	1.1	35	0.89	9.45	6	0.15	9.75	359.83
16	1.23	19	0.287	1.435	15	0.38	0.51	14	0.36	2.195	4	0.1	2.395	16.72
14	2.04	19	0.37	1.85	15	0.38	0.51	14	0.36	2.61	4	0.1	2.81	25.35
12	3.30	19	0.47	2.35	15	0.38	0.51	14	0.36	3.11	4	0.1	3.31	38.27
10	5.19	19	0.59	2.95	20	0.51	0.64	19	0.48	3.97	4	0.1	4.17	59.86
9	6.50	19	0.66	3.3	20	0.51	0.64	19	0.48	4.32	5	0.13	4.58	73.64
8	8.17	19	0.74	3.7	30	0.76	0.9	28	0.71	5.22	5	0.13	5.48	95.16
7	10.53	19	0.84	4.2	30	0.76	0.9	28	0.71	5.72	5	0.13	5.98	120.74
6	13.19	19	0.94	4.7	30	0.76	0.9	28	0.71	6.22	5	0.13	6.48	145.02
5	16.45	19	1.05	5.25	30	0.76	0.9	28	0.71	6.77	6	0.15	7.07	180.78
4	21.13	19	1.19	5.74	40	1.02	1.1	35	0.89	7.78	6	0.15	8.08	229.38
3	26.40	19	1.33	6.45	40	1.02	1.1	35	0.89	8.49	6	0.15	8.79	280.88
2	33.58	19	1.5	7.26	40	1.02	1.1	35	0.89	9.3	6	0.15	9.6	350.23
1	42.12	19	1.68	8.15	50	1.27	1.38	45	1.14	10.69	7	0.18	11.05	447.22
1/0	53.30	19	1.89	9.14	50	1.27	1.38	45	1.14	11.68	7	0.18	12.04	555.15
2/0	67.07	19	2.12	10.3	50	1.27	1.38	45	1.14	12.84	7	0.18	13.2	687.52
3/0	84.53	19	2.38	11.6	50	1.27	1.38	45	1.14	14.14	7	0.18	14.5	854.27
4/0	107.18	19	2.68	13	50	1.27	1.38	45	1.14	15.54	7	0.18	15.9	1068.65
250	125.72	37	2.08	14.2	60	1.52	1.67	55	1.4	17.24	8	0.2	17.64	1272.29
300	151.06	37	2.28	15.5	60	1.52	1.67	55	1.4	18.54	8	0.2	18.94	1512.81
350	177.29	37	2.47	16.8	60	1.52	1.67	55	1.4	19.84	8	0.2	20.24	1761.4
400	202.53	37	2.64	17.9	60	1.52	1.67	55	1.4	20.94	8	0.2	21.34	1999.42
500	252.89	37	2.95	19.7	60	1.52	1.67	55	1.4	22.74	8	0.2	23.14	2470.99
600	304.24	61	2.52	22	70	1.78	1.94	65	1.65	25.56	9	0.23	26.02	2998.91
650	328.87	61	2.62	22.9	70	1.78	1.94	65	1.65	26.46	9	0.23	26.92	3231.59
750	378.30	61	2.81	24.6	70	1.78	1.94	65	1.65	28.16	9	0.23	28.62	3697.59
1000	506.04	61	3.25	28.4	70	1.78	1.94	65	1.65	31.96	9	0.23	32.42	4896.32

4.Other UL specification:
TW THW

TW THW 600V 60ºC UL 83 UL 1581 Type TW and THW may be used for general purpose wiring for power and lighting, for insulation in air, conduit, duct or other recognized raceways, in wet or dry locations. Maximum voltage rating= 600 V



MAXIMUM CONDUCTOR TEMPERATURE
type	oil	wet	dry
TW	60ºC	60ºC	60ºC
THW	75ºC	75ºC	75ºC
MTW*	60ºC	60ºC	90ºC
* 1AWG AND LARGER ONLY

AWG/MCM	mm2	Conductor	Conductor			Insulation					Total Weight
		Type	Single Wire		OD.	PVC					kg/km
			No.	Dia.		Thick	mm	Thick	min	OD.
			No.	Dia.		mils	mm	Thick	min	OD.
18	0.82	solid	1	1.02	1.02	30	0.76	0.89	0.7	2.54	14.82
16	1.31	solid	1	1.29	1.29	30	0.76	0.89	0.7	2.81	20.27
14	2.09	solid	1	1.63	1.63	30	0.76	0.89	0.7	3.15	28.6
12	3.33	solid	1	2.06	2.06	30	0.76	0.89	0.7	3.58	41.48
10	5.27	solid	1	2.59	2.59	30	0.76	0.89	0.7	4.11	60.93
8	8.35	solid	1	3.26	3.26	45	1.14	1.22	1	5.54	98.99
6	13.33	solid	1	4.12	4.12	60	1.52	1.67	1.4	7.16	162.23
4	21.16	solid	1	5.19	5.19	60	1.52	1.67	1.4	8.23	240.34
18	0.82	B	7	0.386	1.158	30	0.76	0.89	0.7	2.678	15.65
16	1.31	B	7	0.488	1.464	30	0.76	0.89	0.7	2.984	21.43
14	2.08	B	7	0.615	1.845	30	0.76	0.89	0.7	3.365	30.1
12	3.30	B	7	0.775	2.325	30	0.76	0.89	0.7	3.845	43.38
10	5.26	B	7	0.978	2.934	30	0.76	0.89	0.7	4.454	64.02
8	8.32	B	7	1.23	3.69	45	1.14	1.22	1	5.97	103.92
6	13.21	B	7	1.55	4.65	60	1.52	1.67	1.4	7.69	169.62
4	21.12	B	7	1.96	5.88	60	1.52	1.67	1.4	8.92	252.44
2	33.54	B	7	2.47	7.41	60	1.52	1.67	1.4	10.45	379.53
1	42.62	B	19	1.69	8.18	80	2.03	2.11	1.8	12.24	480.75
1/0	53.30	B	19	1.89	9.19	80	2.03	2.11	1.8	13.25	586.71
2/0	67.70	B	19	2.13	10.34	80	2.03	2.11	1.8	14.4	727.52
3/0	85.24	B	19	2.39	11.61	80	2.03	2.11	1.8	15.67	897.84
4/0	107.18	B	19	2.68	13	80	1.52	1.67	1.4	16.44	1097.15
250	126.94	B	37	2.09	14.2	95	2.41	2.56	2.2	19.02	1340.08
300	152.39	B	37	2.29	15.54	95	2.41	2.56	2.2	20.36	1586.07
350	177.29	B	37	2.47	16.79	95	2.41	2.56	2.2	21.61	1825.98
400	202.53	B	37	2.64	17.96	95	2.41	2.56	2.2	22.78	2068.12
500	252.89	B	37	2.95	20.04	95	2.41	2.56	2.2	24.86	2548.31
600	304.24	B	61	2.52	22	110	2.79	2.89	2.5	27.58	3084.92
750	380.99	B	61	2.82	24.64	110	2.79	2.89	2.5	30.22	3816.9
1000	506.04	B	61	3.25	28.4	110	2.79	2.89	2.5	33.98	5002.6

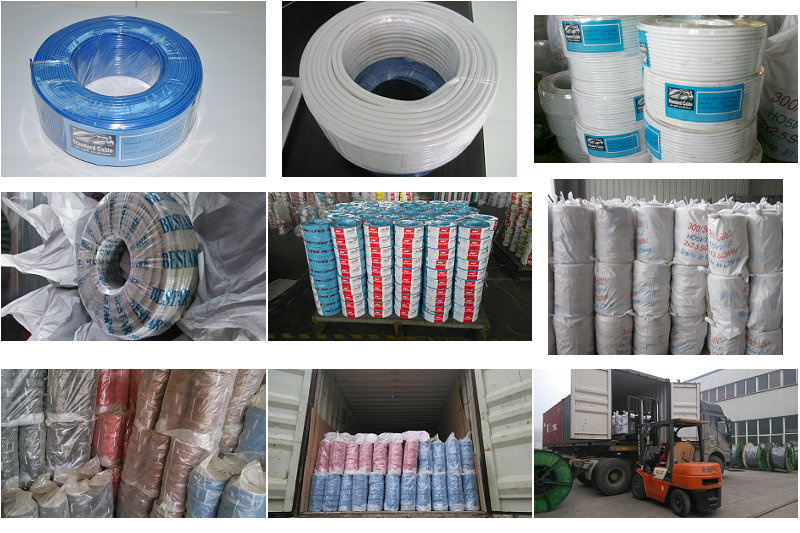

5.Package:
Packing in plastic reel, paper reel ,wooden drum or as customer's requirement.

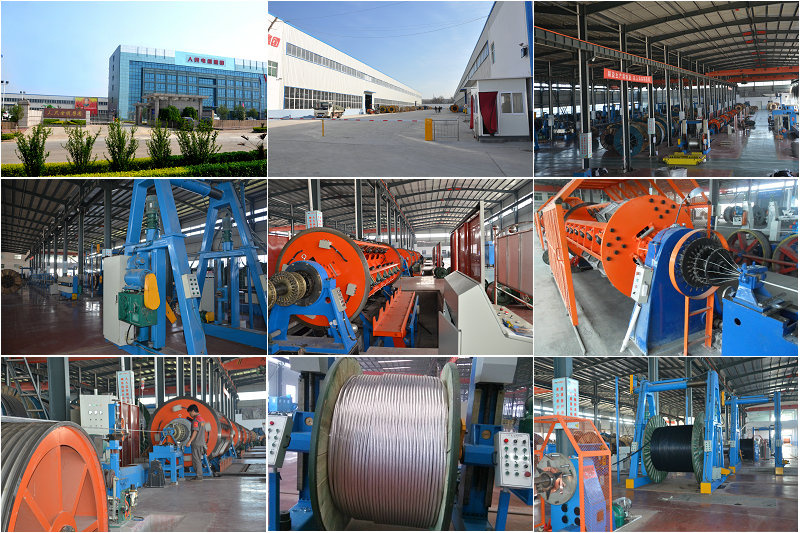

6.Our factory:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.

7.Certificate:
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.

8.Customer Visit:
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!

9.Contact:
Dear friends, welcome to our store. We will provide you with china wholesale market market products, excellent service and reasonable price.Please contact us if have any questions about the product. we will answer the questions carefully.At last,I wish you a pleasant purchase.
Factrory ADD:No.13th,YongDing Road, Goingyi,Zhengzhou city, Henan province, China.

Sky:Tinaleeran
Tel:+86-371-55632835
Fax:+86-371-55632837
Mobile:+86-18336390736

People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.

As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "

With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.

Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
