Solid Core Station Porcelain Insulator ANSI Approved Tr205

Name: Solid Core Station Porcelain Insulator ANSI Approved Tr205
Brand: all-electronics-online.com
SKU: 740874035
Availability: InStock
Rating: 4.7 (29 reviews)

Price:	US $ 1-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ANSI TR205
Markets:	North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia
Application:	High-voltage
Material:	Porcelain
Structure:	Post Insulator
Type:	Tr205

Product Description

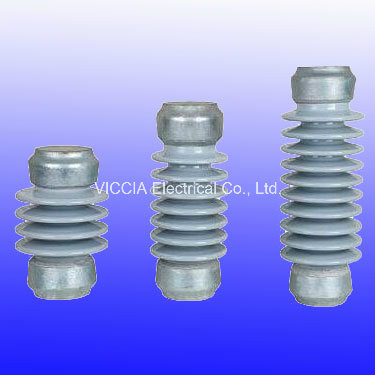

ANSI TR205 Porcelain Station Post Insulator
1.Factory price
2.Timely delivey
3.ANSI,CESI,DIN,BS CLASS
Porcelain insulator colours: Brown or light gray
Package: Fumigated wooden-case

ANSI Class		TR205
Basic Impulse Insulation Level (KV)		110
Usual Line Voltage (KV)		15
Leakage distance/in (mm)		15-1/2(394)
Cantilever Strength/Ib (KN)		2000(8.9)
Tensile Strength/Ib (KN)		8500(37.8)
Torsional Strength/in-Ib (N.m)		7000 (791)
Compression Strength /Ib (KN)		10000(44.5)
Critical Impulse Flashover Voltage, Positive (KV)		125
Withstand Voltage	Low Frequency, Wet/KV	45
	Impulse/KV	110
Radio-Influence Voltage Data	Test Voltage to Ground/kV	10
	Maximum RIV at 1000 KHZ/ µ V	50
Height- " H " /in (mm)		10(254)
Shed diameter/in (mm)		6-1/2(165)
Bolt circle diameter/in (mm)		3(76)
(4)Tapped holes, size/in		1/2-13
Cap diameter- " C " /in (mm)		4-1/4(108)
Net Weight/Ib (kg)		21(9.3)
