Solid Core Station Porcelain Insulator ANSI Approved Tr208

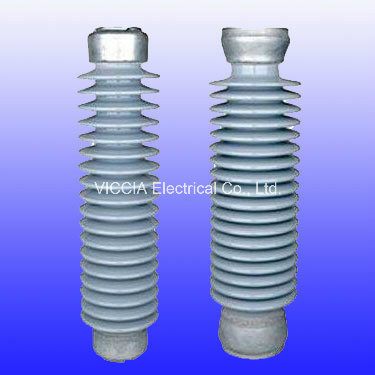

Name: Solid Core Station Porcelain Insulator ANSI Approved Tr208
Brand: all-electronics-online.com
SKU: 740874425
Availability: InStock
Rating: 4.5 (124 reviews)

Price:	US $ 1-20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ANSI TR208
Markets:	North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia
Application:	High-voltage
Material:	Porcelain
Structure:	Post Insulator
Type:	Tr208

Product Description

ANSI TR205 Porcelain Station Post Insulator
1.Factory price
2.Timely delivey
3.ANSI,CESI,DIN,BS CLASS
Porcelain insulator colours: Brown or light gray
Package: Fumigated wooden-case

ANSI Class		TR-202	TR-205	TR-208	TR-210	TR-214	TR-216
Creepage Distance mm		267	394	610	940	1092	1829
Cantilever Strength kN		8.9	8.9	8.9	8.9	8.9	6.7
Tensile Strength kN		38	38	44.5	53	62	71
Torsion Strength N. m		678	791	904	1130	1356	1695
Compression Strength kN		44.5	44.5	44.5	66.7	66.7	111
Low Frequency Flashover Voltage	Dry Flashover kv	60	85	110	145	170	235
Low Frequency Flashover Voltage	Wet Flashover kv	40	55	75	100	125	180
Critical Impulse Flashover Voltage	Pos. kv	105	125	170	225	280	390
Critical Impulse Flashover Voltage	Neg. kv	120	200	250	290	340	475
WetLow Frequency Withstand voltag	Dry Withstand kv	36	50	70	95	120	175
WetLow Frequency Withstand voltag	Wet Withstand kv	30	45	60	80	100	145
Impulse Withstand Voltage kv		95	110	150	200	250	350
Net Weight Each Approx. kg		4.5	7	11	16	21	30

VICCIA Electrical Co., Ltd., a member of Fuzhou Light Industry Co., Ltd, is located in Sanming City of Fujian Province. We specialized in manufacturing and supplying multiple products, particularly in the field of electrical appliance, such as Fiberglass ladder and Aluminum ladder, high and low voltage product, power fittings and so on. Started with the business of international trading and sales agent of domestic supplier and overseas buyer, we now have skilled and experienced engineer team in design and manufacturing, as well as trained talents in business and management which enables us to respond effectively to the demands of market and our customers at all times.

The slogan of VICCIA is to provide the highest quality services to each customer, and to provide products to each customer with reasonable price and good quality. At the same time, we can develop and manufacture gratifying products in accordance with customers' certain requirements.

Put your trust in VICCIA, let us work together and achieve more.
