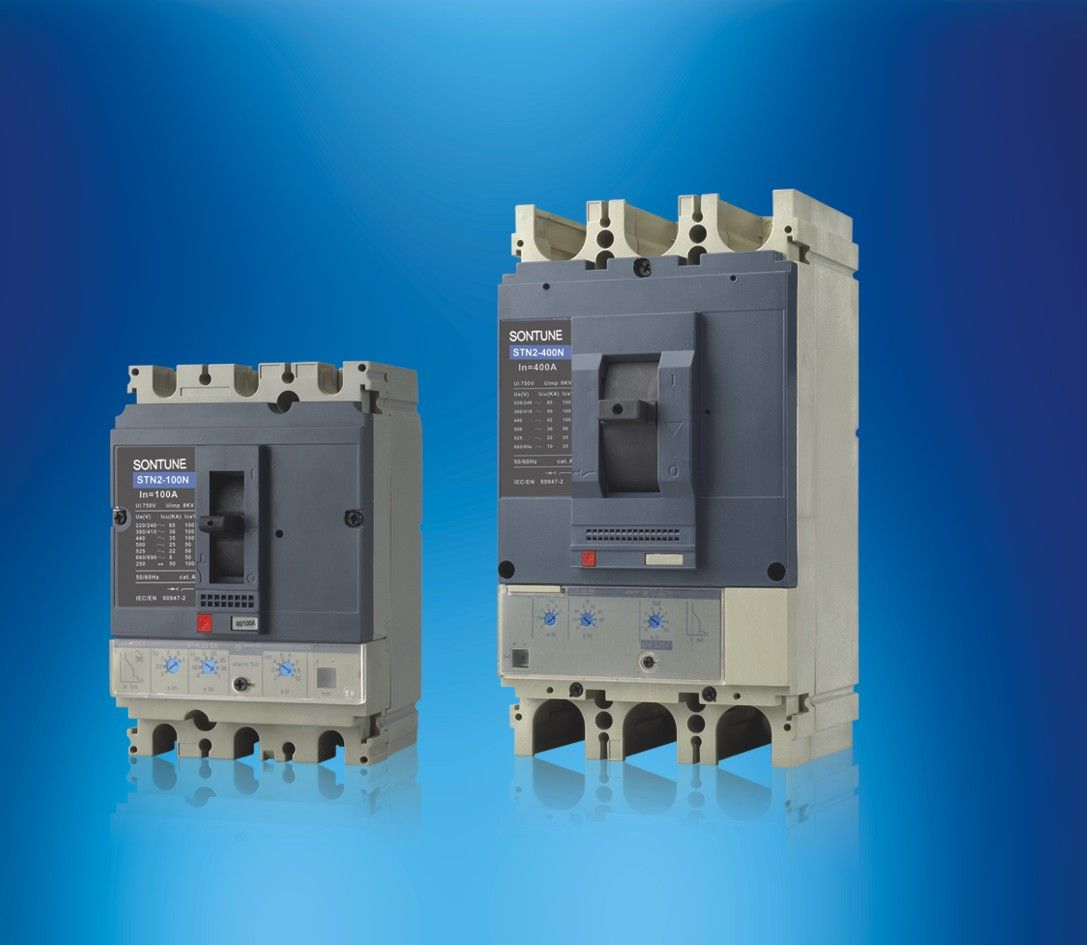

Sontune Stn2 3p4p Moulded Case Circuit Breaker

Name: Sontune Stn2 3p4p Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 813901095
Availability: InStock
Rating: 4.4 (51 reviews)

Price:	US $ 9.8-10/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	stn2
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Installation:	Fixed
Certification:	CE

Product Description

Ambient air temperature
The ambient air temperature is about +40 ºC; the ambient air temperature is below -5ºC; the average value of ambient air temperature 24h is not more than +35ºC.
Elevation: installation elevation of not more than 2000m.
Atmospheric condition:
Relative humidity of the atmosphere in the surrounding air temperature of +40ºC is less than 50%; the relative humidity at the lower temperature can be high; most of the wet month average maximum relative humidity of 90%, the monthly average minimum temperature of +25ºC and considering the temperature due to changes in product surface.
Pollution grade: grade 3.

Rated current of release(A)	Thermodynamic release (ambient temp +40°C)				operational current of magnetic ralease(A)
	1.05In(cold state) in operative time(h)		1.30(heat state) inoperative time(h)
In≤63	≥1		<1		10In±20%
63	≥2		<2		10In±20%
100	≥3		<3		5-10In±20%
Rated current of release(A)	Thermodynamic release (ambient temp +40°C)				operational current of magnetic ralease(A)
	1.0 In(cold state) operative time(h)	1.20(heat state) operative time(h)	1.50(heat state) operative time(h)	1.01(heat state) operative time(h)
12.5	≥2	<2	≤4min	2s	12In±20%

Shipping

Our Services:

Competitive price
Continuance Service and support
Good-after service
Quality Reliability and Long Product Life.

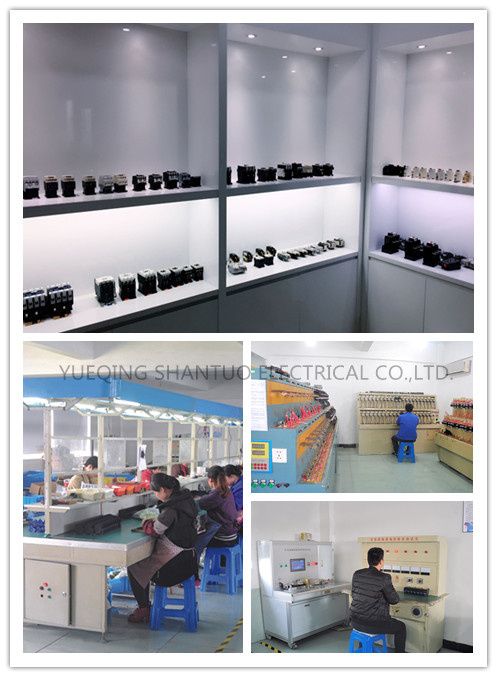

Company Information

YUEQING SHANTUO ELECTRICAL CO,LTD.
is one of manufactories that specialize in manufacturing AC CONTACTOR, Thermal Relay and Circuit Breaker, and is located in Liushi.Wenzhou.China

Contact us

Thanks for your reading.If any product meets your need.Welcome to send us an email.We are sure your any information can be attentioned without any delay.

YUEQING SHANTUO ELECTRICAL Co., Ltd. is one of manufactories that specialize in manufacturing AC CONTACTOR, Therminal Relay and Circuit Breaker, and is located in Liushi, Wenzhou, China that called " the Capital of Low Voltage Electronic Products", enjoying convenient transportation access and a beautiful environment. The products have passed CE approvals and strictly comply with IEC standards. The company has advanced detection instruments and strong technical force with strong research and development capability, product constantly updated. The products export Europe, Asia, Southern Amercia, Middle East, Western Africa market. Our manufactory has produced AC contactor and relay about 10years, The products have passed CE certificate.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

On the base of guarrantee the quality, we will try our best to design new model with ourselves patents for the coming years.
