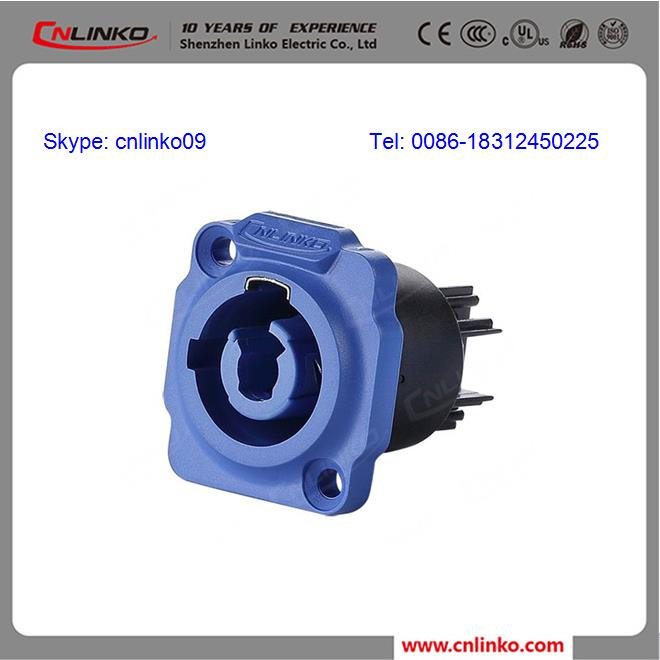

Speakon Audio Jack /XLR Socket

Name: Speakon Audio Jack /XLR Socket
Brand: all-electronics-online.com
SKU: 777011305
Availability: InStock
Rating: 4.8 (48 reviews)

Price:	US $ 1.55/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YF-24-J03SX-03-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gender:	Female Socket
Application:	Audio,Video,LED Displays
Color:	Blue
Waterproof Level:	IP44/IP65
MOQ:	100PCS

Product Description

Speakon Audio Jack /XLR Socket

Features:

Power-in and power-out versions with different keying to avoid the possibility of intermating
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
Unique fashion design
Improved kink protection by two-component bushing
New bushing design avoids unintended opening
UL, CUL,CCC,ROHS,ISO9001

Product Description:

YF-24 series electrical connectors:
1. locking 3-pin connector of the device (middle, straight &pre-adaptation) - flexible;
2. Zinc alloy material against high frequency noise and electromagnetic interference
3. gold-plated contacts, high-strength corrosion resistance
4. electrical conductivity effectively deal with temperature rise.
5. silver-plated contact;
6. rated current: 20A;
7. 3 PIN Plug and Socket Speaker Connector, Adapter Connector for Audio and DJ Equipments.

Product Datasheet:

YF 24 power connector

Connecting mode:	latching lock
Protection level:	IP44/IP65
Cable specification:	2.5 mm2 ~ 4 mm2 /14~12 AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ3.0×3
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<3mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	solder
Prevent the combustion level:	UL94-V0
Temperature rise:	12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C.
Produce type:	splice connectors
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP44/IP65)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery
