| Prod Model: |
ZN12-12/630-12.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
12kv |
| Phase: |
3 Phase |
| Frequency: |
50Hz |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Insert |
| Poles Number: |
3 |
| Certification: |
IEC |
Product Description
1, General Description:

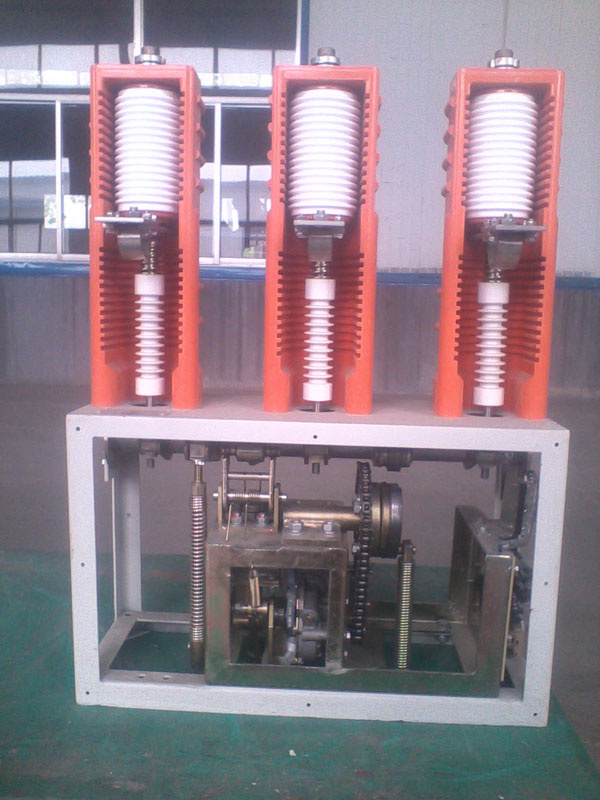

The bank of capacitors vacuum switch ZN12-12/630-12.5J
is mainly used in VQC device of substation 10Kv(6Kv) system
or in breaking capacitive loading site (where working actions
happen frequently) of power filter. It adopts a modular
construction, using flexible busbar to connect between switches
so its volume is small and it is convenient to install inside the
cabinet.
2,plication Environment:
1),Air Temperature Around:-40ºC~+40ºC;
2),Altitude should not exceed 2000m. Please negotiate with
factory when it is over 2000m.
3),Humidity: relative humidity: daily average value should
not exceed 95%, month average value should not exceed
90%.
4),No corrosive, flammable or conductive dust or gas in surrounding medium.
5),Not allowed to install in serious dirtiness or strenuous vibration place.
Rated Voltage(kV)12
Single Route Rated current(A)630
Rated Short-circuit Breaking Current(kA)12.5
Rated Peak Value Withstand current(kA)50
Rated Short-time Withstand Current(kA)20/4S
Rated Short-circuit Making Current(kA)Peak Value50
Rated Single Bank of Capacitors Breaking Current (A)200
Rated Back-to-Back Bank of Capacitors Breaking Current (A)200
Rated Short-circuit Current Breaking Times()30
Rated Lightning Impulse Withstand75Voltage(kV)
1min Power Frequency Withstand Voltage(kV)42
Mechanical Life()50000
