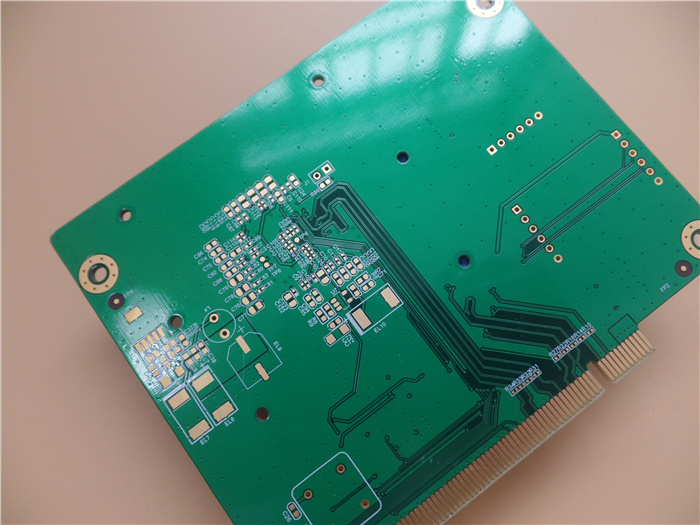

Specified Dielectric PCB Circuit Board Taconic Tlf-34 1.00mm Lead Free
| Price: |
US $ 1.04/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
BIC-617-V6.17 |
| Final Foil External: |
1.0oz |
| Final Height Of PCB: |
1.0mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Mininum Trace (Mil): |
5.0 Mil |
| Minimum Gap(Mil): |
4.9 Mil |
| RoHS Required: |
Yes |
| Warpage: |
0.21% |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
| Dielectric: |
RO4350b |
Product Description
Company Profile

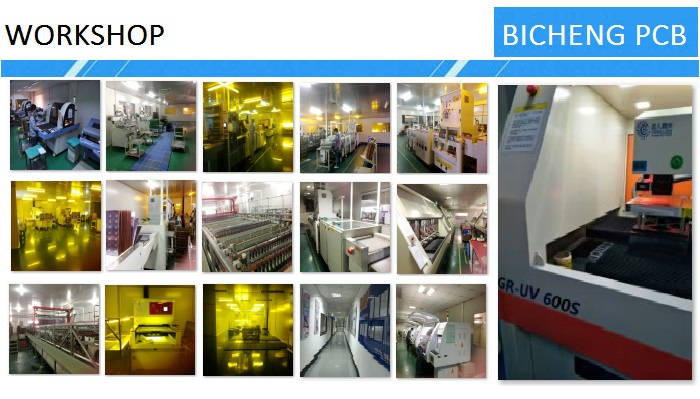

The manufacturing facilities are independent industrial plant. There're 16000 square meters
workshop area. Brand new automatic equipment was introduced from Israel, Germany, Japa
and Taiwan area. As of now the manufacturing capability for 2-12 layer PCBs covers 300
thousand square feet per month. 7000-8000 types of different PCBs are shipped to worldwide
each month.
PRODUCTS & SERVICES
a) FR-4 TG>135, High TG>170, High CTI>600V
b) RO4350B, RO4003C, F4B microwave material
c) Aluminum based PCB, 1W/MK-3W/MK material
d) Layer Count up to 32 layers
e) Heavy Copper
f) Hybrid Material Multilayer PCB
g) Impedance Controlled PCB
h) HASL Lead free, Electroless Nickle Immersion Gold (ENIG), Immersion Silver, Immersion Tin,
OSP
i) Color of Solder Mask: Green, Blue, Matt Blue, Yellow, Black, Red and White etc.
j) Special holes: blind via, countersink hole, castellation hole, press-fit hole
k) Quick turn-around (QTA) Delivery
l) Minimum Order Quantity (MOQ) 1 pcs
m) Door to Door shipment service
SERVICE AREA
North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western &
Southern Europe, Northern Europe, Central & South Asian, Middle East.

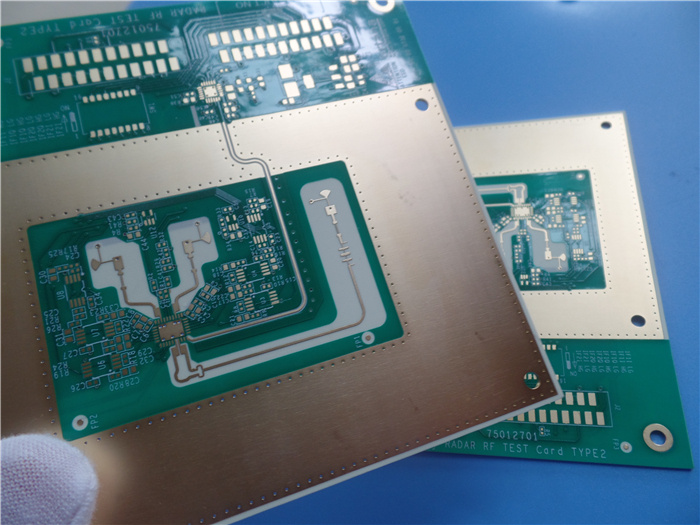

High Frequency PCB

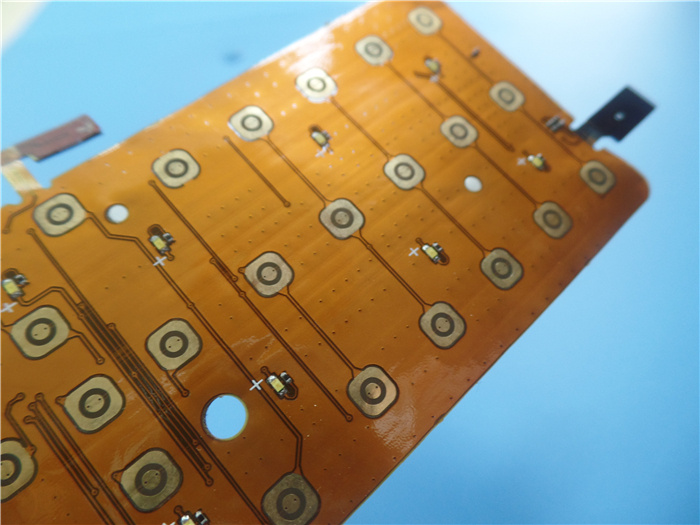

Flexible Printed Circuit
Metal Core PCB
PCB Board
Technic Information
Design For Manufacture| Serial NO. | Procedure | Item | Manufacturing capability |
Large
volume
(S<100 m²) | Middle
volume
(S<10 m²) | Prototype
(S<1m²) |
|
| 14 | Laminating | Tolerance of
laminate
thickness | ±10% PCB thick | ±10% PCB thick | ±8% PCB
thick |
| 15 | Maximum
laminate
thickness | 4.0mm | 6.0mm | 7.0mm |
| 16 | Laminate
alignment
accuracy | ≤±5 mil | ≤±4 mil | ≤±4 mil |
| 17 | Drill (18um,
35um,70um
etc are
finished
copper.
If not
mentioned
copper,
finished
1oz is the
default
value ) | Min.drill
bit diameter | 0.2 mm | 0.2 mm | 0.2 mm |
| 18 | Min.slot
router
diameter | 0.60 mm | 0.60 mm | 0.60 mm |
| 19 | Min.tolerance
of PTH slots | ±0.15mm | ±0.15mm | ±0.1mm |
| 20 | Max.aspect
ratio | 1:08 | 1:12 | 1:12 |
| 21 | Hole
tolerance | ±3mil | ±3mil | ±3mil |
| 22 | Space of
via to via | 6mil(same
net),12mil
(different net) | 6mil(same
net),14mil
(different net) | 4mil(same
net),12mil
(different
net) |
| 23 | Space of
component
hole to
component
hole | 12mil(same
net),16mil
(different net) | 12mil(same
net),16mil
(different net) | 10mil(same
net),14mil
(different
net) |
| 24 | Etching | Min.width
of etching
logo | 10mil(18um),
12 mil (35um),
12 mil(70um) | 8mil(18um),
10mil(35um),
12 mil(70um) | 6mil(18um),
8 mil(35um),
12mil(70um) |
| 25 | Etch factor | 1.6-2.2 | 1.6-2.2 | 1.6-2.2 |
| 26 | Outer layer
(18um,35um,
70um etc
are finished
copper. If not
mentioned
copper,
finished
1oz is the
default
value ) | Min.via
pad
diameter | 20mil | 16mil | 16mil |
| 27 | Min.BGA
pad
diameter | 12mil | 12mil | 10mil |
| 28 | Min.track
and spacing | 5/5mil(18um) | 4/4mil(18um) | 3/3.5mil
(18um) |
| 5/5mil(35um) | 4/4mil(35um) | 3/4mil
(35um) |
| 7/9mil(70um) | 6/8mil(70um) | 6/7mil
(70um) |
9/11mil
(105um) | 8/10mil
(105um) | 8/9mil
(105um) |
13/13mil
(140um) | 12/12mil
(140um) | 12/11mil
(140um) |
| 29 | Minimum grid | 10/10mil
(35um) | 8/8mil
(35um) | 4/8mil
(35um) |
| 30 | Min.space
(conductor
to pad, pad
to pad) | 6mil(18um) | 5mil(18um) | 4mil
(18um) |
| 6mil(35um) | 5mil(35um) | 4mil
(35um) |
| 9mil(70um) | 8mil(70um) | 7mil
(70um) |
| 11mil(105um) | 10mil(105um) | 9mil
(105um) |
| 13mil(140um) | 12mil(140um) | 11mil
(140um) |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
