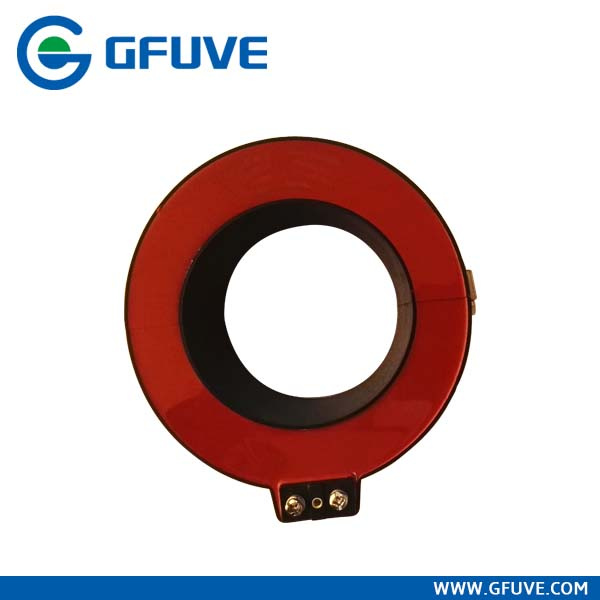

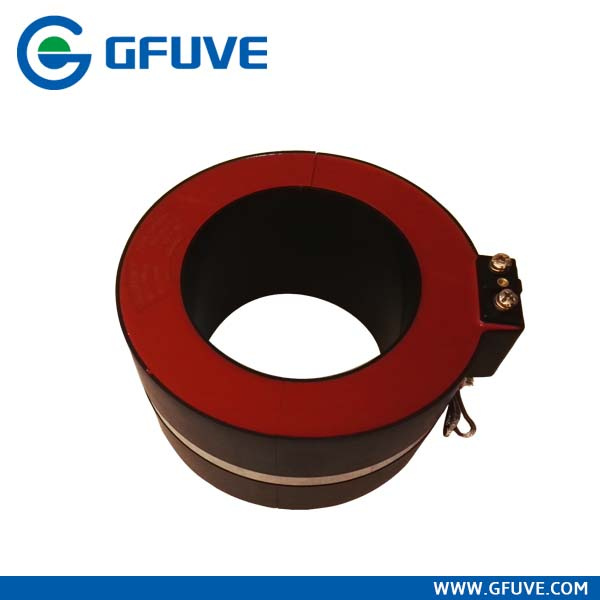

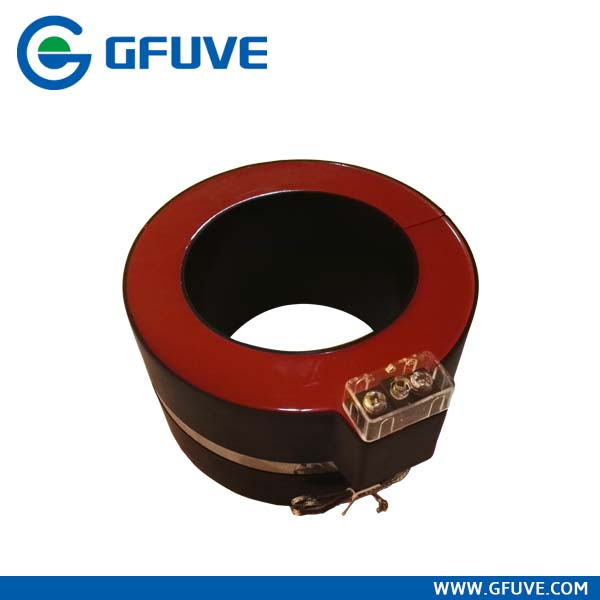

Split Core Zero Phase CT Current Transformer

Prod Model:	LZCK2500-10
Class:	0.5
Ratio:	800/5A
Material:	Resin
Color:	Red and Black
Types:	Zero Phase Current Transformer
Standards:	IEC60044-1, IEC61869, ANSI C57.3
Weight:	7kg
Burden:	20va
Fs:	<10
Insulation:	3kv/Min
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

LZCK2500-10 SELECTING PRECISION 35KV SPLIT CORE ZERO PHASE CT CURRENT TRANSFORMER


LZCK series split core zero phase ct current transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes. The current transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings arevacuum poured by insulated resin.
OUTLINE DRAWING
WIRING DIAGRAMS
P1, P2 is primary polarity terminal, S1, S2 is secondary polarity terminal.
P2, S2 is homonymous terminals (subtractive polarity).
PARAMETERSTechnical parameters Mechanical parameters Operating conditions

Standards	IEC60044-1; IEC 61869-2; NTC 2205; ANSI C57.13; GB1208-2006
Rated primary current	500-1500A
Rated load	≤20VA
Rated frequency	50Hz or 60Hz
Rated secondary current	5A or 1A
Rated short-time thermal current	40kA, 1S
Rated continuous thermal current	120%I1n
Secondary winding power-frequency voltage	3kV, 1min
Instrument security factor	FS≤10
Dimensions (W×D×H) (mm)	φ120xφ185x100
Weight (kg)	7
Operating temperature	-35°C to +55°C
Daily average temp	<+40°C
Storage temperature	-40°C to +70°C
Altitude	<3500 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

SELECTION GUIDETypeLZCK2500-10LZCK2500-10PurposeMeasuring current transformerProtection current transformerRatioAccuracy class and rated load(VA)Accuracy class and rated load(VA)

I1/I2	0.5	1	3	10P15	10P10	10P5
300/5	5	5	5	2.5	5	7.5
400/5	5	5	5	2.5	5	7.5
500/5	5	7.5	7.5	5	7.5	10
600/5	5	7.5	7.5	5	7.5	10
800/5	10	10	10	5	10	15
1000/5	10	15	15	5	10	15
1200/5	15	20	20	10	15	20
1500/5	15	20	20	10	15	20

SELECTION GUIDE ModelPrimary rated currentRated loadAperture (mm)Description (mm)Weight (kg)MaterialWater-proof

LZCK-55	100-1500A	≤10VA	φ55	180×138×52	2	ABS+Resin	IP65
LMCK185-10	300-3000A	≤25VA	φ185	350×283×55	4.5	ABS+Resin	IP65
LZCK310-10	300-600A	≤10VA	φ50	φ50 x φ110 x 32	1	Resin	silicon case (option)
LZCK322-10	30-600A	≤10VA	φ50	φ50 x φ110 x 52	1.6	Resin	silicon case (option)
LZCK350-10	20-600A	≤25VA	φ50	φ50 x φ110 x 105	3.1	Resin	silicon case (option)
LZCK720-10	20-1000A	≤25VA	φ60	φ80 x φ110 x 50	2.1	Resin	silicon case (option)
LZCK2500-10	500-1500A	≤20VA	φ120	φ120 x φ185 x 100	7	Resin	silicon case (option)
LZCG530-10	30-600A	≤20VA	φ45	φ45 x φ120 x 65	2.1	Resin	silicon case (option)
LZCG930-10	100-1500A	≤25VA	φ60	φ60 x φ155 x 60	3.6	Resin	silicon case (option)
LZCT722-10	20-600A	≤10VA	φ82	φ82 x φ130 x 55	2.3	Resin	silicon case (option)

ORDERING INFORMATION
Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make a order. Special specifications could be customized.All kinds of different specifications and parameters current transformers can be made according to your needs.
