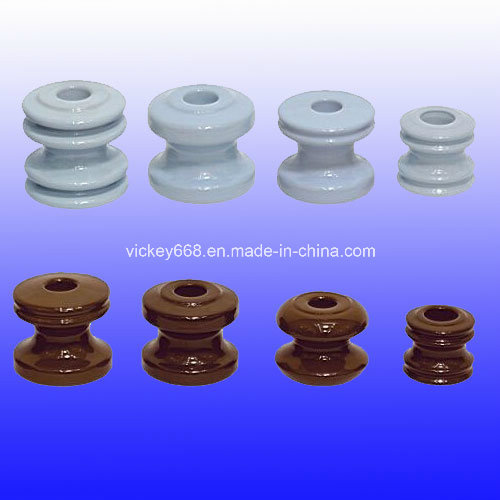

Spool Porcelain Insulator

Name: Spool Porcelain Insulator
Brand: all-electronics-online.com
SKU: 740901995
Availability: InStock
Rating: 4.7 (140 reviews)

Price:	US $ 1-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	ANSI 53 -1
Markets:	North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia
Application:	Low-voltage
Material:	Porcelain
Structure:	Strain Insulator
Type:	53-1,53-2,53-3,53-4

Product Description

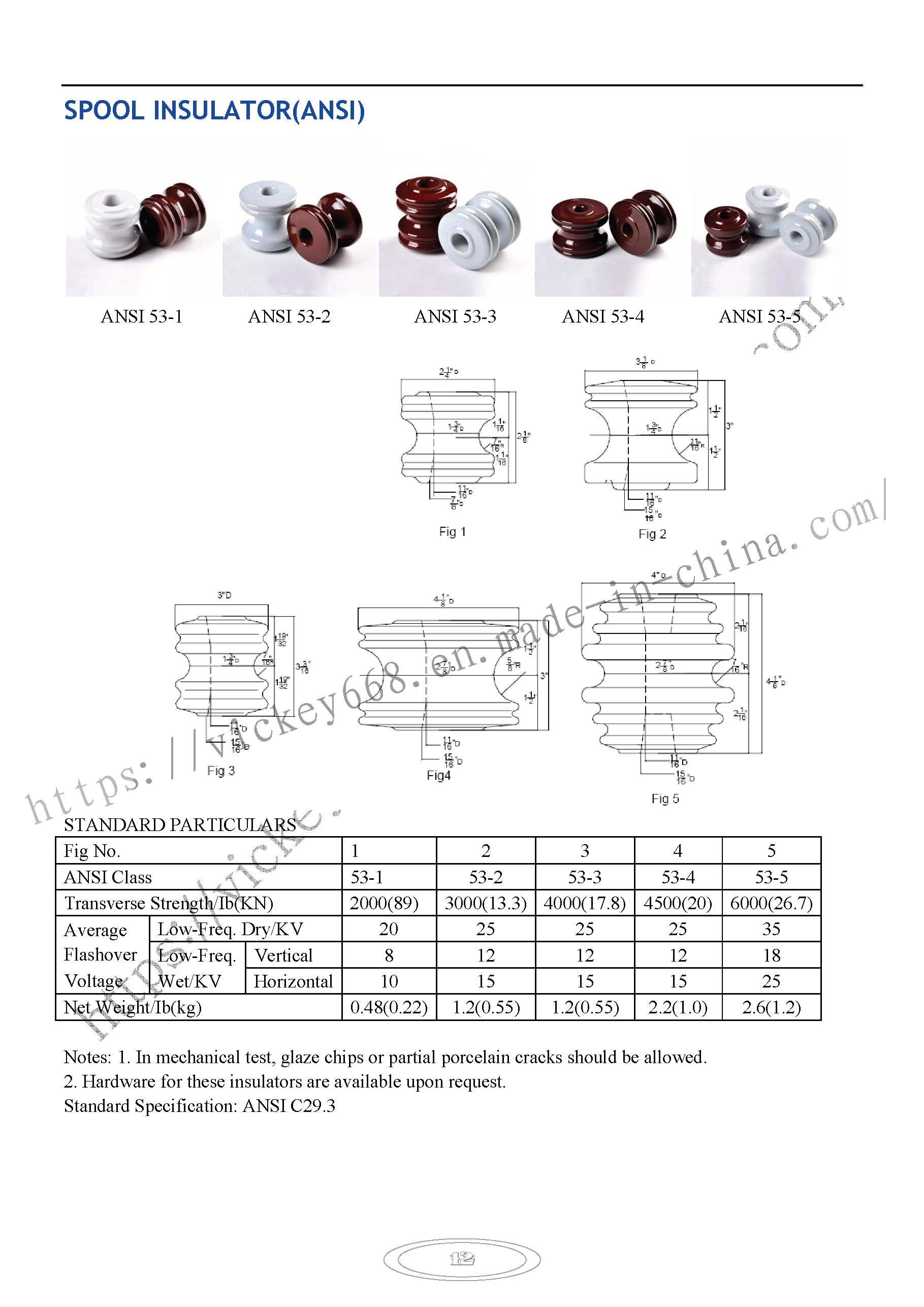

ANSI 53 series Spool Porcelain Insulators

Material: Porcelain
Standard: ANSI
Class standard: 53-1/53-2/53-3/53-4
Glaze: Brown/gray

ANSI Class			53-1	53-2	53-3	53-4	53-5
Transverse Strength/Ib(KN)			2000(89)	3000(13.3)	4000(17.8)	4500(20)	6000(26.7)
Average Flashover Voltage	Low-Freq. Dry/KV		20	25	25	25	35
	Low-Freq. Wet/KV	Vertical	8	12	12	12	18
		Horizontal	10	15	15	15	25
Net Weight/Ib(kg)			0.48(0.22)	1.2(0.55)	1.2(0.55)	2.2(1.0)	2.6(1.2)
