Spuer Far Wireless RF Remote Controller Kl-K103la

Name: Spuer Far Wireless RF Remote Controller Kl-K103la
Brand: all-electronics-online.com
SKU: 824689115
Availability: InStock
Rating: 4.7 (128 reviews)

Price:	US $ 12-15/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KL-K103LA
Ambient Temperature:	-20c -- +50c
Weight/G:	36g (Without Case),76g(Case)
Curren:	7A
Frequency:	315MHz, 433MHz, Optional
Adjustable Frequency:	250-460MHz
Use:	Cars, Garage Doors , Gates Doors, Alarm Systems Et
Encoding Type:	Fixed, Learning, Rolling/Hopping Code
Battery:	23A 12V
Modulation Way:	Ask/Ook
Dimension:	954025mm (with Case)
Application:	LED Products
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Material:	Plastic
Battery Type:	Button Battery
Transmission Distance:	5000m
Voltage:	9-12V

Product Description

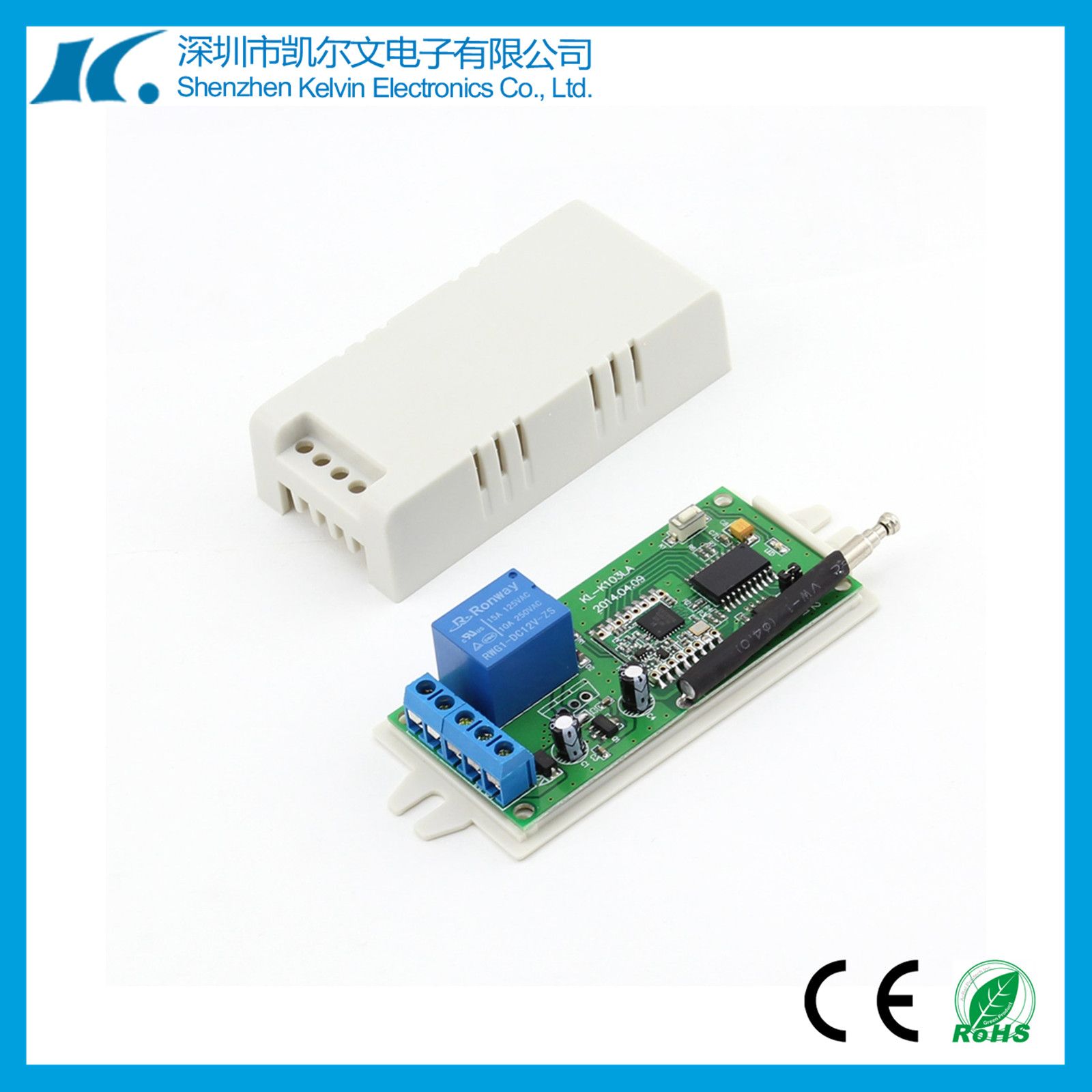

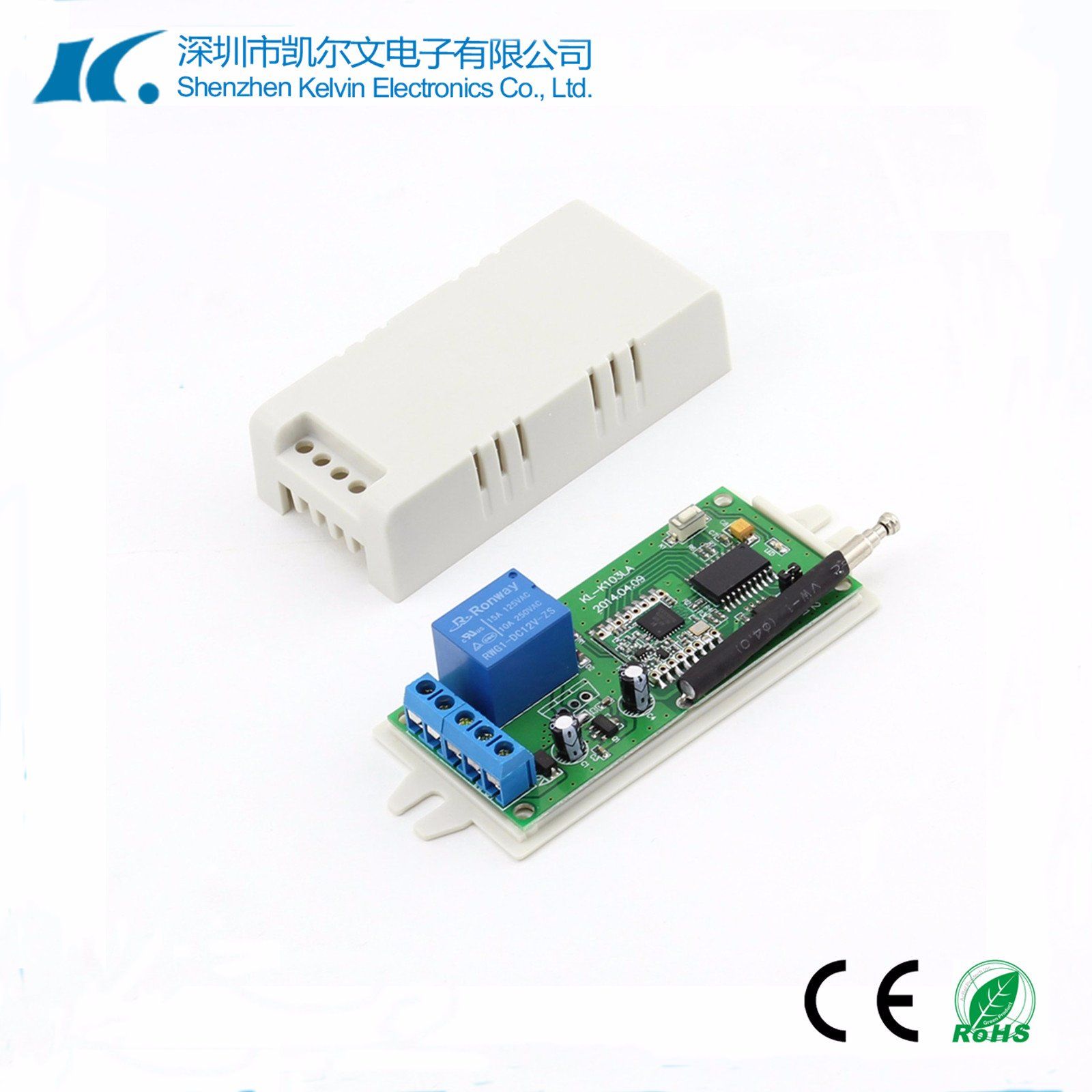

Spuer far wireless RF remote controller KL-K103LA

Overview

KL-K103LA is our currently developed super far distance bidirectional remote control series. According to number of channels, KL-K103LA has 6 different channels 1,2,4,6,8,12. The receiver module switch using spread spectrum communication technology, greatly enhancing the anti-jamming performance. U.S. imports of chips, strict testing to ensure the quality of reliability
The remote control and a matching receiver module, its measured distance can reach more than 5000m.
Mostly use light,signal, irrigation and door opener and others
If you select bidirectional mode, KL5000-N (N=1.2.4.6.8.12) can match our instantly receive feedback signal from the receiving device.

Specification

Working Voltage	DC9-12V
Receive Current	16mA
Standby Current	7A
Working Frequency	434MHz (can customize 868,915MHz)
Encode type	custom match code
Modulation Mode	FSK (FM)+ LORA(SPSP)
Feedback Indication	Buzzer
Receiving sensitivity	-148dBm
Control Distance	6000m (open area, match with KL-K400LA)
Operating temperature	-10ºC~+70ºC
Dimension	842340mm (With case)

UsageMatch Code: Press match code button for 3seconds, LED indicator lights, and press any buttons on remote control. When LED flashes 2times, it means finishing matching code.FBK Select: On remote control module, Short-circuit S3, receive FBK signal; break, not receive FBK signal. When bidirectional remote control receives the signal, the buzzer will send the sound 'dip-'If selecting to receive FBK signal, remote control power-on and default standby. When pressing the button, remote control will transmit signal; when up-springing the button, remote control will receive. Before entering into standby, it will be continuous for 1 second.When remote control not need to work for a long time, please shut off the power supply.

Shenzhen Kelvin Electronics Co., Ltd. is one of the leading manufacturers of RF products in China. We were established in 2006, and equipped with professional R&D team and abundant technical skills.

Our main business covers RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.

Kelvin always wins customers' recognition with quality and after-sales service. All items designed with Europe standard, meeting the CE and RoHS requirement. We have been ISO9001: 2000 certified since 2015. It's carried out strictly from raw material purchasing to packing and warehousing, also effectively lower down the defective rate. Besides, we are trying to make a real difference to the environment by improving our production processes and adopting environmental material, etc.

Company History: Feb 2006 Company Founded--DEC 2006 1st SMT production line--Nov 2008 1st Ce Certification--Feb 2016 Subsidiary company established

Sales performance: Turnover in 2012 Over 10million RMB--2016 Over 10million RMB

Scope of business: RF remote controls, remote control duplicators, transmitter and receiver modules, smoke detectors, gas leak alarms, PIR sensors, door sensors, customized RF application, and so on. Additionally, we also provide OEM&ODM service.

Prospects for development: Bright future is coming
