| Prod Model: |
MPM286 |
| Pressure Range: |
0kpa~20kpa...3.5MPa |
| Total Accuracy: |
0.075%Fs |
| Pressure Type: |
Gauge/ Absolute / Sealed Gauge |
| Output Signal: |
4-20madc |
| Protection: |
IP65 |
| Diameter: |
19mm |
| Working Temp: |
-40-125c |
| Compansated Temp.: |
0-50c |
| Storage Temp: |
-40-125c |
| Over Pressure: |
1.5 Times Fs |
Product Description

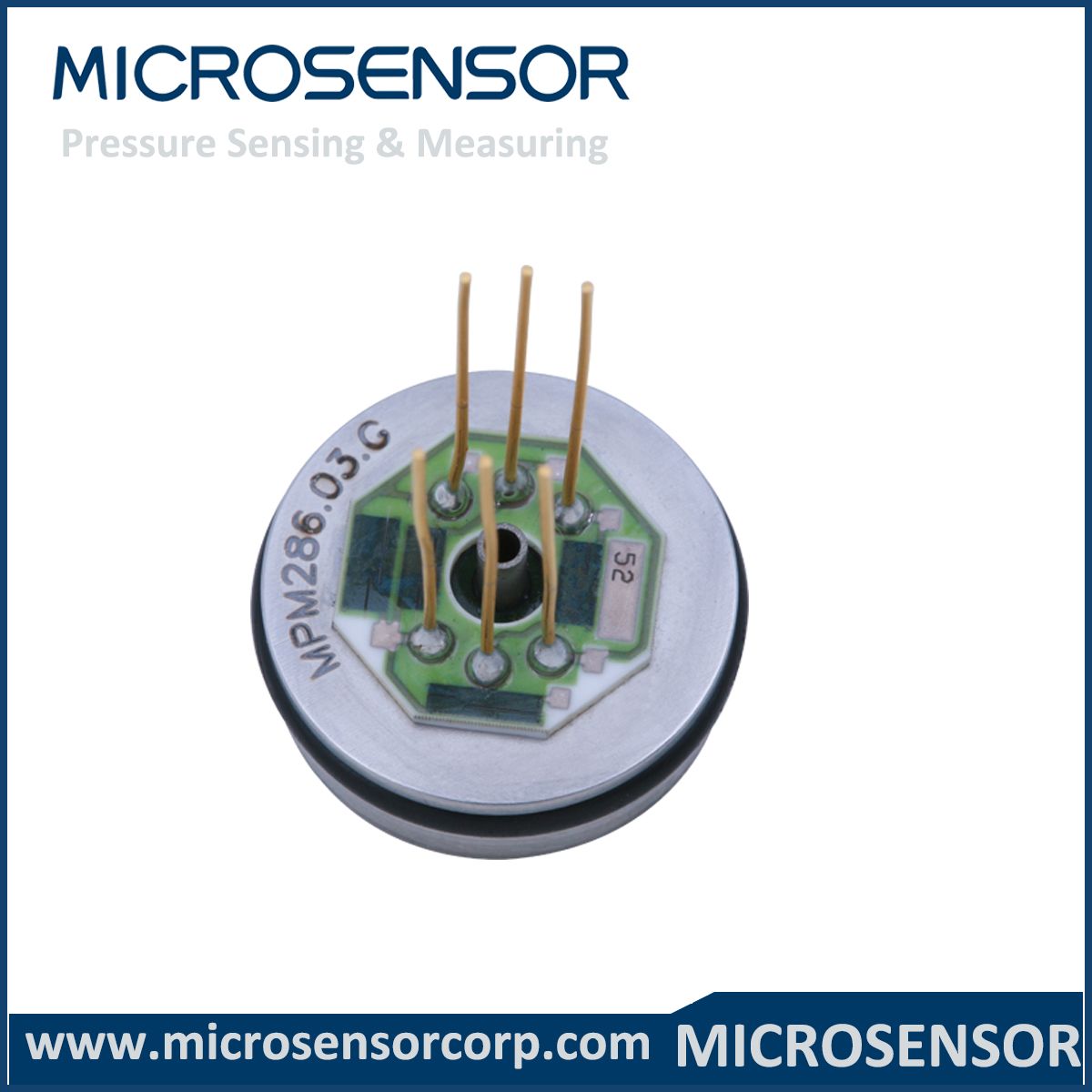

SS316L Comapct Piezoresistive Pressure Sensor MPM286
Features:
1.Cost-effective;
2. Small size;
3.Isolated Construction;
4. Constant current power supply
5.Φ 19mm standard OEM pressure sensor
6.Full stainless steel 316L
Application
1. Industrial process control 2. Level measurement 3. Gas, liquid pressure measurement
4. Pressure checking meter 5. Pressure calibrator 6.Liquid pressure system and switch
7.Cooling equipment and air conditioning system 8.Aviation and navigation inspection
Electric Performance
1. Power supply: ≤2.0mA DC, ≤10V DC

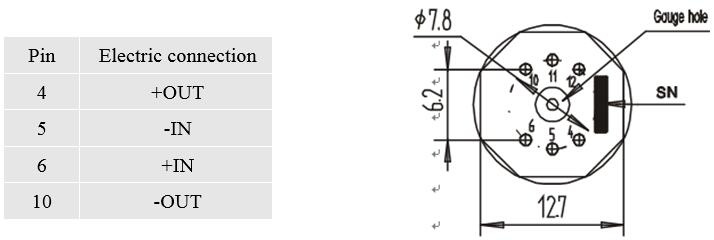

2. Electric connection: Kovar pin / 100mm silicone rubber flexible wire
3. Common mode voltage output: 50% of input (typ.)
4. Input impedance: 2.5kΩ~5kΩ
5. Output impedance: 3.5kΩ~6kΩ
6. Response (10%~90%):<1ms
7. Insulation resistor: 100MΩ, 100V DC
8. Overpressure: 1.5 times FS
Construction Performance
1. Diaphragm: stainless steel 316L
2. Housing: stainless steel 316L
3. Pin: Kovar
4. O-ring: Viton
5. Net weight: ~11g
Environment Condition
1. Position: deviate 90°from any direction, zero change ≤±0.05%FS
2. Shock: no change at 10gRMS, (20~2000)Hz
3. Impact: 100g, 11ms
4. Media compatibility: the gas or liquid which is compatible with construction material and Viton
Basic Condition
1. Media temperature: (25±1) ºC
2. Environment temperature: (25±1)ºC
3. Shock: 0.1g (1m/s2) Max
4. Humidity: (50%±10%) RH
5. Local air pressure:(86~106)kPa
6. Power supply: (1.5±0.0015) m ADC

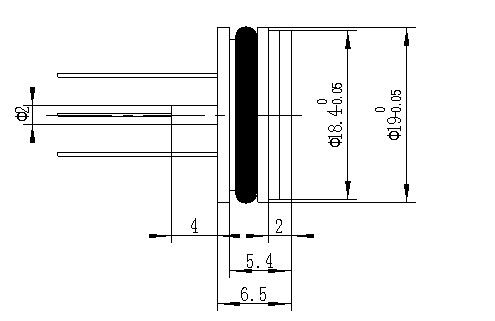

Outline Construction:
Order Guide:| MPM286 | Pressure Sensor |
| | | Range code | Pressure range | Ref. | Range code | Pressure range | Ref. |
| 0B | 0kPa~20kPa | G | 08 | 0kPa~350kPa | G.A |
| 0A | 0kPa~35kPa | G | 09 | 0kPa~700kPa | G.A |
| 02 | 0kPa~70kPa | G.A | 10 | 0kPa~1000kPa | G.A |
| 03 | 0kPa~100kPa | G.A | 12 | 0MPa~2MPa | G.A |
| | 07 | 0kPa~200kPa | G.A | 13 | 0MPa~3.5MPa | G.S.A |
| | | Code | Pressure type |
| G | Gauge |
| | A | Absolute |
| | S | Sealed gauge |
| | | Code | Pressure connection |
| 0 | O-ring |
| | | Code | Compensation |
| L | Laser trimming |
| | | Code | Electric connection |
| 1 | Kovar pin |
| | 2 | 100mm silicone rubber flexible wire |
| | |
| MPM286 03 G 0 L 1 the whole spec |
Order Note
1. We suggest you to use Floating construction when you install the sensor to prevent affecting sensor stability;
2. Please pay attention to protect sensor isolated diaphragm and ceramic compensated board, to avoid damaging sensor or affecting the performance;
3. Temperature resistant range of standard Viton O-ring of sensor is -20ºC ~ 250ºC. When working temperature is lower than -20ºC, or sensor is applied in critical environment, please contact us.
