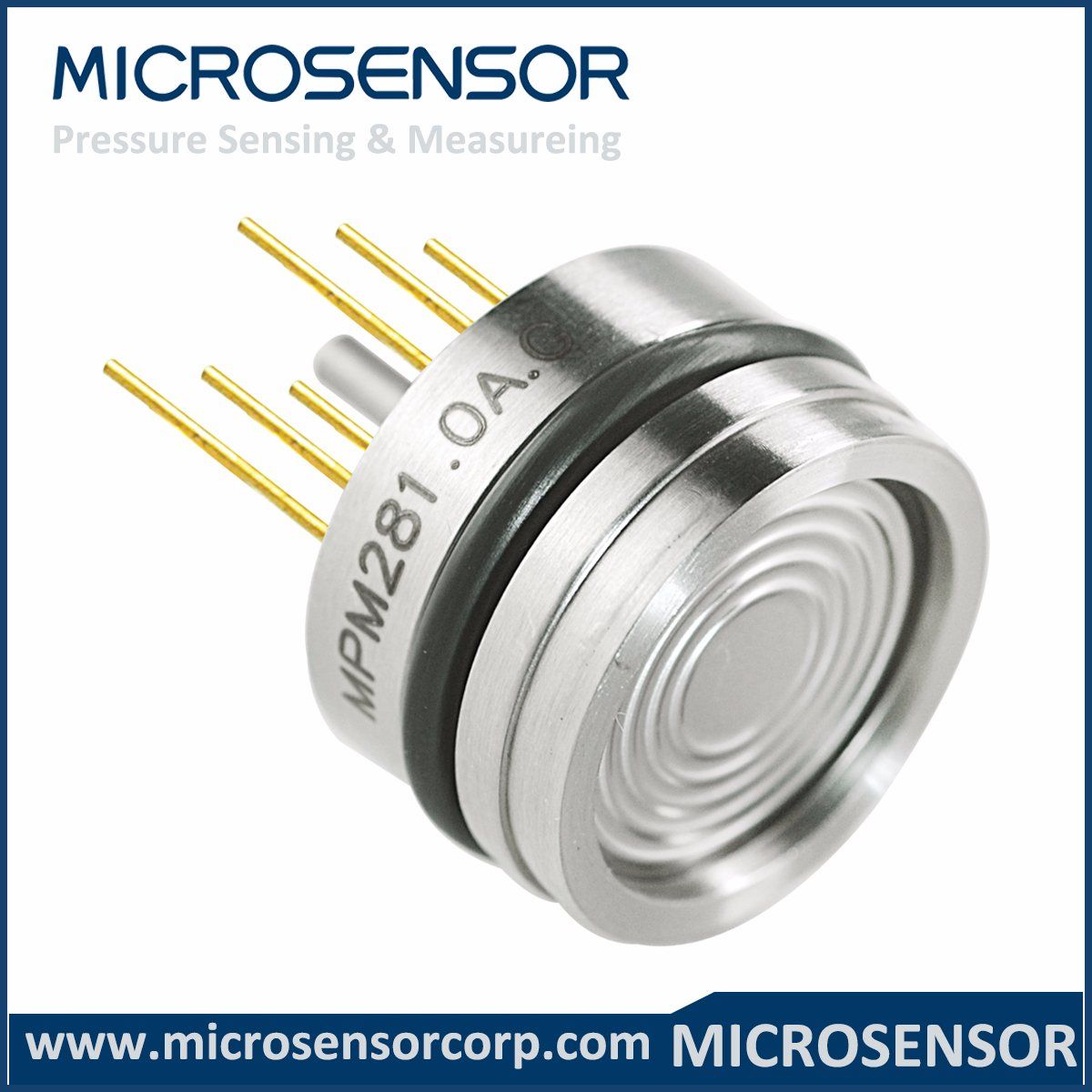

SS316L Piezoresistive Pressure Sensor (MPM281)

Name: SS316L Piezoresistive Pressure Sensor (MPM281)
Brand: all-electronics-online.com
SKU: 741157285
Availability: InStock
Rating: 4.4 (67 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Mpm281
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	0-200kpa...70MPa
Key Words:	Ss316L Pressure Sensor
Temperature Compensation:	-10~80c
Output:	Analog Output
Theory:	Pizoresistive Sensor
Usage:	Level Measurement
Pressure Type:	Normal Pressure
OEM:	OEM
Pressure Port:	as You Require
O-Ring:	Viton

Product Description

SS316L Piezoresistive Pressure Sensor (MPM281)

Features:
1.      Full SS316L construction
2.      Compact size
3.      Long stable
4.      Gauge, absolute and sealed gauge

Applications:
1.      Pressure measurement
2.      Level measurement
3.      For liquids and gases
4.      Pressure detect, calibration

Basic Specification:

Item*	Min.	Typ.	Max.	Units
Linearity		±0.2	±0.25	%FS,BFSL
Repeatability		±0.05	±0.075	%FS
Hysteresis		±0.05	±0.075	%FS
Zero output			±2	mV DC
FS output **	70			mV DC
Zero thermal error***		±0.75	±1.0	%FS,@35ºC
Span thermal error		±0.75	±1.0	%FS,@35ºC
Compensated temp. range	-10~80 0~70(7kPa,20 kPa,35 kPa)			ºC
Working temp. range	-40~125			ºC
Storage temp. range	-40~125			ºC
Stability error		±0.1	±0.2	%FS/year
testing at basic condition * for range code 0C, FS output ≥45mV ***for rang code 0C, Zero thermal error≤1.5%FS

Outline Construction:

Order Information:

MPM281

High Stable Piezoresistive OEM Pressure Sensor

Range code

Pressure range (kPa)

Ref.

Range code

Pressure range (MPa)

Ref.

0~7

0~1

G.A

0~20

0~2

G.A

0~35

0~3.5

G.A.S

0~70

0~7

0~100

0~10

0~200

G.A

0~20

0~350

G.A

0~35

0~700

G.A

0~70

Code

Pressure type

Gauge

Absolute

Sealed gauge

Code

Pressure connection

O-ring

Code

Temperature compensation

Laser trimming

Outer compensated resistor

Code

Electric connection

Φ0.5mm Kovar pins

4-color 100mm flexible rubber wire

Code

Special measurement

Gauge sensor to measure vacuum

MPM281 07 G 0 L 1 Y the whole spec
