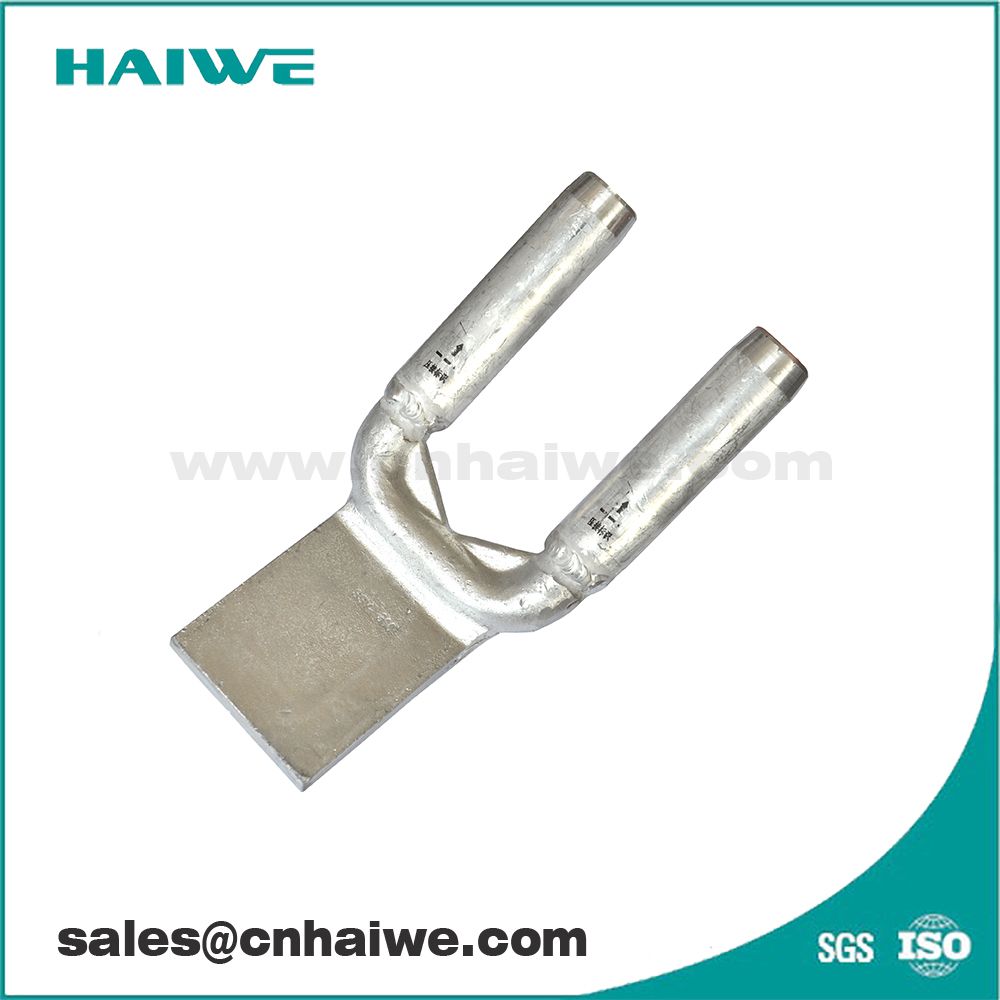

Ssy, Ssyg Aluminum-Copper Terminal Connector for Double-Bundle Conductor

Name: Ssy, Ssyg Aluminum-Copper Terminal Connector for Double-Bundle Conductor
Brand: all-electronics-online.com
SKU: 715970522
Availability: InStock
Rating: 4.6 (71 reviews)

Price:	US $ 1-10/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SSY, SSYG
OEM:	Accept
Sample:	Free
Material:	Aluminum and Copper
Application:	Power
Gender:	Connector

Product Description

SSY,SSYG Aluminum-Copper Terminal connector for Double-Bundle conductor

Application:
Terminal connectors are used to connect tap conductor to power equipments(transformer,circuit breaker,disconnect switch.etc)or to wall bushing of substation.It is suitable for connecting aluminum or copper cable to aluminum or copper flat pad. And it is normally supplied with blank palm. 1 or 2 bolt drillings can be supplied to customers' specifications.It have angle of 0° ,30°,45 °,90°.

Material:
Aluminum and copper.

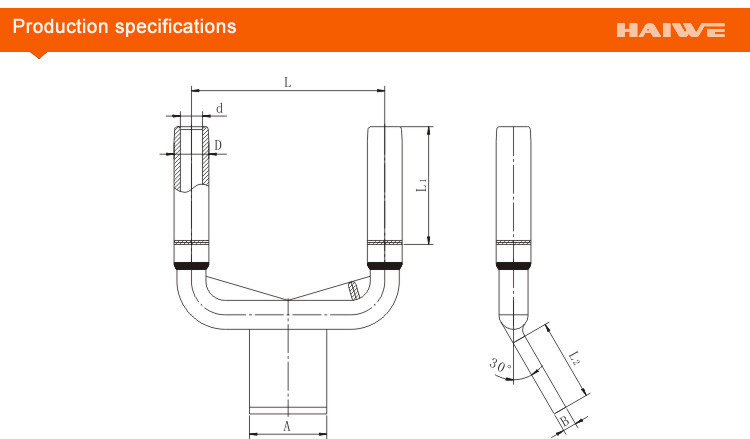

Type	Suitable conductor	Dimensions(mm)
Type	Suitable conductor	d	D	L1	L	L2	A	B
SSY(G)-185/30-120	LGJ-185/25~30	20.5	32	100	120	85	80	12
SSY(G)-185/30-200		20.5	32		200	85	80	12
SSY(G)-185/30-400		20.5	32		400	85	80	12
SSY(G)-240/40-120	LGJ-240/30~40	23	36	120	120	85	80	14
SSY(G)-240/40-200		23	36		200	85	80	14
SSY(G)-240/40-400		23	36		400	85	80	14
SSY(G)-300/40-120	LGJ-300/25~40	25.5	40		120	105	100	16
SSY(G)-300/40-200		25.5	40		200	105	100	16
SSY-300/40-400		25.5	40		400	105	100	16
SSY-400/35-120	LGJ-400/20~35	28.5	45	130	120	105	100	16
SSY-400/35-200		28.5	45		200	105	100	16
SSY-400/35-400		28.5	45		400	105	100	16
SSY-500/45-120	LGJ-500/35~45	31.5	52	140	120	130	125	20
SSY-500/45-200		31.5	52		200	130	125	20
SSY-500/45-400		31.5	52		400	130	125	20
SSY-630/80-120	LGJ-630/55~80	36.5	60	160	120	130	125	20
SSY-630/80-200		36.5	60		200	130	125	20
SSY-630/80-400		36.5	60		400	130	125	20
SSY-800/100-200	LGJ-800/55~100	40.5	65	180	200	155	150	22
SSY-800/100-400	LGJ-800/55~100	40.5	65	180	400	155	150	22

FAQ
1. How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.

2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.

3. What is the delivery time?
A: It depends on order quantity.Generally, the delivery time will be within 15 to 30 days.

4. Package information
A:For inner box and master carton are made as per international standards,and we can make special designed for you if need.And if necessary,will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box,about 1000kg per pallet

5.How long to make a sample?Is it free?
A:7 days depending on the sample's complexity.Normally,our sample is free

6.How to contact us?
A:Send your inquiry details in the below,Click "send" now!
