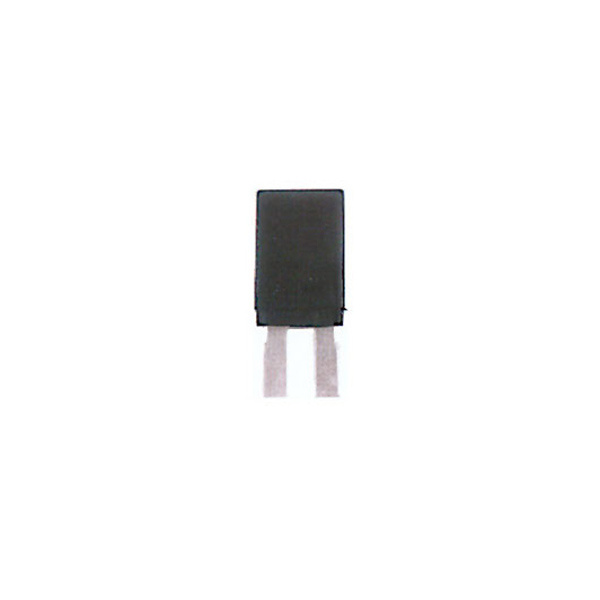

St-1011 Series Overload Short Circuit Protective Device with Reset Function

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	4
Structure:	Moulded Case Circuit Breaker

Product Description

Notes for placing order
The customer should specify the following:
1.Model,name and quantity of breaker;
2.The rated current and rated short circuit breaking current of breaker;
3.Rated operating voltage type and reted value(AC or DC);
4.Optional elements schedule;
5.Name and quantity of spare parts,components;
6.Any particular requirement should be indicated during placing order;

Specification
Model ST-1011 Rated current 2-7.5A Operating voltage 12V-250V
Dimension	Tripping curve
Tripping standards Overload percentage Trip time Overload percentage Trip time 100% No trip 500% 0.3-2.8s 150% In 1 hour 600% 0.25-2s 200% 3.0-12s 800% 0.2-1s 300% 0.8-8s 1000% 0.15-0.8s 400% 0.35-5s     Envirment temperature:25ºC
