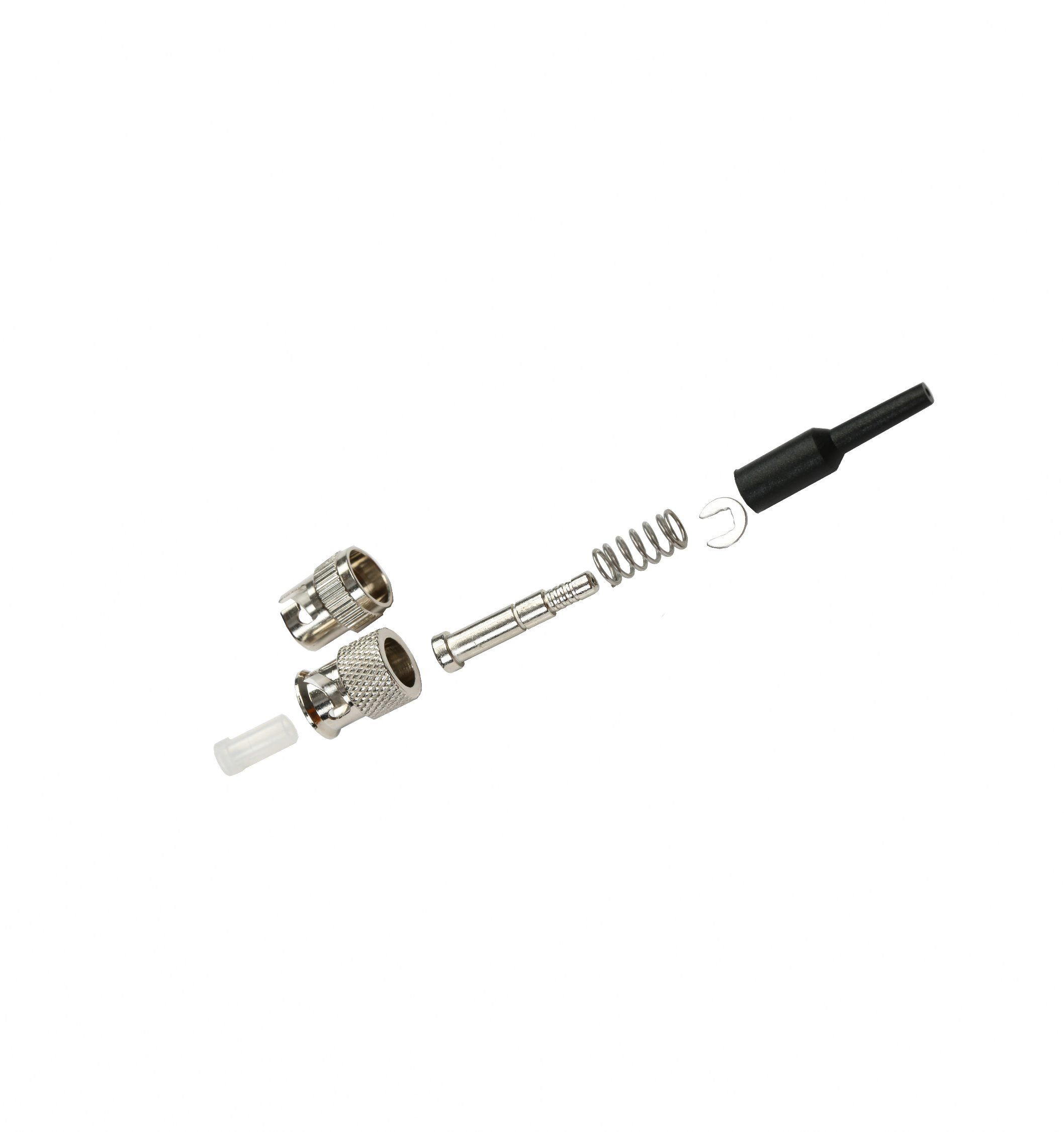

St 0.9mm Singlemode Fiber Optic Connector

St 0.9mm Singlemode Fiber Optic Connector
Price: US $ 0.7-0.8/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: ST 0.9mm
Transmission Medium: Single-Mode
Structure: ST
Number Of Cores: Single-Core
Light Source TYPE: Optical Fiber

Product Description

ST Connector, For 0.9mm Fiber, multimode/single mode

Basic Info
  • Model NO.: ST
  • Structure: ST
  • Ferrule Endface: APC/PC
  • Model Number: ST
  • Insert-Pull Test: 1000times
  • Specification: ISO9001
  • Transmission Medium: Single-Mode
  • Number of Cores: Single-Core
  • Insertion Loss: <0.2db
  • OEM is acceptable
  • Origin: Hangzhou, China (Mainland)


SPECIFICATIONS
ITEMPARAMETER
Applicative Connector TypeSC,LC,FC,ST,MU,
Fiber modeSingle modeMulti-mode
Test wavelength1310nm, 1550nm850nm, 1300nm
Insertion Losstypical≤0.20dB,Max≤0.30dBtypical≤0.15dB,Max≤0.25dB
Return LossUPC≥50.0dB,APC≥60.0dB≥35.0dB
Durability≤0.20dB typical change,1000 mating
Applicative cable OD.∮0.9mm/∮1.8mm&∮2.0mm /∮3.0mm  (MU only ∮0.9mm/∮2.0mm)
Connector Ferrule OD.∮2.5mm:SC, FC,ST,
Angle BOOTSC,LC(45 or 90 degree)
Operating Temperature-20ºC to +70ºC
Storage Temperature- 40ºC to +85ºC
Ferrule Specification125.3+1/-0μm, Concentricity: ≤1.0μm127+3/-0μm, Concentricity: ≤3.0μm








Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
