| Prod Model: |
LFD178F/ FA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Type: |
Air-Cooled, 4-Stroke, Ohv, Single Cylinder |
| Ignition System: |
Transistor Magneto |
| Start System: |
Hand Start or Electric Start |
| Certificate: |
CE / Soncap / ISO9001 |
Product Description

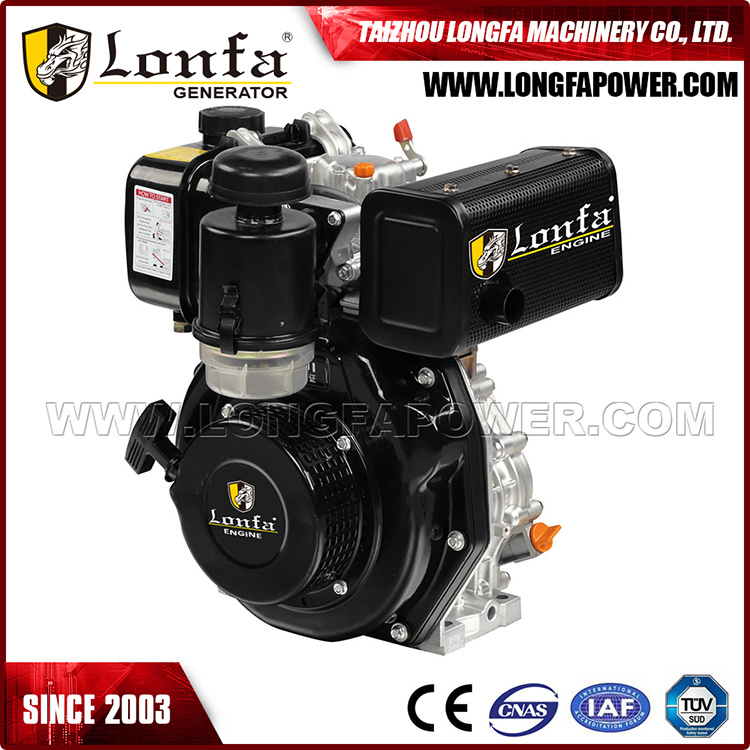

Stable Quality 6HP LONFA 178F/ FA Small Diesel Engine1. Home Power Generators Price with EPA/CE/SONCAP
2. Stable Quality
3. Hand Start(Recoil) / Key Start With Battery(E-Start) is optional
4. The voltage: 110/120/220/230/240 V
5. Power output: 1.5/1.8/2.0/2.5/2.7/2.8/3.0/3.6/4.0/4.5/5.0/5.5/6.0/6.5 KW
6.5.5-15 HP Engine
7. Copper/ Aluminium Alternator is optional
8. Single-Phase or three phase is optional
9. New type volt-meter & current- meter, with protection double panel
10. Muffler / Silencer with low noise, Motorcycle Silencer is optional
11. Cast iron Camshaft, Cast Steel Crankshaft
12. Best qualit Crankcase and Crankcase Cover
13. High Quality Carburetor
14. Galvanized shining screw, A++ grade piston
15. Strong Carton Packing, inside with Foam and Wood
| | ITEM | LF170F |
LF178F/FA |
LF186F/FA |
Diesel
Engine | Engine Type | Single cylinder, 4-stroke air-cooled diesel engine |
| Combustion system | Direct injection |
| Bore × stroke(mm) | 70×55 | 78×62/78×64 | 86×70/86×72 |
| Displacement(cc) | 211 | 296/305 | 406/418 |
| Engine speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Maximum output(HP) | 3.8 | 4.2 | 5.7 | 7 | 9 | 10 |
| Continuous output(HP) | 3.4 | 3.8 | 5.2 | 6 | 8.2 | 9 |
| Power take off | Crankshaft or camshaft (camshaft PTO rpm is 1/2) |
| Start system | Recoil / Electric (optional) |
| Fuel tank capactiy(L) | 2.5 | 3.5 | 5.5 |
| Lube oil capactiy (L) | 0.75 | 1.1 | 1.65 |
| Dimension(LWH)(mm) | 420×360×460 | 440×370×480 | 480×420×530 |
| Net weight(recoil)(kg) | 27 | 33 | 48 |
| Net weight(electric)(kg) | 32 | 38 | 53 |
| Fuel type | 0#,-10#,-20# |
| Lube oil type | CD Grade or SAE 10W-30,SAE 15W-40 |
| Option | Oil bath air cleaner |
TAIZHOU LONGFA MACHINERY CO., LTD
Located: Taizhou City, Zhejiang Province, China
Main Business: Generator, Water Pump & Engine
History: 12 years experience for manufacturing
Marketing network: Europe, Middle East, Africa, South East Asia, etc
Certificate: CCC, CE, ISO9001, SONCAP, EPA, SGS, BV
Guaranty: 12 months warranty for all products
Technology: Professional technical engineers and R&D team
Management: Scientific management and strict quality control system
Equipments: Advanced automatic production line and test equipment
Innovation: Continuously diversify products range to satisfy customers
Production capacity: 50000PCS/month
Marketing mode: 100% export business
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Taizhou City, Zhejiang Province, China, about 3 hours train from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A: Only New material can be used for our products.
Materials for Generator: 100% Pure Crankcase, 100% Pure Copper Wire
Materials for Water Pump: 100% Pure Auminium Pump body and Crankcase
4.Q:What is Minimum Order quantity?
A: MOQ 50/100 pieces for different products.
You are welcomed to consult for details.
5.Q:How does your factory do regarding quality control?
A: From the internal parts to the outside packing, we not only make standard quality test,but also think ahead for a better solution. Except company QC system, We have achieved CE & SONCAP certificate.
Lonfa is from reliable brand ANDI, ANDITIGER, which is established in beautiful seaside city of Taizhou Zhejiang, China, 2003, professional in producing generator, water pump & engine. Owning self brands ANDI, ANDITIGER, ELEFUJI etc. The products are favourable in Europe, Middle East, Africa, South East Asia, all over the world.
During the hard time of developing silent generators since factory established. Once a day, the founder went to visit a friend, when they were talking in the room, suddenly, the power stopped, the host started his back-up generator but full of noise. Immediately, a crying came from a sleeping baby, all people dropped in a mass. In that case, the founder brought a self-researched silent generator and started it, amazingly, the baby stopped crying at once, the whole room became quiet, the baby slept again with smile. It seems like all people enjoyed the nice silent generator.
Since then, the founder firmed the faith_Build number one silent generator!
