| Prod Model: |
LFD178 |
| Engine Type: |
Air-Cooled, 4-Stroke, Ohv, Single Cylinder |
| Ignition System: |
Transistor Magneto |
| Start System: |
Hand Start or Electric Start |
| Certificate: |
Ce / Soncap / ISO9001 |
Product Description

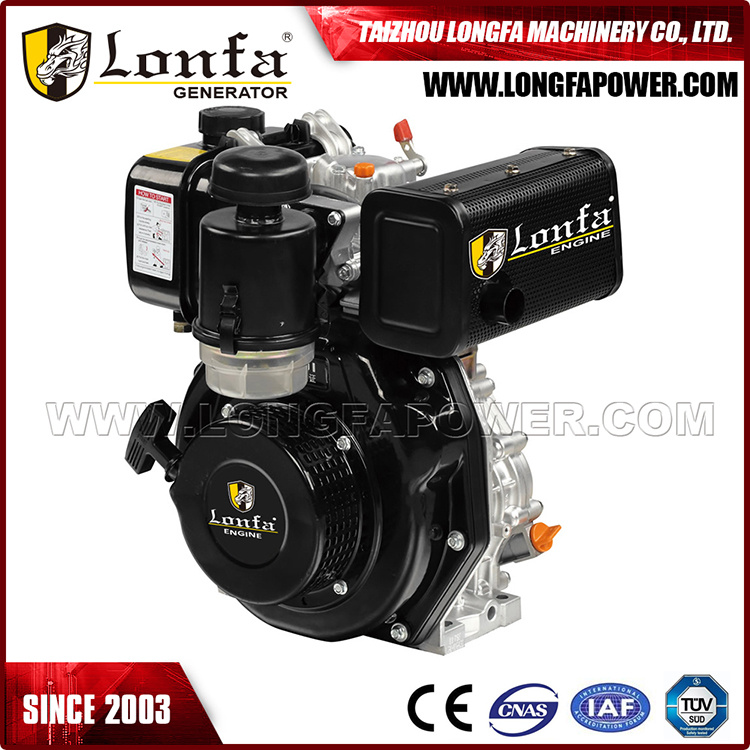

Stable Quality 7HP Small Diesel Engine for Water Pump
Specifications* With Strict Testing from Spare Parts to Whole Machine, ANDITIGER have superior durability with high performance --price ratio, it is Qualitified Stable Engine
* Large fuel tank capacity, four hours of continuous operation
* High Quality power output
* Qualified mechanical seal device
* Compact in structure and convenient for carry
* Easy starting by Recoil or E-start (Electric start)
* Special balancer shaft inside reduces the vibration to the minium level
| | ITEM | 168F | 168F-1 | 170F | 173F | 188F | 190F |
| Gasoline Engine | Engine Type | Air-cooled, 4-stroke, OHV; single cylinder |
| Bore Stroke(mm) | 68× 45 | 68× 54 | 70× 54 | 73× 58 | 88× 64 | 90× 66 |
| Displacement(cc) | 163 | 196 | 210 | 242 | 389 | 420 |
| Compression Ratio | 8.5: 1 | 8.5: 1 | 8.5: 1 | 8.2: 1 | 8.0: 1 | 8.0: 1 |
| Max. Power Output(KW) | (5.5HP)4.1 | (6.5HP)4.8 | (7.0HP)5.1 | (8HP)5.9 | (13HP)9.6 | (15HP)11 |
| Rated Power Output(KW) | (4.0HP)3.0 | (5.8HP)4.3 | (6.0HP)4.4 | (7.2HP)5.3 | (11.7HP)8.6 | (13HP)9.6 |
| Max. Torque(N. m) | 10.8 | 13.2 | 14 | 16.7 | 26.5 | 28 |
| Ignition System | Transistor magneto |
| Start system | Recoil/Electric |
| Engine Oil Capacity(L) | 0.6 | 0.6 | 0.6 | 1.1 | 1.1 | 1.1 |
| Fuel Capacity(L) | 3.6 | 3.6 | 3.6 | 6.5 | 6.5 | 6.5 |
| Min. Consumption of Fuel(g/kw. h) | 360 | 360 | 360 | 325 | 325 | 325 |
| Power Take Off | Crankshaft or Camshaft |
| Crankshaft Direction | Left |
| Dimensions(LWH)(mm) | 390× 330× 350 | 390× 330× 350 | 390× 330× 350 | 515× 420× 470 | 515× 420× 490 | 515× 420× 490 |
| Net Weight(kg) | 16 | 16 | 15 | 25 | 31 | 31 |
| Air cleaner | Semi-dry; Oil bath; Dual |
TAIZHOU LONGFA MACHINERY CO., LTD
Located: Taizhou City, Zhejiang Province, China
Main Business: Generator, Water Pump & Engine
History: 12 years experience for manufacturing
Marketing network: Europe, Middle East, Africa, South East Asia, etc
Certificate: CCC, CE, SGS, BV, ISO9001, SONCAP, EPA
Guaranty: 12 months warranty for all products
Technology: Professional technical engineers and R&D team
Management: Scientific management and strict quality control system
Equipments: Advanced automatic production line and test equipment
Innovation: Continuously diversify products range to satisfy customers
Production capacity: 50000PCS/month
Marketing mode: 100% export business
1.Q:What is the Quality Warranty for the products?
A:We offer 1 year quality warranty for all of our products.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Taizhou City, Zhejiang Province, China, about 2 hours train from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A: Only New material can be used for our products.
Materials for Generator: 100% Pure Crankcase, 100% Pure Copper Wire
Materials for Water Pump: 100% Pure Auminium Pump body and Crankcase
4.Q:What is Minimum Order quantity?
A: MOQ 50/100 pieces for different products.
You are welcomed to consult for details.
5.Q:How does your factory do regarding quality control?
A: From the internal parts to the outside packing, we not only make standard quality test,but also think ahead for a better solution. Except company QC system, We have achieved CE & SONCAP certificate.Stable Quality 7HP LONFA 178F/ FA Small Diesel Engine
