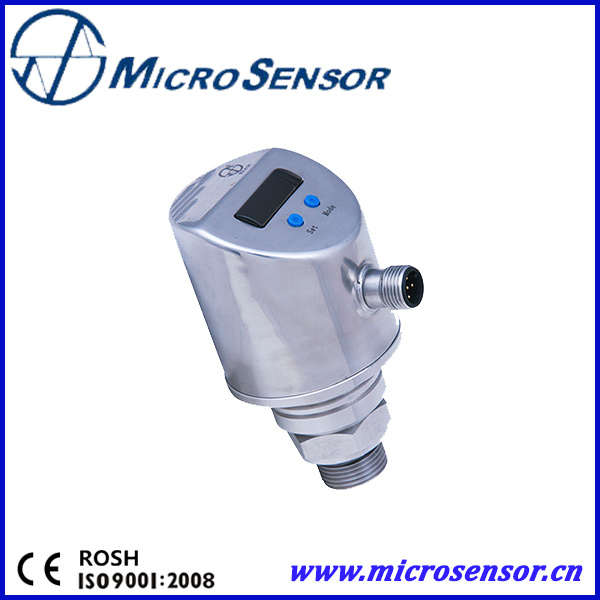

Stainless Steel Compact Flow Switch with IP67 MFK5081
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
MFK5081 |
| Measure Range: |
1cm/S-150cm/S(Water) |
| Switch Accuracy: |
+_10cm/S |
| Power Supply: |
(220+-44)V AC (24+-4.8)V DC |
| Housing: |
Ss |
| Protection: |
IP67 |
| Storage Temp: |
-30-85c |
| Working Temp: |
-20-70c |
| Compansated Temp.: |
5-80c |
| Display: |
OLED |
| Probe: |
PP |
Product Description
Stainless Steel Compact Flow Switch with IP67 MFK5081
Features:- Stainless Steel;
- Compact Size;
- IP67 protection;
- Display: OLED;
SpecificationMeasure Range: 1cm/s~150cm/s (water);
Optimal Range: 3cm/s~100cm/s (water)
Power Supply: (220±44)V AC;
(24±4.8)V DC
Working Current: ≤ 60mA
Switch accuracy: ±10cm/s
Hysteresis: ±2cm/s~±8cm/s
Initial time: 2s~15s,8s(typ.)
Switch-off Time: 1s~15s,2s(typ.)
Switch-on time: 1s~13s,2s(typ.) | Output signal: 1 relay2-way PNP2-way NPN (optional)
Output Function: NO,NC (optional)
Relay Characters:
Switch voltage: ≤ 250V AC / 30V DC
Switch Current: ≤3A;
Transistors Characters:
Switch Voltage Drop:≤ 1.5V
Switch Current: ≤ 400mA
Display: OLED indicator,resolution 128×32
Electric Protection: Reverse, short-circuit, over-voltage | |
Housing: S.S.
Button: PP
Probe: S.S.
Installation: Joint mounting + adaptor
Endurance Pressure: 10MPa
Set: Button
Electric Connection: M12×1 5-pin plug
Gross weight : 265g | Water Temp. : -20ºC~80ºC
Storage Temp. : -30ºC~85ºC
Working Temp. : -20ºC~70ºC
Protection: IP67
Temperature Compensation: 5ºC~80ºC(water)
Electromagnetic Compatibility:
GB/T 17626.2/3-2006, GB/T 17626.4-2008
Shock: ≤ 20g (GB/T 2423.10-2008)
Impact:≤ 50g/11ms (GB/T 2423.5-1995) |
Order Guide| MFK5081 | Flow Switch |
| | | Code | Others |
| | DC | 24V DC |
| | AC | 220V AC (relay only) |
| | | | Code | Pressure Connection |
| | C1 | M20×1.5 male adaptor (MS601) |
| | C3 | G1/2 male adaptor (MS602) |
| | | Code | Output |
| J | 1×Relay Output |
| P | 2×PNP Transistor Output (24V DC only) |
| N | 2×NPN Transistor Output (24V DC only) |
| | | Code | Probe Length |
| L1 | 18mm |
| L2 | 28mm |
| L3 | 40mm |
| L4 | 68mm |
| | | | |
| MFK5081 DC C3 J L1 Whole Spec. |
Optional accessories: MS901 2m 5-pin M12×1 Female Elbow RVVP Cable(Standard)
MS601 M20×1.5 male adaptor
MS602 G1/2 male adaptor
Notes
1. Pressure port can be customized for users. Please note in the purchase order.
2. If users have special requirement, please contact us freely.
Order Guide| MFK5081 | Flow Switch |
| | | Code | Others |
| | DC | 24V DC |
| | AC | 220V AC (relay only) |
| | | | Code | Pressure Connection |
| | C1 | M20×1.5 male adaptor (MS601) |
| | C3 | G1/2 male adaptor (MS602) |
| | | Code | Output |
| J | 1×Relay Output |
| P | 2×PNP Transistor Output (24V DC only) |
| N | 2×NPN Transistor Output (24V DC only) |
| | | Code | Probe Length |
| L1 | 18mm |
| L2 | 28mm |
| L3 | 40mm |
| L4 | 68mm |
| | | | |
| MFK5081 DC C3 J L1 Whole Spec. |
Optional accessories: MS901 2m 5-pin M12×1 Female Elbow RVVP Cable(Standard)
MS601 M20×1.5 male adaptor
MS602 G1/2 male adaptor
