Stainless Steel Submersible Level Transmitter Mpm426W

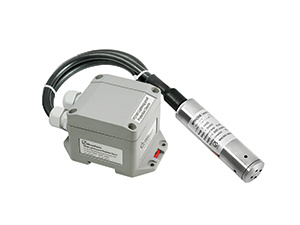

Name: Stainless Steel Submersible Level Transmitter Mpm426W
Brand: all-electronics-online.com
SKU: 741742815
Availability: InStock
Rating: 4.4 (22 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM426W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Stable Level Measurement:	200mh2o
Key Word:	Submersible Level Transmitter
Housing:	Stainless Steel
Storage Temperature:	-40~100c
Protection:	IP68
Certificate:	CE
Patent Number:	Zl00226955.4
Output Signal:	4~20madc
Over Pressure:	1.5 Times Fs
Stability Error:	0.1%Fs(Typ.)

Product Description

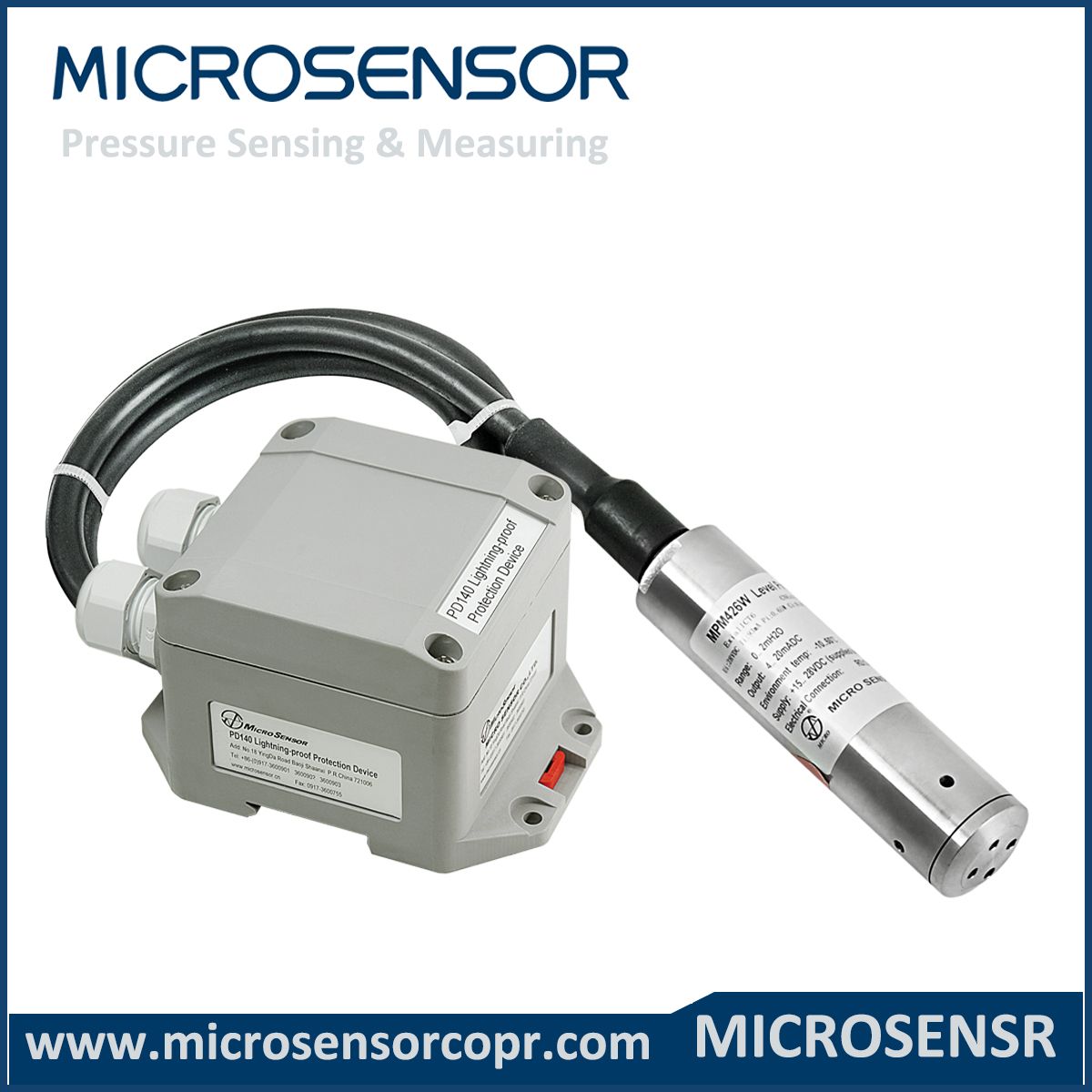

Submersible Level Transmitter MPM426W

Features:
1. Submersible;
2. 2-Wire
3. Water-proof connecting box;
4. Removable top cap;
5.IP68 protection

Certificates:
1.CE;
2.Exia IICT6;
3.Ship-use

Applications:
1.Oil;
2.Chemical industry;
3.Power Station;
4.City water;
5.Level measurement;
6.Drainage and hydrology

Description:
MPM426W Submersible Level Transmitter has high accuracy, compact size and other advantages.It can be widely used for water and level measurement in petroleum, chemical industry, power station, city water supply and drainage and hydrology, etc.

Specifications:

Range	MPM426W		1 2 5 10 20 50 100 200mH2O
	MPM436W		0.5 1 2mH2O
Overpressure	1.5 times FS (MPM436W: 10 times FS)
Accuracy	MPM426W		+ 0.25%FS(typ. ) + 0.5%FS(max. )
	MPM436W		+ 0.5%FS (min. ) + 1.0%FS(max. )
Stability error	MPM426W		+ 0.1%FS(typ. ) + 0.2%FS(max. ) range> 20mH2O
			+ 10mmH2O(typ. ) + 20mmH2O(max. ) range≤ 20mH2O
	MPM436W		+ 5mmH2O(typ. )
Temp. drift	MPM426W				Zero drift, %FS/º C					Sensitivity drift, %FS/º C
			Range> 10mH2O		0.005(typ. )			0.01(max. )		0.02(max. )
			Range≤ 10mH2O		0.01(typ. )			0.02(max. )		0.02(max. )
			Range≤ 5mH2O		0.015(typ. )			0.03(max. )			0.02(max. )
			Range≤ 2mH2O		0.025(typ. )			0.05(max. )			0.02(max. )


Transmitting ©	2-wire						3-wire		3-wire
Power supply	15~30VDC ( Intrinsic safe version is supplied through safe barrier)						15~28VDC		15~28VDC
Output signal	4~20mADC						0~10/20mADC		0/1~5/10VDC
Load (Ω )	< (U-15)/0.02A*						< (U-15)/0.02A		> 5k
Material contacting with media		Housing: SS lCr18Ni9Ti				Seal parts: Viton
		Rubber casing: NBR				Cable: Φ 7.5mm PVC/Polyurethane cable with vented tube
		Diaphragm: SS 316L(MPM426W); 96% alumina ceramic(MPM436W)
Operation temp.		MPM426W		-10º C ~80º C; Intrinsic safe version: -10º C ~60º C

Storage temp.		-40º C ~100º C (MPM426W)
Protection		IP68 (sensor part); IP65 (connection box)
Ex-proof class		ExiaIICT6

Ship-use

Fixed flange

MPM426W [0~3mH2O]5 E 22 YiC1 the whole spec

Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.

With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.

Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.

Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.

Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
