Stamping Copper Ring Terminals Rnb2-3.2

Name: Stamping Copper Ring Terminals Rnb2-3.2
Brand: all-electronics-online.com
SKU: 767648075
Availability: InStock
Rating: 4.7 (146 reviews)

Price:	US $ 0.011/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Rnb2-3.2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Single Hole Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Brand:	Jwl

Product Description

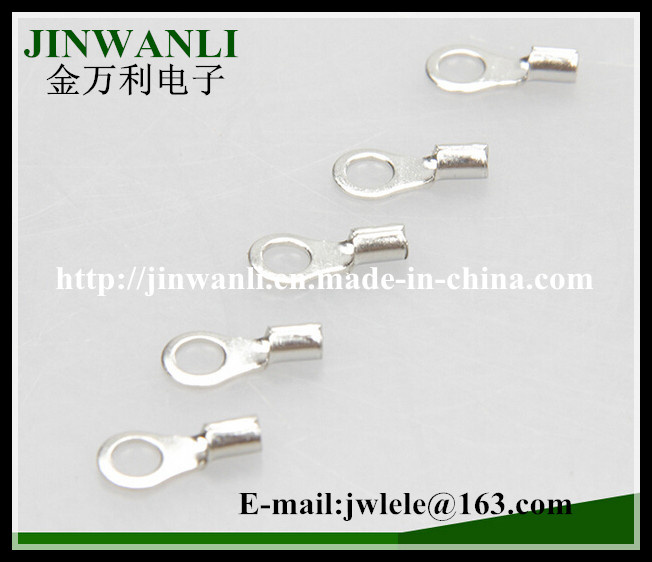

Non-Insulated naked Ring Terminal

1) Application: According to US, JP, German standard, widely used in machinery, spinning, electric power, ailway, shipbuilding, spaceflight & avition, light industry, household electrical, computers, auto-equipment and etc.

2) Processing: Cold press

3) Material:T2 copper with tinned surface, cridible conductivity

4) Certificate: ISO9001-2008

5) Manufacturer: price advantage, quick delivery

0.5 - 1.5 mm² (USA Spec 22 - 16 )   Imax = 19A
1.5 - 2.5 mm² (USA Spec 16 - 14)   Imax = 27A
2.5 - 4 mm² (USA Spec 14 - 12)   Imax = 37A
4 - 6 mm² (USA Spec 12 - 10)   Imax = 48A

Dimensions

Item No	Us-made bolt number	Bolts diameterd	Introduction
Item No	Us-made bolt number	Bolts diameterd	Introduction
RNB1.25-3.2	#4	3.2	Size of cable:0.5~1.5mm2(American standard22~16) Max.current=19A
RNB1.25-5	#10	5.3
RNB1.25--20	3/4	21.0
RNB2-3.2	#4	3.2	Size of cable:1.5~2.5mm2(American standard16~14) Max.current=27A
RNB2-6	1/4	6.5
RNB2-20	3/4	21.0
RNB3.5-4	#8	4.3	Size of cable:2.5~4mm2(American standard14~10) Max.current=37A
RNB3.5-8	5/16	8.4
RNB5.5-10	3/8	10.5	Size of cable:4~6mm2(American standard(12~10) Max.current=48A
RNB5-16	5/8	17.0
RNB8-10	3/8	10.5	Size of cable:6~10mm2(American standard(8) Max.current=62A
RNB14-5	#10	5.3	Size of cable:10~16mm2(American standard(6) Max.current=88A
RNB14-12	1/2	13.0	Size of cable:10~16mm2(American standard(6) Max.current=88A
RNB22-5L	#10	5.3	Size of cable:16~25mm2 (American standard(4) Max.current=115A
RNB22-6L	1/4	6.5
RNB38-6	1/4	6.5	Size of cable:35mm2 (American standard(2) Max.current=160A
RNB38-8L	5/16	8.4
RNB38-12	1/2	13.0
RNB60-8	5/16	17.0	Size of cable:50-70mm2American standard(1/0) Max.current=215A
RNB60-12	1/2	13.0
RNB60-22	7/8	23.0
RNB70-6	1/4	6.5	Size of cable70mm2 (American standard(2/0) Max.current=235A
RNB70-16	5/8	17.0	Size of cable70mm2 (American standard(2/0) Max.current=235A
RNB80-20	3/4	21.0	Size of cable:4~6mm2 (American standard(12~10) Max.current=255A
RNB100-6	1/4	6.5	Size of cable:120mm2 (American standard(4/0) Max.current=300A
RNB100-14	9/16	15.0
RNB100-18	5/8	19.0

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
