Standalone Multiple Gnss Smart Antenna Module

Name: Standalone Multiple Gnss Smart Antenna Module
Brand: all-electronics-online.com
SKU: 803345615
Availability: InStock
Rating: 4.7 (49 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LS2003E-G
Type:	GPS Tracker
Use:	Automotive&Hand Held
Operating Principle:	Interferometric Type
Port Number:	Multiplex Multi-purpose Channel
Model:	Integration Type
Screen Size:	5.0"
Carrier Frequency:	Dual-Frequency

Product Description

Company Profile
Shenzhen Universe Communication Tech. Limited was established in 2002. It's a high technology firm which is concentrated on R&D, producing, and selling GPS, BEIDOU, GLONASS, telecommunication,navigation,aviation and base station antenna.We are in possession of R&D capability of more 100 kinds of product categories per year. We not only customize various types of antennas according to customers' requirements ,but also provide complete technical support and a complete set of solutions.Both the quality and price of our products are competitive.We also deliver goods in time and provide perfect after sale service.

Specification

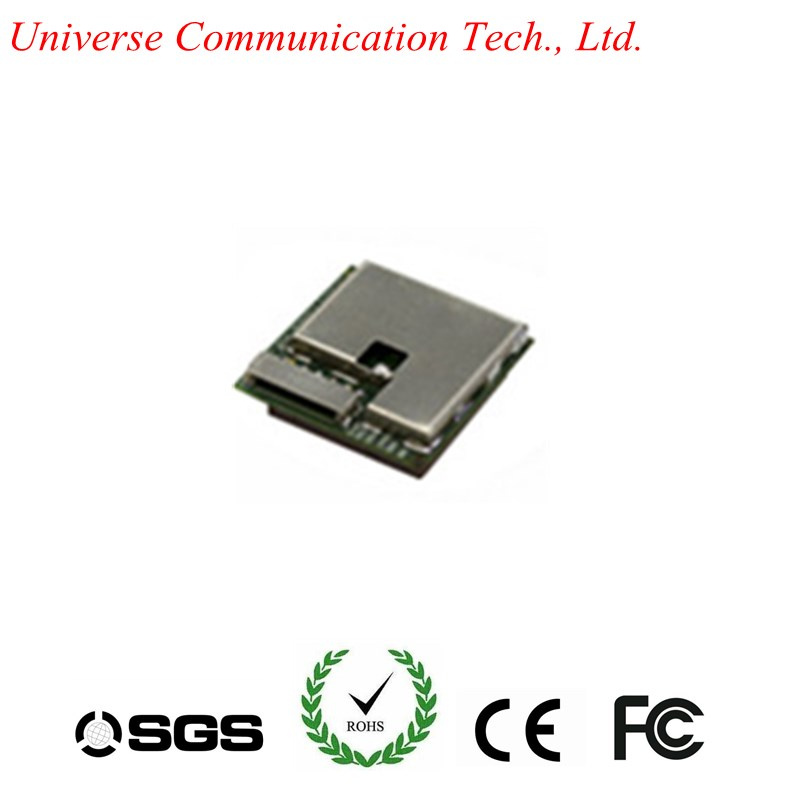

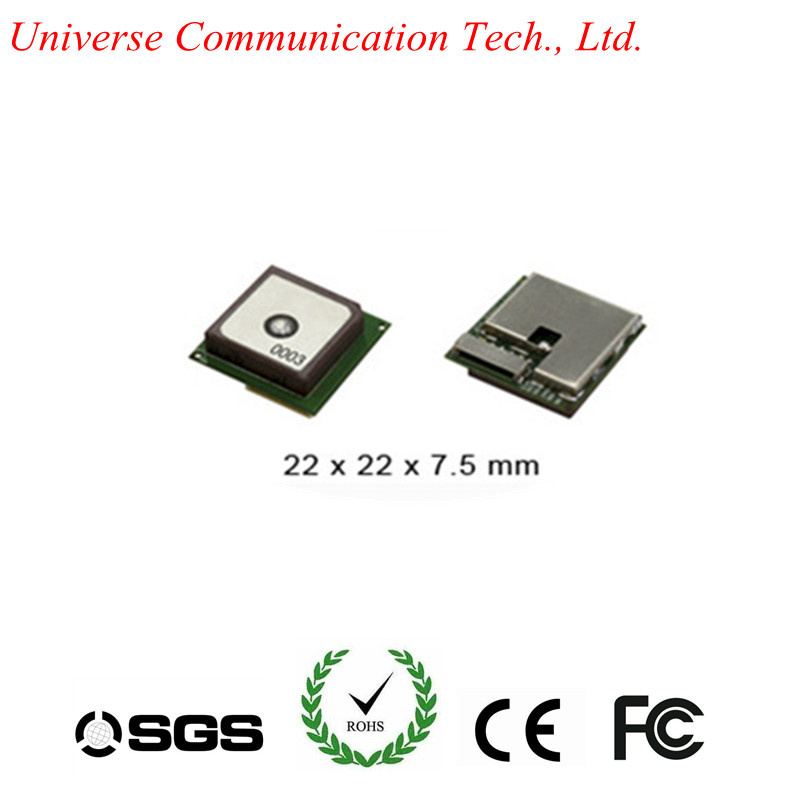

LS2003E-G is a complete standalone GNSS smart antenna module, including embedded patch antenna and GNSS receiver circuits. The module can simultaneously acquire and track multiple satellite constellations that include GPS, GLONASS, GALILEO, QZSS and SBAS. It features low power and small form factor. Besides, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment.
This module supports hybrid ephemeris prediction to achieve faster cold start. One is self-generated ephemeris prediction (called EASY) that is no need of both network assistance and host CPU's intervention. This is valid for up to 3 days and updates automatically from time to time when GNSS module is powered on and satellites are available. The other is server-generated ephemeris prediction (called EPO) that gets from an internet server. This is valid for up to 14 days. Both ephemeris predictions are stored in the on-board flash memory and perform a cold start time less than 15 seconds.
It is easy to install without both RF connector and coaxial cable that are needed in a separated GNSS active antenna. In other words, reduce the cost and size. Also, speed up the time to market by eliminating R&D efforts on RF matching and stability between separated GNSS antenna and module. Furthermore, it can be directly powered by a lithium battery without any external voltage regulars. Therefore, LS2003E-G of miniature size and brilliant performance is the best choice to be integrated into your slim devices.

Features

MediaTek high sensitivity solution
Support GPS, GLONASS, GALILEO and QZSS
Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN)
Support 99-channel GNSS
Ultra low power consumption
Fast TTFF at low signal level
Built-in 12 multi-tone active interference canceller
Free hybrid AGPS to achieve faster cold start
Built-in data logger
Built-in DC/DC converter to save power
Allow direct connection with the lithium battery
Up to 10 Hz update rate
±11ns high accuracy time pulse (1PPS)
Indoor and outdoor multi-path detection and compensation
RoHS compliant

Application

Personal positioning and navigation
Automotive navigation
Marine navigation
Weather balloon

Gps Receiver

Chip	MTK MT3333
Frequency	GPS, GALILEO, QZSS: L1 1575.42MHz, C/A code GLONASS: L1 1598.0625MHz ~ 1605.375MHz, C/A code
Channels	Support 99 channels (33 Tracking, 99 Acquisition)
Update rate	1HZ default, up to 10Hz
Acquisition Time	Hot start(Open sky)	<1s (typical)
	Cold start(Open sky)	34s(typical) without AGPS
		<15s (typical) with self-generate orbit prediction
Position Accuracy	Autonomous	3m(2D RMS)
	SBAS	2.5m (depends on accuracy of correction data)
Datum	WGS-84(default)
Max. Altitude	< 18,000 m, up to 50,000m by request
Max. Velocity	<515m/s
Protocol Support	NMEA 0183 ver 4.10	9600bps⁽¹⁾, 8 data bits, no parity, 1 stop bits(default) 1Hz: GGA, GLL, GSA, GSV, RMC, and VTG

Note 1: Both baud rate and output message rate are configurable.

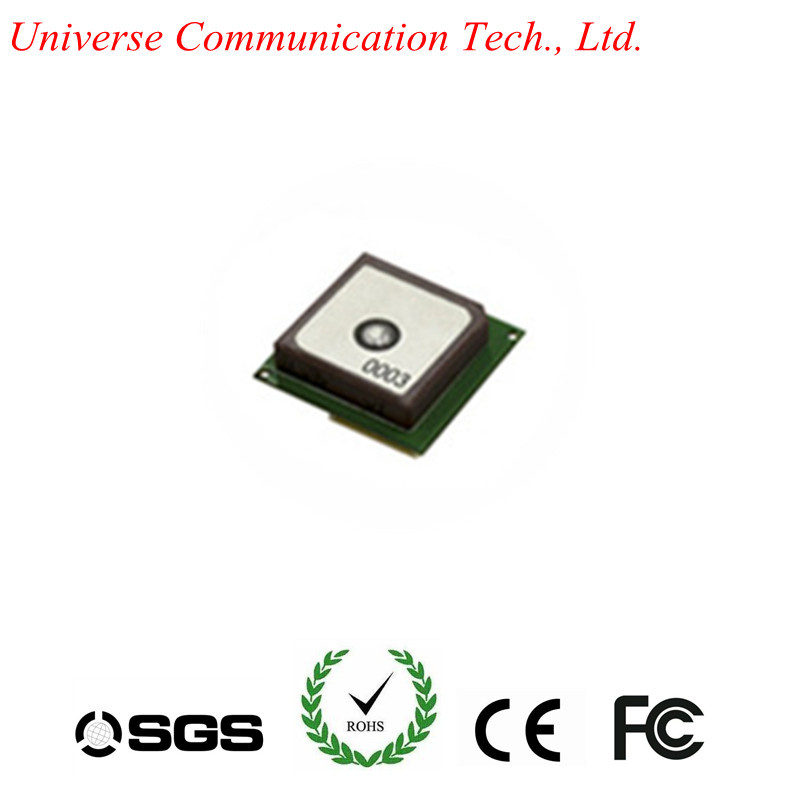

GPS Antenna

Antenna Type	Patch Antenna
Frequency Range	1575.42MHz ± 1.023MHz⁽¹⁾ 1598MHz~1606MHz⁽¹⁾
Gain	0.7 dBic Typ. @zenith⁽¹⁾

Note 1: This value is measured with the evaluation board and must be fine tuned when
installed into your device. Please contact us for your antenna tuning.

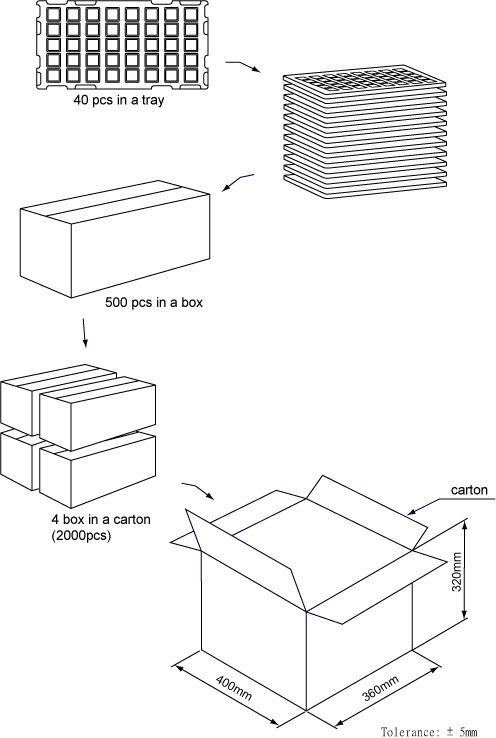

Packing Information

Shenzhen DeLin Communication Technology Co., Ltd. (formerly: Shenzhen Universe Communication Tech. Limited) is located in the beautiful coastal city--Shenzhen. Shenzhen is the leader of Chinese electronic technology, is also the world's electronic technology bridge. It has a unique geographical location and innovative spirit. DeLin Communication (parent company is Gaoke Zhong Shi Telecommunication Technology Co., Ltd. Which is established in 1993) is a professional high-tech enterprise which engaged in wireless mobile communications and satellite communication products development, production and sales. We have a group of pioneering, creative and experienced management personnel, more than 200 staffs, and 20% of them are bachelor and master's degree or higher.

The company's professional R & D team continues to introduce and R&D new products to connect with international market. Our company is committed to the design, development and production of wireless, satellite communication products. It is a professional enterprise of communication solution design and production. Our company focuses on development and production of antenna series, module series, application solutions, and application terminals. Our products are widely used in mobile phones, mobile base stations, automotive equipment, security, walkie-talkie, car networking, Internet of things, navigation, aviation, air-conditioning, detection and other wireless terminals and other fields. It so far has designed and manufactured for thousands of companies at home and abroad.

DeLin Communication Co., Ltd., as the marketing strategy management leader of parent company, bears the responsibility and performance, and also is the sales(agent) of well-known brands at home and abroad at the same time.
