Standard 4 Layer PCB White Solder Mask with 1.6mm Thick

Name: Standard 4 Layer PCB White Solder Mask with 1.6mm Thick
Brand: all-electronics-online.com
SKU: 822447125
Availability: InStock
Rating: 4.5 (71 reviews)

Price:	US $ 1.12/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC1299R3.8
Surface Finish:	HASL Lead Free
Board Thick:	1.6mm
Outer Copper Foil:	42.56um(1 Oz)
Solder Mask Color:	White
Min Line Width (Mil):	8.2 Mil
Min Line Spacing (Mil):	5.8 Mil
Legend Color:	Black
Forming:	V-Cut
Warp-Twist:	0.28%
Test:	Electronic Test
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

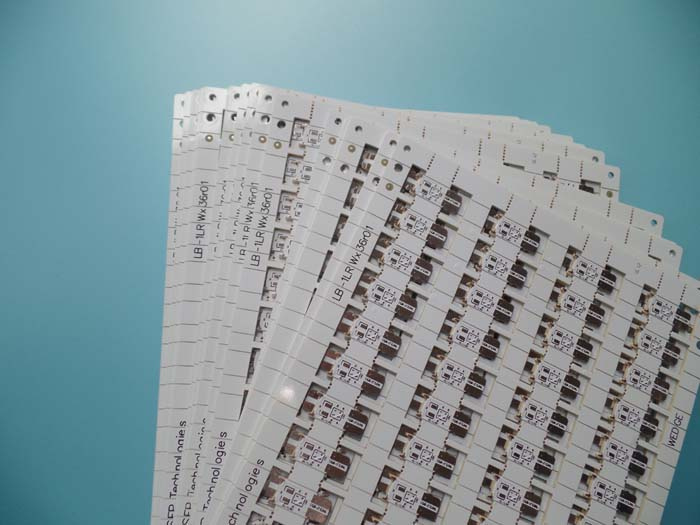

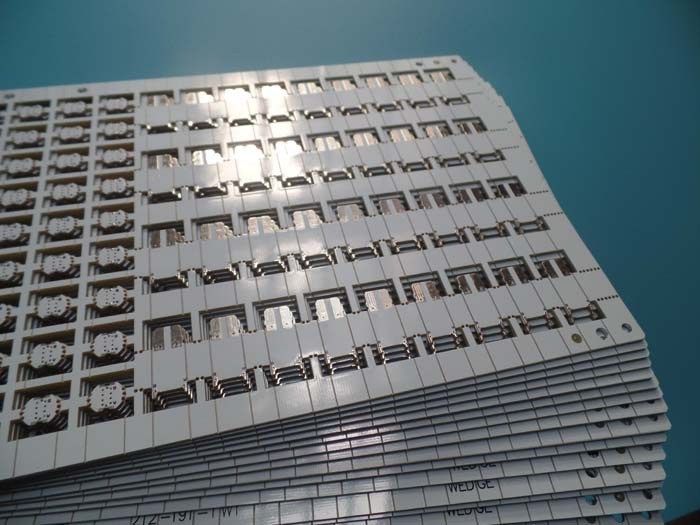

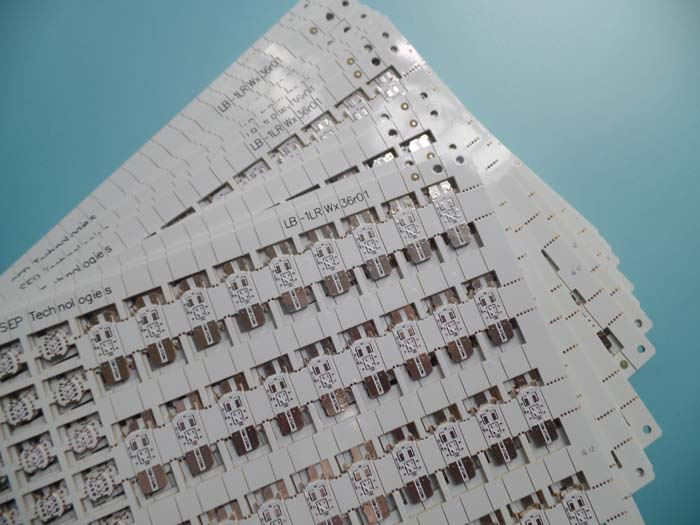

Standard 4 Layer PCB White Solder Mask with 1.6mm thick

Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 4 layer board at 1.6mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Kuang Shun and Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4	FR-4
	Supplier	ITEQ	ITEQ
	Board thickness	1.60±10% mm	1.60-1.65mm
	Outer copper foil	>=35 um	42.56um
	Inner copper foil	H/H OZ	H/H OZ
	Warp-twist	<= 0.75%	0.28%
Legend	Type	IJR-4000 MW300	IJR-4000 MW300
	Color	Black	Black
	Location	CS & SS	CS & SS
Marking	Co.logo	YES	OK
	UL.logo	YES	OK
	Date code	WWYY	WWYY
	Marking form	NA	OK
	Location	CS	CS
Min line width (mil)		8	8.2
Min line spacing (mil)		6	5.8
Min ring width (mil)		NA	NA
Solder Mask	Type	KUANGSHUN	KUANGSHUN
	Color	White	White
	Thickness	>=10 um	14um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	HASL		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK
