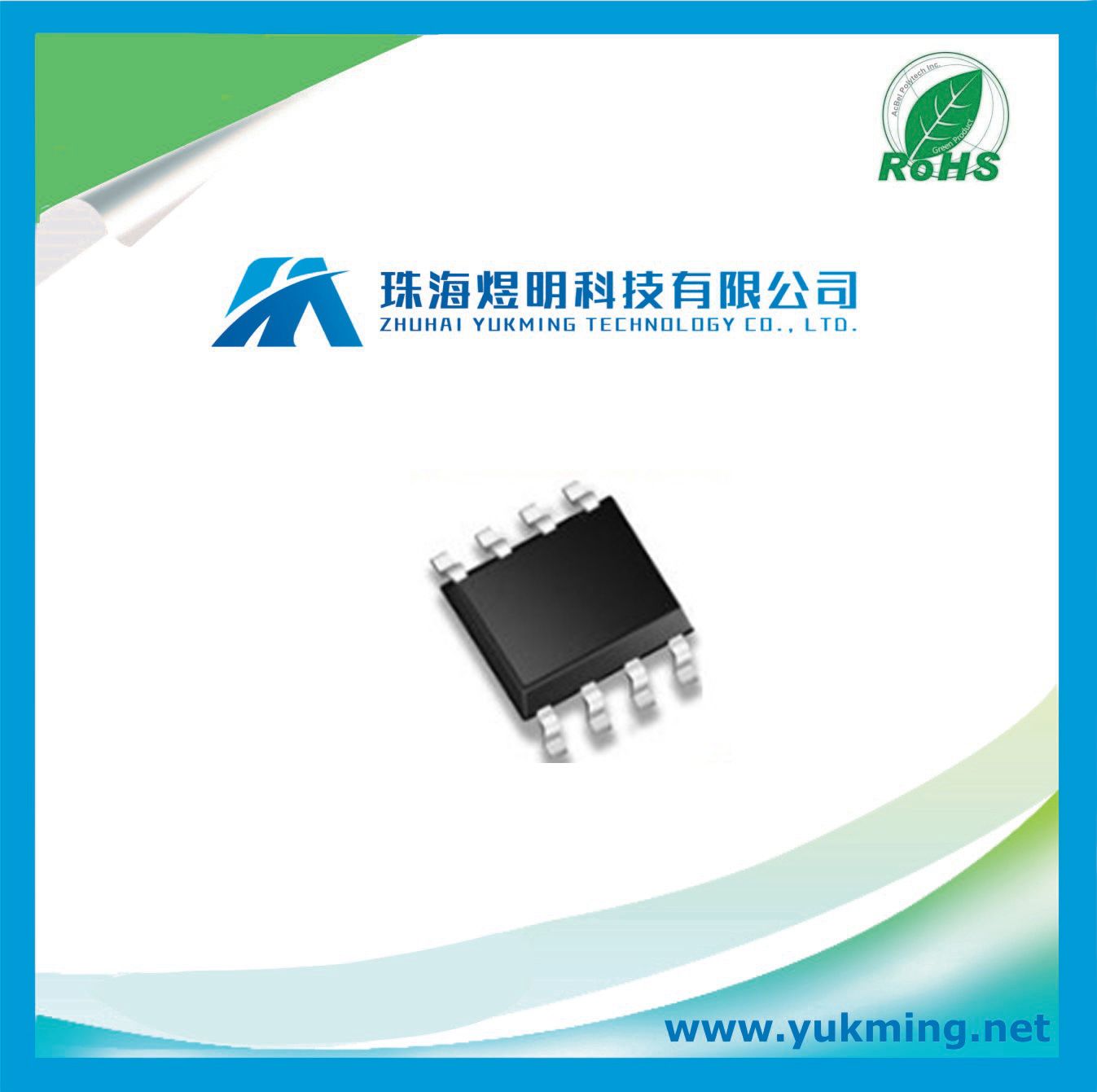

Standard Voltage Regulator IC Integrated Circuit L78L05acd

Name: Standard Voltage Regulator IC Integrated Circuit L78L05acd
Brand: all-electronics-online.com
SKU: 799220595
Availability: InStock
Rating: 4.7 (26 reviews)

Price:	US $ 0.2-2.5/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	L78L05ACD
Number Of Outputs:	1
Output Voltage (V):	5
Maximum Output Current (a):	0.1
Maximum Input Voltage (V):	30
Line Regulation:	150mv
Load Regulation:	60mv
Maximum Quiescent Current (Ma):	6
Operating Temperature Range:	0 to 150 Deg C

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

SPECIFICATIONS
EU RoHS Compliant
Type Standard
Number of Outputs 1
Output Type Fixed
Output Voltage (V) 5
Polarity Positive
Maximum Output Current (A) 0.1
Maximum Input Voltage (V) 30
Typical Dropout Voltage @ Current (V) 7@60mA
Line Regulation 150mV
Load Regulation 60mV
Maximum Quiescent Current (mA) 6
Special Features Short Circuit Protection|Thermal Shutdown Protection
Minimum Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
PCB changed 8
Standard Package Name SOIC
Supplier Package SO N
Pin Count 8
Lead Shape Gull-wing
POSITIVE VOLTAGE REGULATORS

FEATURES
OUTPUT CURRENT UP TO 100 mA
OUTPUT VOLTAGES OF 3.3; 5; 6; 8; 9; 10;
12; 15; 18; 20; 24V
THERMAL OVERLOAD PROTECTION
SHORT CIRCUIT PROTECTION
NO EXTERNAL COMPONENTS ARE
REQUIRED
AVAILABLE IN EITHER ±5% (AC) OR ±10%
(C) SELECTION

DESCRIPTION
The L78L00 series of three-terminal positive
regulators employ internal current limiting and
thermal shutdown, making them essentially
indestructible. If adequate heat-sink is provided,
they can deliver up to 100 mA output current. They
are intended as fixed voltage regulators in a wide
range of applications including local or on-card
regulation for elimination of noise and distribution
problems associated with single-point regulation.
In addition, they can be used with power pass
elements to make high-current voltage regulators.
The L78L00 series used as Zener diode/resistor
combination replacement, offers an effective
output impedance improvement of typically two

Any items you need, please send the BOM List to us, we will for sure to supply you not only with new and original products but also the best service by our professional team who are with us since our head office in Shenzhen was set up in 2009!

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
