STC-8080A+ All-purpose Thermostat /Temperature Controller/Digital Thermostat

Name: STC-8080A+ All-purpose Thermostat /Temperature Controller/Digital Thermostat
Brand: all-electronics-online.com
SKU: 620003224
Availability: InStock
Rating: 4.5 (38 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	STC-8080A+
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
To Measure,:	Display and Control Temperature
Defrosting Cycle:	and Defrosting Time Is Adjustable
Power Supply:	220VAC +10%-15%, 50/60Hz
Power Consumption:	≤ 3W

Product Description

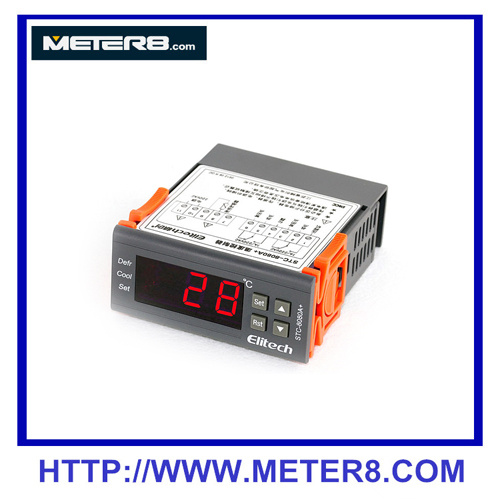

All-purpose Thermostat /Temperature Controller STC-8080A+

General:

STC-8080A is a universal temperature controller with single sensor, spcify

All the functions as refrigerating, defrosting, alarming when temperature

Exceeds setting limit.

Compressor delay protection time is solidified as 3 minutes, controlled

Start up and close accoring to the solidified proportional time when sensor

Error, which can be applied to the industries such as cold storage, refrigerator car, etc.

Main Functions:

1. To measure, display and control temperature

2. Defrosting cycle and defrosting time is adjustable

3. Alarm when temperature exceeds settling temperature limit value.

4. Compressor start up delay protection

5. Compressor work as scheduled time when sensor error

Specification and Size:

Front panel size: 75mm( length) X 34.5mm (width)

Installing hole size: 71mm( length) X 29mm ( width)

Product size: 71mm (length) X 34.5mm (width) X 85mm (depth)

Sensor wire length: 2 meters (including the probe)

Technical Parameters:

Power supply: 220VAC +10%-15%, 50/60Hz

Power consumption: ≤ 3W

Temperature measuring range: -50C to 99C

Temperature controlling range: -40C to 50C

Resolution: 1C

Accuracy: ± C when tempeature -40C to 50C, ± 2C at others

Relay capacity of compressor: 7A/220VAC

Relay capacity of defroster: 7A/220VAC

Sensor type: NTC sensor

Front panel safa level: IP64

Operating temperature: 0C to 60C

Relative humidity: 20% to 85% ( No condensate)

Storage temperature: -30C to

MOQ	100 pcs
Supplying ability	5000pcs
Packaging	60pcs/cn, 42.53033.5cm, 20KG,
