Steel Weatherproof Distribution Box / Terminal Box

Name: Steel Weatherproof Distribution Box / Terminal Box
Brand: all-electronics-online.com
SKU: 770516985
Availability: InStock
Rating: 4.6 (50 reviews)

Price:	US $ 20-200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Silver

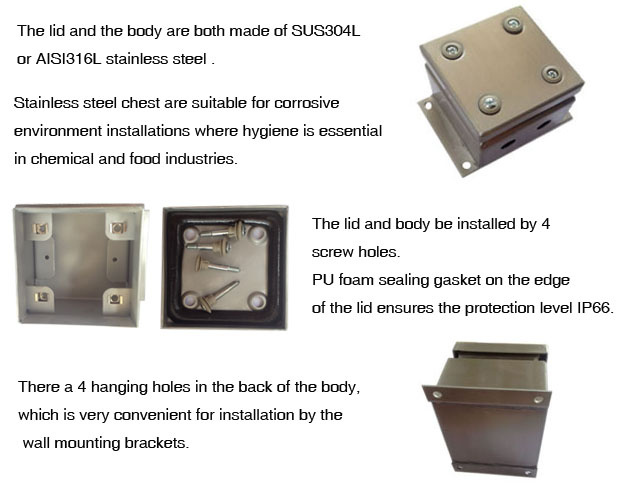

Material:	SUS304 or AISI316 Stainless Steel
Surface Finish:	Wire Drawing Finish
Whether The OEM:	Yes
Thickness:	1.2mm
Type:	Distribution Metering Box
Structure:	Protection
Certification:	ISO9001:2008,RoHS
Application Range:	Electrical Distribution
Shell Protection Grade:	IP66
Brand:	Prota

Product Description

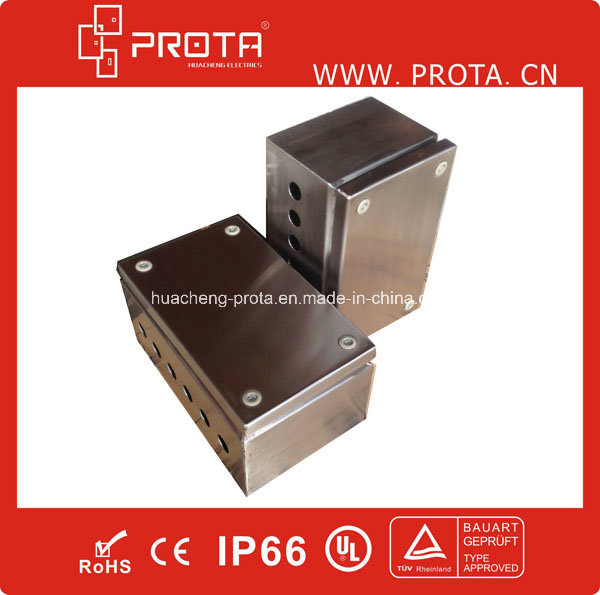

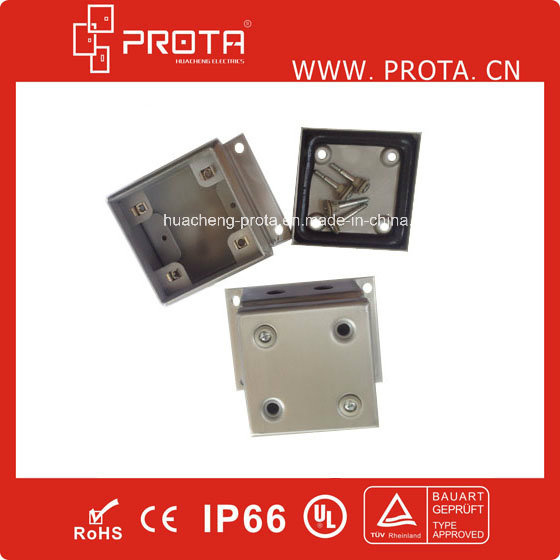

Steel Weatherproof Distribution Box / Terminal Box

Selection Table

Model	W(mm)	H(mm)	D(mm)
PLX15158	150	150	80
PLX151512	150	150	120
PLX20158	200	150	80
PLX201512	20	150	120
PLX20208	200	200	800
PLX202012	200	200	120
PLX30158	300	150	80
PLX301512	300	150	120
PLX30208	300	200	80
PLX302012	300	200	120
PLX303012	300	300	120
PLX401512	400	150	120
PLX40208	400	200	80
PLX402012	400	200	120
PLX403012	400	300	120
PLX404012	400	400	120
PLX502012	500	200	120
PLX503012	500	300	120
PLX60208	600	200	80
PLX602012	600	200	120
PLX603012	600	300	120
PLX604012	600	400	120

Mounting plate to be ordered separately

Model No.	BOX DIMENSIONS		PLATE DIMENSIONS
Model No.	W(mm)	H(mm)	W(mm)	H(mm)
PDPA-11	150	150	125	140
PDPA-22	200	200	175	170
PDPA-32	300	200	275	170
PDPA-33	300	300	275	270
PDPA-42	400	200	375	170

Similar products recommended,any questions please send email to us.

PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.

As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.

We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
