| Prod Model: |
steel wire |
| Surface Treatment: |
Hot Dipped Galvanized |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Protecting Mesh |
| Insulation Material: |
Bare |
| Certification: |
CCC |
| Conductor Material: |
Stainless Steel Wire |
| Sheath Material: |
Bare |
| Range Of Application: |
Overhead |
| Brand: |
Hautong |
Product Description
High Quality Galvanized Stainless Steel Wire / Guy Wire / Stay Wire with ASTM A475

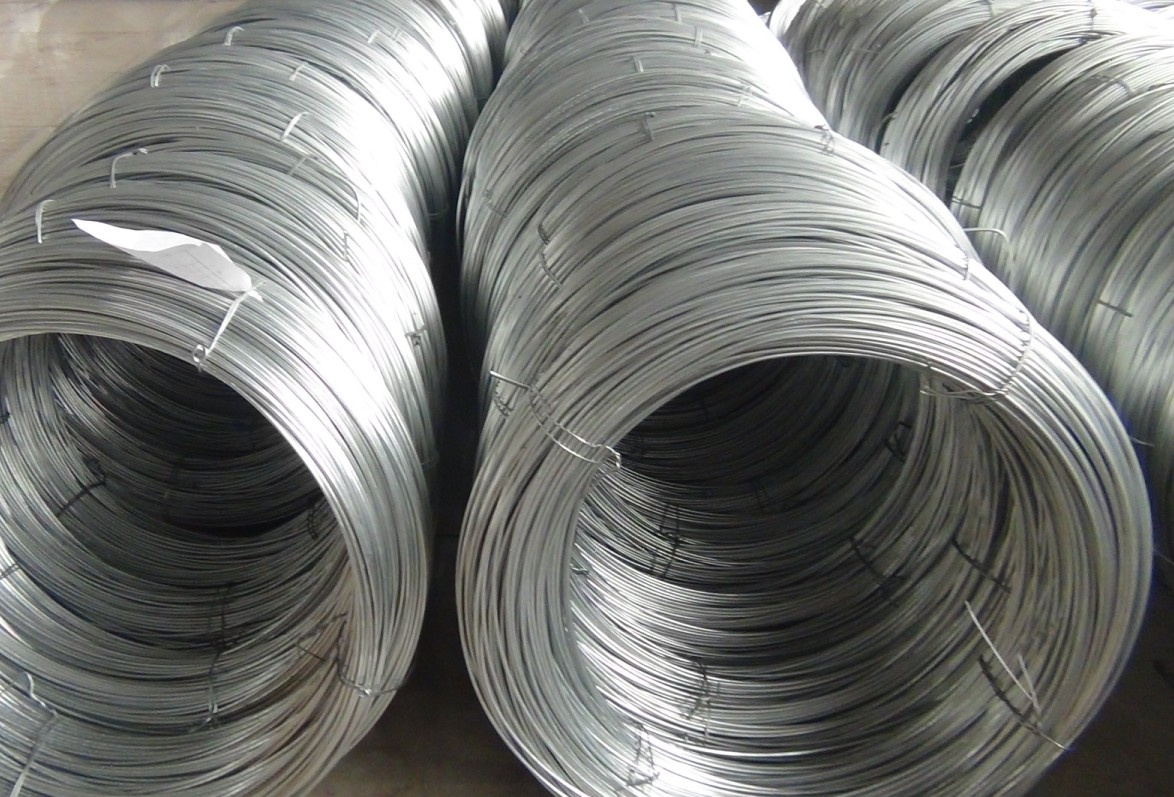

Steel wire rope , galvanized Iron Wire / galvanized steel wire
Galvanized steel guy wire Specification:
Standard by:ASTM A 475-2003,ASTM B 957,BS 183-1972 and so on.
1, Raw material
A, wire rod: SAE1006-1082, including low-, mid- and high-carbon.
B, Zinc with 99.995% purity
2, Tensile strength range
Low carbon 1.6-8.0mm: 350-800mpa
High carbon 1.6-5.0mm: 900-1870mpa
3, Zinc coating
Class A, Class B and Class C, from 200g/m2 to 924g/m2
4, Application
Gabion mesh, Wiremesh, artware, metal hose, agriculture, binding for constrction
steel core wire for ACSR,Power cable,Overhead conductors,
Telecommunication cable,Messenger wire,Earth wire,Stay wire,Guy wire,Fence etc.
5, Packing of galvanized steel wire rope steel wire
Big coil-type, spool-type
100kg-1000kg/packing
6.Application:
The galvanized single steel wires or stranded steel wires are suitable for cores of ACSR to improve its tensile strength. And they can also be used in the aerial transmission line as the line material of ground connection to avoid the lightning strike.
7.Construction:
The single wires are concentrically stranded and wrapped helically around a central wire.
ASTM a475
Number of
wires/
Nominal dia. | Approx.
strand dia. | Utilities grade | Common grade | Siemens-
martingrade | High-
strength grade | Extra high- strength grade | Approx.
weight |
| No./mm | Inch | mm | kN | kN | kN | kN | kN | kg |
| 3/2.64 | 7/32 | 5.56 | - | 6.228 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 14.012 | 8.274 | 13.523 | 21.040 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | 20.017 | - | - | - | - | 174 |
| 3/3.30 | 9/32 | 7.14 | - | 9.252 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 28.913 | 11.076 | 18.193 | 28.246 | 40.479 | 255 |
| 3/4.19 | 3/8 | 9.52 | 37.810 | 14.813 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | - | 2.402 | 4.048 | 5.916 | 8.140 | 48 |
| 7/1.32 | 5/32 | 3.97 | - | 3.870 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | - | 5.115 | 8.452 | 12.677 | 17.748 | 109 |
| 7/1.65 | 3/16 | 4.76 | 10.676 | | - | - | - | 119 |
| 7/1.83 | 7/32 | 5.56 | - | 6.850 | 11.387 | 17.126 | 24.020 | 146 |
| 7/2.03 | 1/4 | 6.35 | - | 8.452 | 14.012 | 21.129 | 29.581 | 180 |
| 7/2.36 | 9/32 | 7.14 | 20.462 | 11.432 | 18.905 | 28.469 | 39.812 | 244 |
| 7/2.64 | 5/16 | 7.94 | - | 14.234 | 23.798 | 35.586 | 49.820 | 305 |
| 7/2.77 | 5/16 | 7.94 | 26.689 | - | - | - | - | 335 |
| 7/3.05 | 3/8 | 9.52 | 51.155 | 18.905 | 30.915 | 48.040 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 80.068 | 25.355 | 41.591 | 64.499 | 92.523 | 595 |
| 7/4.19 | 1/2 | 12.70 | 111.206 | 32.917 | 53.823 | 83.627 | 119.657 | 770 |
| 7/4.78 | 9/16 | 14.29 | - | 42.703 | 69.837 | 108.981 | 155.688 | 1000 |
| 7/5.26 | 5/8 | 15.88 | - | 51.599 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.70 | - | 33.895 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | - | 42.881 | 71.616 | 107.202 | 149.905 | 949 |
| 19/3.18 | 5/8 | 15.88 | - | 48.930 | 80.513 | 124.995 | 178.819 | 1186 |
| 19/3.81 | 3/4 | 19.05 | - | 71.172 | 116.543 | 181.487 | 259.331 | 1721 |
| 19/4.50 | 7/8 | 22.22 | - | 97.416 | 159.691 | 248.211 | 354.523 | 2356 |
| 19/5.08 | 1 | 25.40 | - | 127.664 | 209.066 | 325.610 | 464.839 | 3089 |
| 37/3.63 | 1 | 25.40 | - | 125.885 | 205.508 | 319.827 | 456.832 | 3065 |
| 37/4.09 | | 28.58 | - | 160.136 | 262.000 | 407.457 | 581.827 | 4010 |
| 37/4.55 | 1¼ | 31.75 | - | 198.391 | 324.720 | 505.318 | 721.502 | 4840 |
