Zhejiang Ximeng Electronic Technology Co., Ltd. >> Step Down 12V 24V to 5V 30A 150W Power Supply

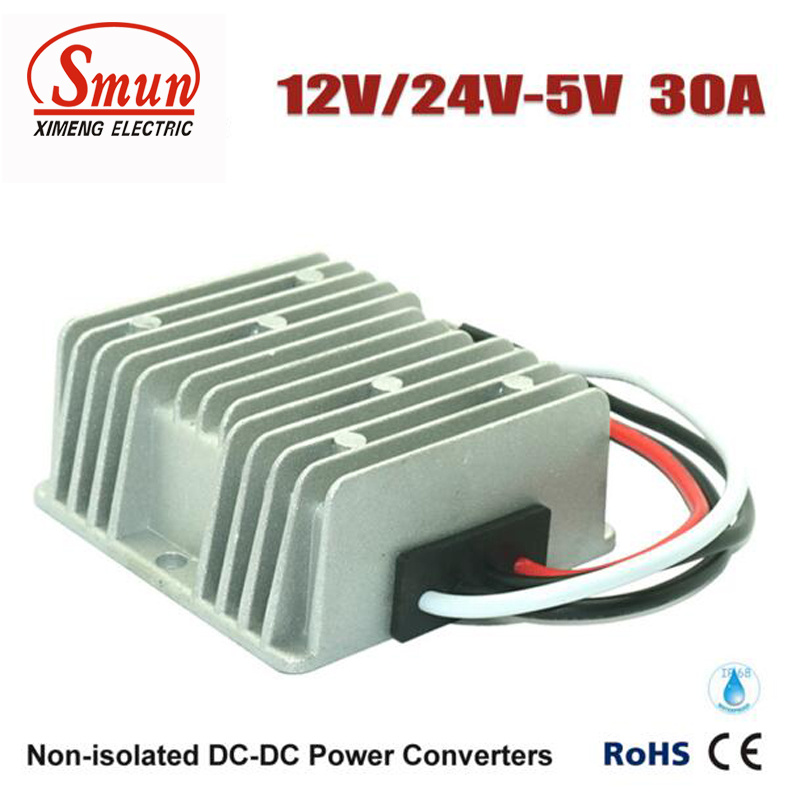

Step Down 12V 24V to 5V 30A 150W Power Supply

Step Down 12V 24V to 5V 30A 150W Power Supply
Price: US $ 10.3-14/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: SDJ-150(12/24)-5
Output Rated Power: 150W
Input Voltage Range: 8-40VDC
Output Voltage: 5V
Output Current: 30A
Efficiency: up to 92%
Waterproof: IP68
Working Temperature: -40°c to +80°c
Warranty: 1 Year
Weight: 290g
Have In Stock: Yes
Usage: Vehicle
Output Type: Single
Driving Method: LED Regulator Voltage
Power Supply Voltage: 12V/24V (Auto Working)
Brand: Smun

Product Description


Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 8-40Vdc
4. Industry grade DC12V/24V to DC5V step-down converter, high efficiency up to 91%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
10. 1 year warranty, lifetime up to 100,000 hours.

Specifications:
ModelSDJ-150(12/24)-5
Input rated voltage12V/24V DC
Input voltage range8-40V DC
Efficiency93% (half load), 91% (full load)
Output voltage5V DC
Output current30 Amps
Output rated power150 Watts
Output peak power190 Watts
Voltage regulation< 1%
Load regulation< 2%
Ripple (Full load test)< 80mV
No-load current25mA
Working temperature-40°c ~ +80°c
Waterproof ratingIP68
Over-voltage protectionYES
Over-current protectionYES
Over-temperature protectionYES
Short-circuit protectionYES
Machine size74*74*32mm
Package size98*82*34mm
N. Weight300g
G. Weight310g
Cooling wayFree air convection
OtherCarton packaging
Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.

Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
