Zhejiang Ximeng Electronic Technology Co., Ltd. >> Step up Voltage 12V DC to 24V DC 8A Power Converter

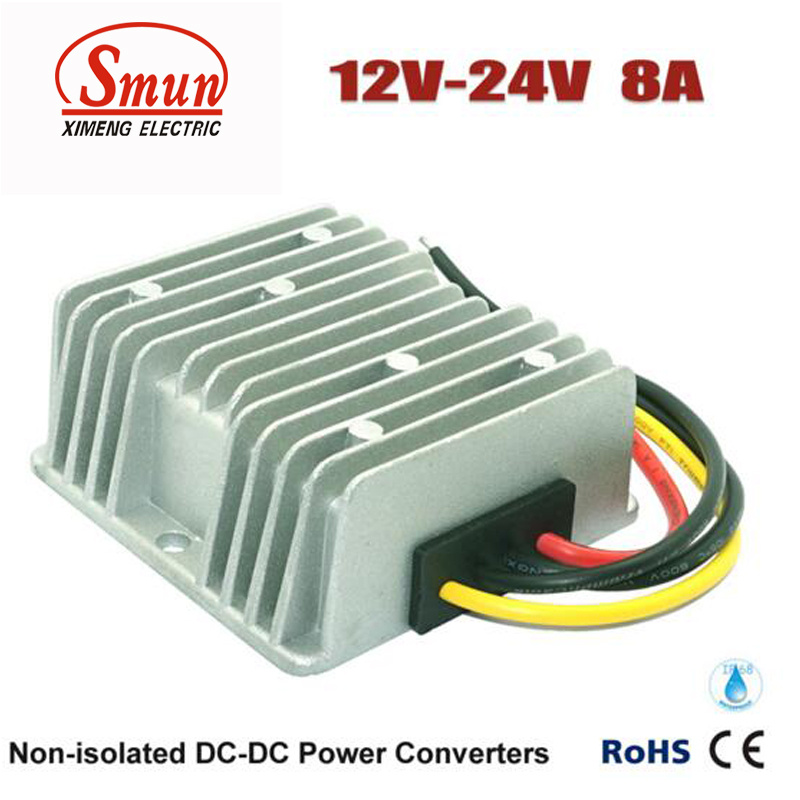

Step up Voltage 12V DC to 24V DC 8A Power Converter

Step up Voltage 12V DC to 24V DC 8A Power Converter
Price: US $ 8-11/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SDS-192(12)-24
Rated Power: 192W
Input Voltage Range: 9-18V DC
Output Voltage: 24VDC
Output Current: 8A
Size: 74*74*32mm
Waterproof IP: IP68
Efficiency: up to 94%
Weight: 290g
Working Temperature: -40°c ~ +80°c
Short-Circuit Protection: No
Output Type: Single
Warranty: 1 Year
Output Power: 101 - 200W
Connection Mode: Series Switching Power Supply
Certification: ISO
Input Voltage: 12VDC
Brand: Smun

Product Description

Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 9-23Vdc
4. Industry grade DC12V to DC24V booster converter, high efficiency up to 94%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and so on. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
10. 1 year warranty, lifetime up to 100,000 hours.

Specifications:
ModelSDS-192(12)-24
Input rated voltage12V DC
Input voltage range9-23V DC
Efficiency95% (half load), 94% (full load)
Output voltage24V DC
Output current8 Amps
Output rated power192 Watts
Output peak power240 Watts
Voltage regulation< 1%
Load regulation< 2%
Ripple (Full load test)< 150mV
No-load current25mA
Working temperature-40°c ~ +80°c
Waterproof ratingIP68
Over-voltage protectionYES
Over-current protectionYES
Over-temperature protectionYES
Short-circuit protectionNO
Machine size74*74*32mm
Package size98*82*34mm
N. Weight290g
G. Weight300g
Cooling wayFree air convection
OtherCarton packaging

Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.

Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
