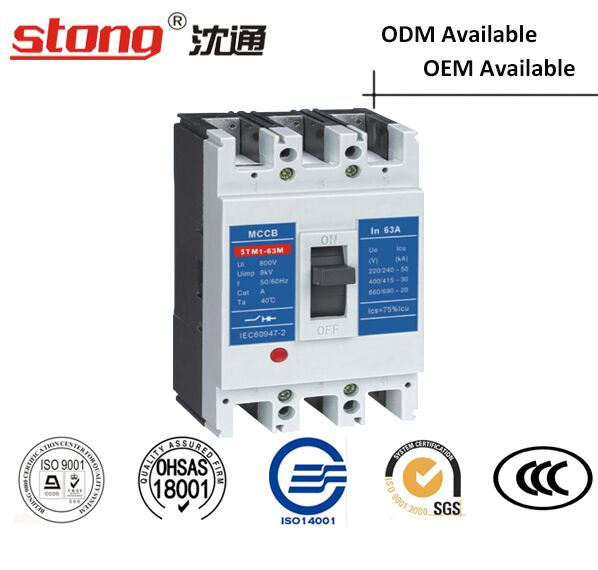

Stm1-63A Moulded Case Circuit Breaker MCCB

Name: Stm1-63A Moulded Case Circuit Breaker MCCB
Brand: all-electronics-online.com
SKU: 686025211
Availability: InStock
Rating: 4.9 (32 reviews)

Price:	US $ 34-35/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	STM1-63
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	4
Certification:	CCC

Product Description

Advantages:
1.Our Company Has Great Reputation In The Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

Model (3P; 4P)

Items	Ampers	Poles	Voltage	Rated Current	Certificate
STM2-100	100A	3/4P	400/415V	12.5A-100A	IEC60947-2
STM2-160	160A	3/4P	400/415V	25A-160A	IEC60947-2
STM2-250	250A	3/4P	400/415V	100A-250A	IEC60947-2
STM2-400	400A	3/4P	400/415V	200A-400A	IEC60947-2
STM2-630	630A	3/4P	400/415V	350A-630A	IEC60947-2

STM2-1600

1600A

3/4P

400/415V

500A-1600A

IEC60947-2

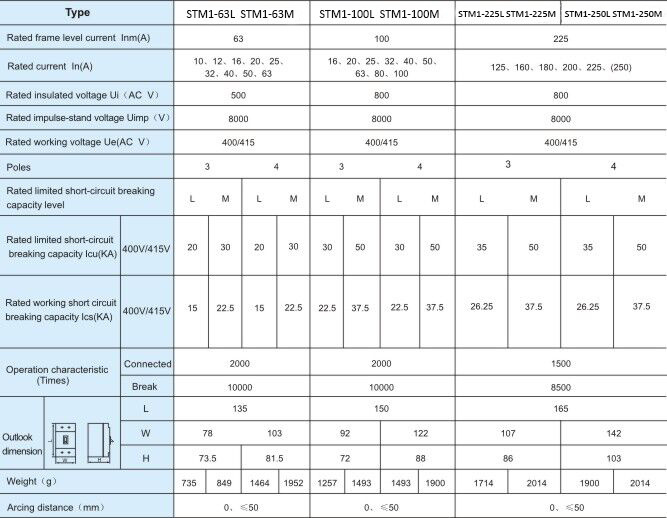

STM1-63L, STM1-63M : 10, 12, 16, 20, 25, 32, 40, 50, 63A
STM1-100L, STM1-100M: 16, 20, 25, 32, 40, 50, 63, 80, 100A
STM1-225L, STM1-225M: 125, 160, 180, 200, 225A

APPLICATION
STM1 series moulded case circuit breaker ( named as MCCB in the following) is a new type breaker which is applied with rated insulating voltage 800V (500V for STM1-63), rated working voltage 400V/415V and used for infrequent exchange and startup in AC (60)Hz condition. The MCCB is of protecting function in overloading, short-circuit, and under voltage situation to protect circuit system and power device from damage.

The MCCB can be devided into L; M; H types according to their rated limit short-circuit breaking capacity.

The MCCB is advantageous for its compact body, high breaking capacity ( some even on flying arc), short arc-casting and superior aseismatic function.

The MCCB has function of insulation.

Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture

Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.

We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.

Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
