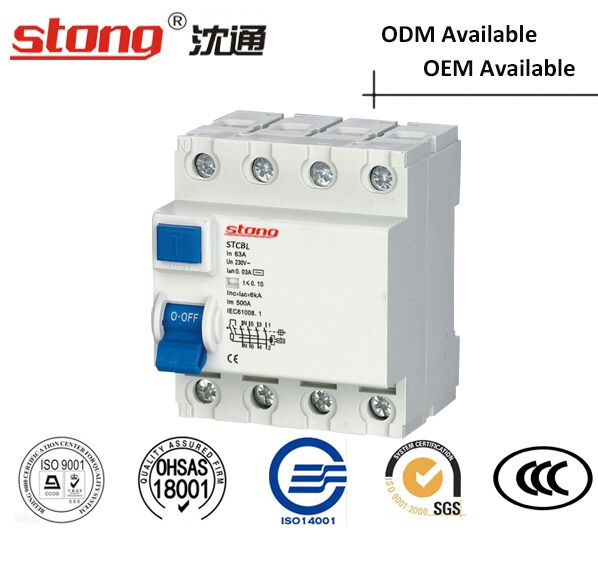

Stong RCCB Residual Current Circuit Breaker with High Quality
| Price: |
US $ 2.3-2.4/Piece |
| Min Order: |
300/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
stcbl |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
2 |
| Certification: |
CCC |
Product Description
Advantages: 1.Our Company Has Great Reputation In The Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly| Standard | IEC61008-1 |
| Electrical Feature |
| Type(wave form of the earth leakage sensed) | | AC, A, AC~S, A~S |
| Rated current In | A | 25,40,50,63 |
| Poles | P | 2,4 |
| Rated voltage Ue | V | 240/415 |
| Rated sensitivity | A | 0.03,0.1,0.3 |
| Insulation voltage Ui | V | 500 |
| Rated residual making and breaking capacity | A | 500(In=25/40A) 630(In=50/63A) |
| Short-circuit current Inc | A | 4500/6000A |
| SCPD fuse | | 6000 |
| Break time under | S | ≤0.1 |
| Rated frequency | Hz | 50/60 |
| Rated impulse withstand voltage(1.2/50) Uimp | V | 4000 |
| Dielectric test voltage at ind. Freq. For 1 min | V | 2500 |
| Pollution degree | | 2 |
| Mechanical Feature |
| Electrical life | | 2000 |
| Mechanical life | | 2000 |
| Fault current indicator | | Yes |
| Protection degree | | IP20 |
| Ambient temperature (with daily average≤ 35º C) | º C | -5...+40 |
| Storage temperation | º C | -25...+70 |
| Installation |
| Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | 25mm2 18-3AWG |
| Terminal size top/bottom for busbar | 25mm2 18-3AWG |
| Tightening torque | 2.5 N*m 18 In-Ibs |
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device |
| Connection | From top and bottom |
DescriptionType (wave form of the earth leakage sensed): AC, A
Thermo-magnetic release characteristic: C, D
Rated current In MCB+add-on RCD block: 63, 80, 100A
Poles: 2P(1P+N), 4P (3P+N)
Rated voltage Ue: 240/415V
Rated sensitivity In MCB+add-on RCD block: 0.03, 0.1, 0.3A
Rated residual making and breaking capacity Im: 500A(In40A) 630(In40A)
Rated short-circuit capacity lcn: 6, 000A
Break time under In: 0.1s
Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4, 000V
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 500V
Pollution degree: 2Mechanical FeaturesElectrical life: 2, 000
Mechanical life: 4, 000
Contact position indicator: Yes
Protection degree: IP20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º CInstallationTerminal size top/bottom for cable: 50mm2
Terminal size top/bottom for busbar: 50mm2
Tightening torque 2.5 N*m
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom (for combined type)
From top (MCB+add-on RCD block)
Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture
Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.
We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.
Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
