| Prod Model: |
THW |
| Product Name: |
Thw Cable |
| Conductor: |
Copper |
| Voltage: |
450/750V |
| Cross Section: |
0.5--100mm2 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Gemt |
Product Description

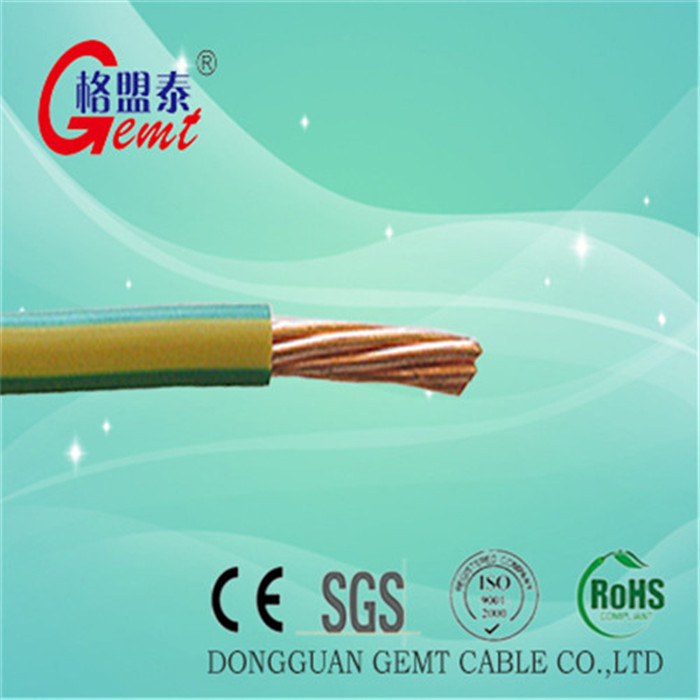

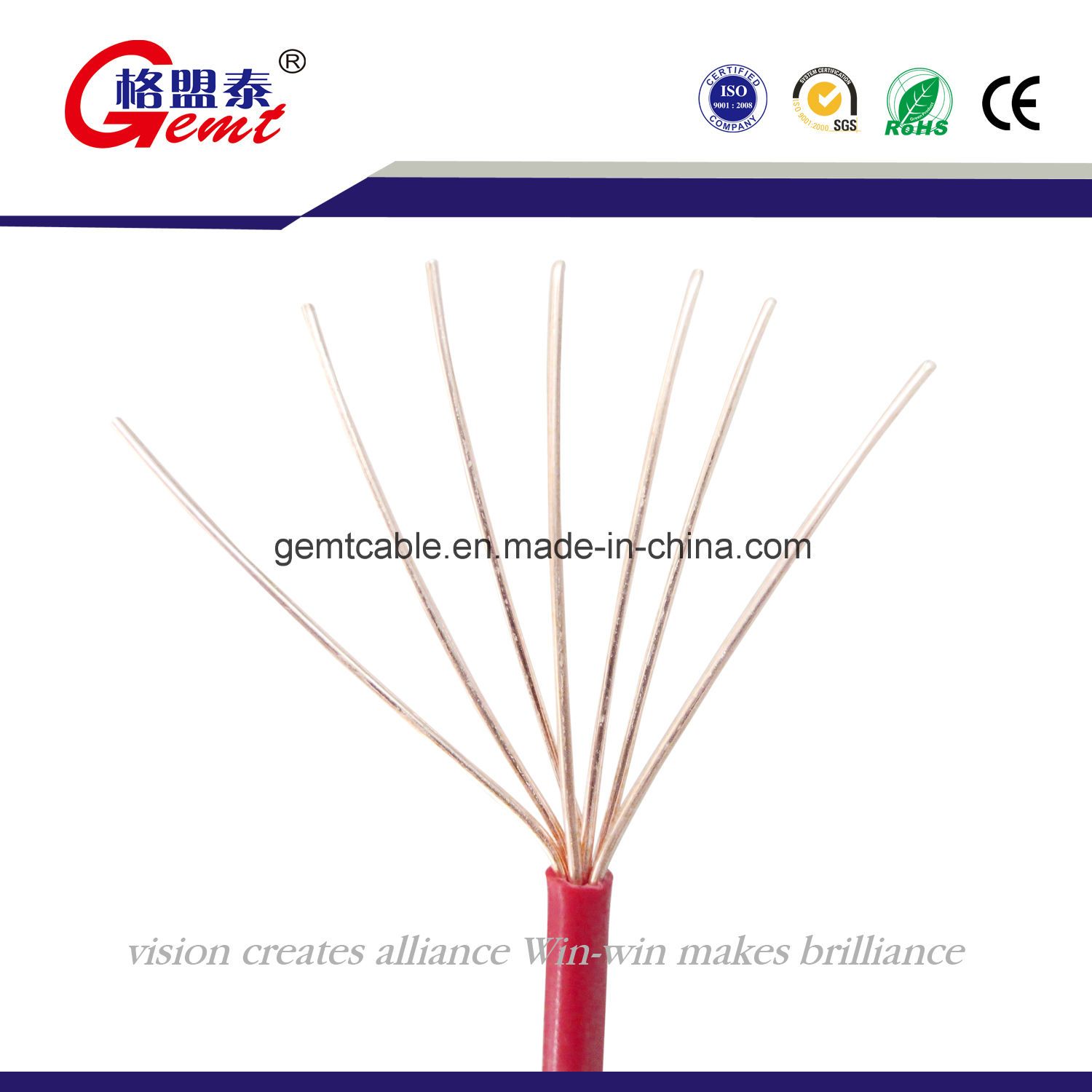

THW Cable
Specifications1. Pure copper conductor
2. Compliance:UL standard 1424,NEC article 760
3. PVC insulation
Product Introduction:
The table below shows various data including both the resistance of the various wire gauges and the allowable current (ampacity) based on plastic insulation. The diameter information in the table applies to solid wires. Stranded wires are calculated by calculating the equivalent cross sectional copper area. AC frequencies equal to or less than 60 Hz, and does not take skin effect into account. Turns of wire is an upper limit for wire with no insulation.
THW
| AWG | Diameter | Turns of wire | Area | NEC copper wire
ampacity with
60/75/90 °C
insulation (A)[7] |
| (inch) | (mm) | (per in) | (per cm) | (kcmil) | (mm2) |
| 0000 (4/0) | 0.4600 | 11.684 | 2.17 | 0.856 | 212 | 107 | 195 / 230 / 260 |
| 000 (3/0) | 0.4096 | 10.404 | 2.44 | 0.961 | 168 | 85.0 | 165 / 200 / 225 |
| 00 (2/0) | 0.3648 | 9.266 | 2.74 | 1.08 | 133 | 67.4 | 145 / 175 / 195 |
| 0 (1/0) | 0.3249 | 8.252 | 3.08 | 1.21 | 106 | 53.5 | 125 / 150 / 170 |
| 1 | 0.2893 | 7.348 | 3.46 | 1.36 | 83.7 | 42.4 | 110 / 130 / 150 |
| 2 | 0.2576 | 6.544 | 3.88 | 1.53 | 66.4 | 33.6 | 95 / 115 / 130 |
| | | | | | | | |
| 4 | 0.2043 | 5.189 | 4.89 | 1.93 | 41.7 | 21.2 | 70 / 85 / 95 |
| 5 | 0.1819 | 4.621 | 5.50 | 2.16 | 33.1 | 16.8 | |
| 6 | 0.1620 | 4.115 | 6.17 | 2.43 | 26.3 | 13.3 | 55 / 65 / 75 |
| 8 | 0.1285 | 3.264 | 7.78 | 3.06 | 16.5 | 8.37 | 40 / 50 / 55 |
| 9 | 0.1144 | 2.906 | 8.74 | 3.44 | 13.1 | 6.63 | |
| 10 | 0.1019 | 2.588 | 9.81 | 3.86 | 10.4 | 5.26 | 30 / 35 / 40 |
| 11 | 0.0907 | 2.305 | | | | | |
| 12 | 0.0808 | 2.053 | 12.4 | 4.87 | 6.53 | 3.31 | 25 / 25 / 30 |
| 14 | 0.0641 | 1.628 | 15.6 | 6.14 | 4.11 | 2.08 | 20 / 20 / 25
|

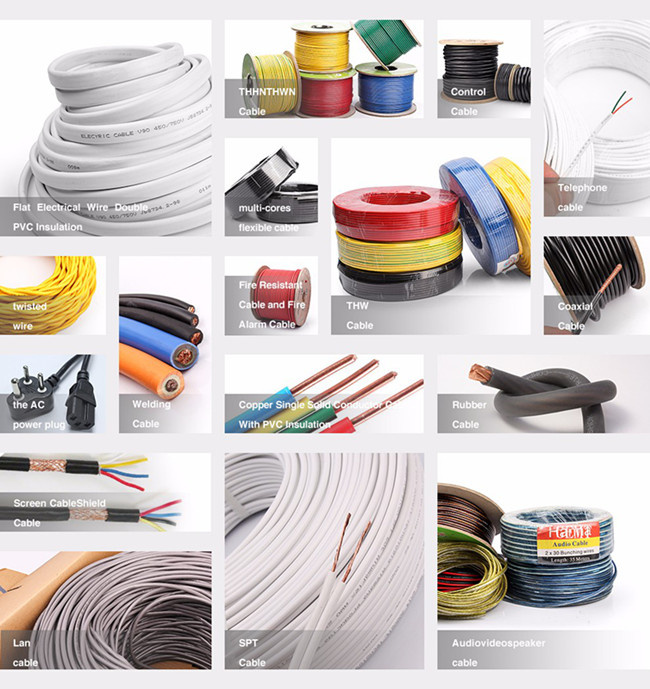

Our products:

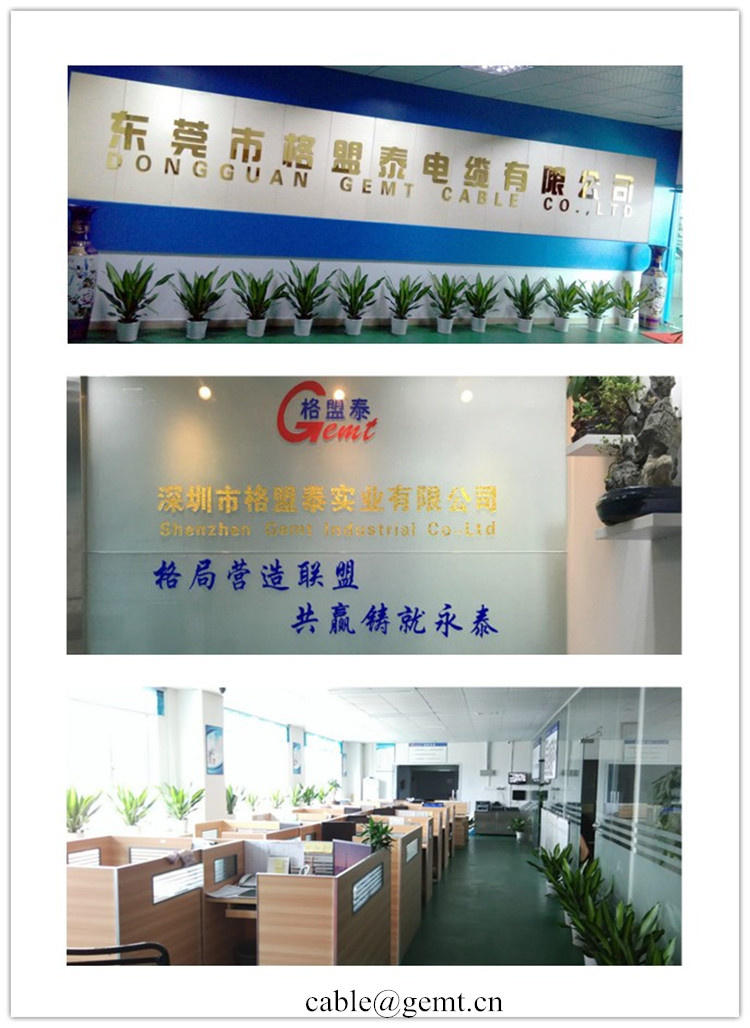

Company Information:Introduction of GEMT Cable Co., Ltd.
1. WHO ARE WE?
Gemt Cable Co., Ltd is a professional manufacturer and supplier of Lan cable, Flat cable, Welding cable, Speaker cable, Audio cable, Video cable, Coaxial cable, Power cable, Telephone cable, Home electrical cable, etc. since 1991.
2. WHEN WE BORN?
Gemt Cable Co., Ltd is establish in 1991. For now we have over 20 years in manufacturing cables and wires. We become more mature, more responsibility to our customers!
3. WHERE ARE WE?
We are located in Nanshan 2nd Industrial Zone, Yantian District, Fenggang Town, Dongguan City, Guangdong Province, China. Welcome to visit our factory anytime!
4. WHAT WE HAVE?
We have advanced production lines and inspecting equipments. Our products is with CE,CB,RoHS certificate, by strictly confirming to GB,IEC and ISO9001:2000 standards.
5. WHY CHOOSE US(GEMT)?
G--Guaranteed quality
E--Effective service
M--Mutual benefit
T--Top technique
GEMT Cable, Friend Reliable

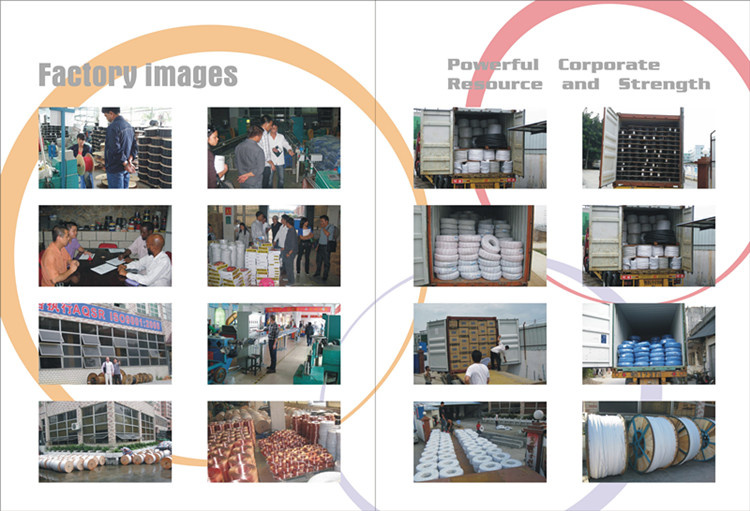

Factory:

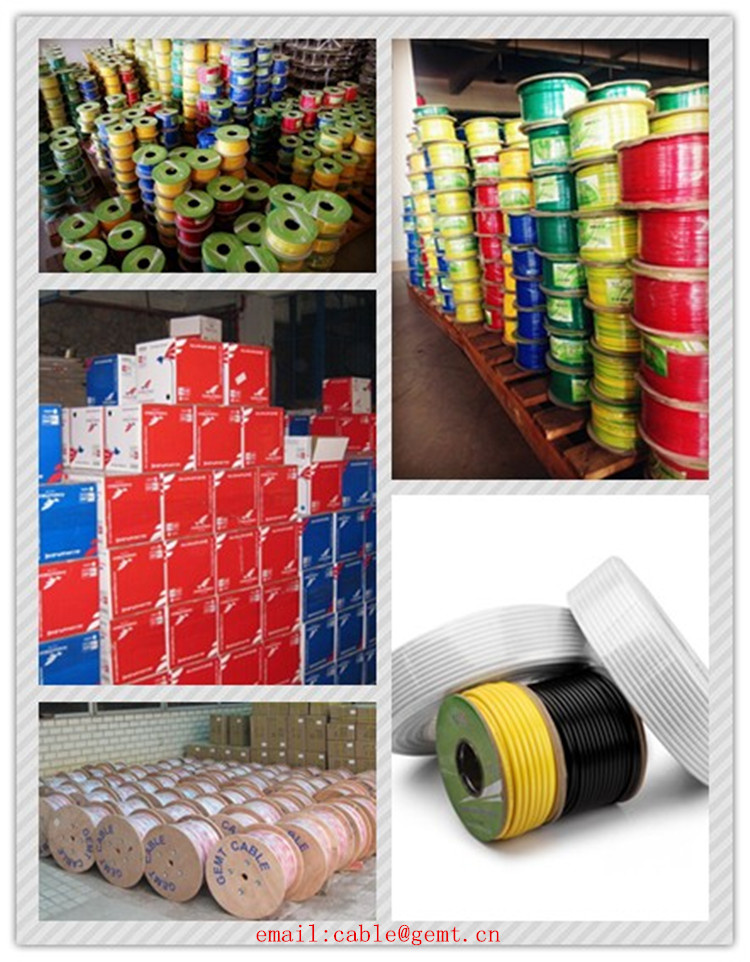

Packing:

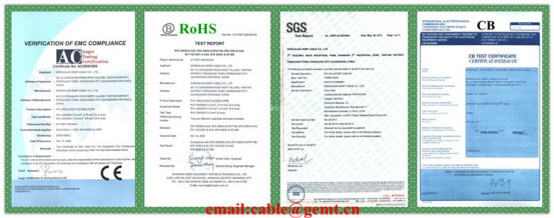

Certificates:
