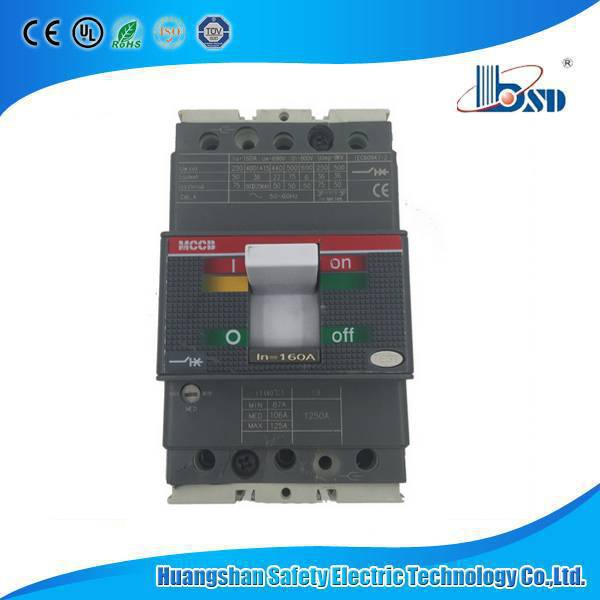

Stym3 Moulded Current Circuit Breaker, MCCB

Name: Stym3 Moulded Current Circuit Breaker, MCCB
Brand: all-electronics-online.com
SKU: 810589405
Availability: InStock
Rating: 4.6 (104 reviews)

Price:	US $ 7.9-85.6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	STYM3
Items:	Ns Moulded Case Circuit Breaker(MCCB)
Rated Current:	16A to 800A
Grade Quality:	A Grade
Warranty Time:	2 Years
Service:	OEM and ODM Service
Delivery Time:	2 Weeks
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	CCC
Poles Number:	2p, 3p, 4p

Product Description

STYM3 moulded case circuit breaker is the lastest model , suitable for circuit AC 50Hz/60Hz, rated voltage up to AC 660V, rated operating current up to 1600A.It features normal structure, reliable performance, high breaking capacity, used for power distribution and protecting the circuit and electrical equipment against overload and short circuit.It complies with standard of IEC60947-2.

Type	Rate Current(A)
STYM3-125E(S1)/3P	12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125A
STYM3-125S(S1)/3P
STYM3-125M(S1)/3P
STYM3-125(S1)/4P
STYM3-160S(S2)/3P	16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160A
STYM3-160M(S2)/3P
STYM3-160H(S2)/3P
STYM3-160(S2)/4P
STYM3-250S(S3)/3P	100, 125, 160, 180, 200, 225, 250A
STYM3-250M(S3)/3P
STYM3-250H(S3)/3P
STYM3-250(S3)/4P
STYM3-400S(S3)/3P	200, 225, 250, 315, 350, 400A
STYM3-400M(S5)/3P
STYM3-400H(S5)/3P
STYM3-400(S5)/4P
STYM3-400/3P
STYM3-630(S6)/3P	400, 500, 630A
STYM3-630M(S6)/3P
STYM3-630H(S6)/3P
STYM3-630(S6)/4P
STYM3-630/3P
STYM3-800S(S6)/3P	500, 630, 700, 800A
STYM3-800M(S6)/3P
STYM3-800H(S6)/3P
STYM3-800(S6)/4P
STYM3-800/3P

Also make NS/NF/CS/SS/HFD /MAX ,DW45 ETC series moulded case circuit breakers with top quality and competitive price ,and two years warranty time for all breakers products ,welcome your enquiry at any moment .

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
