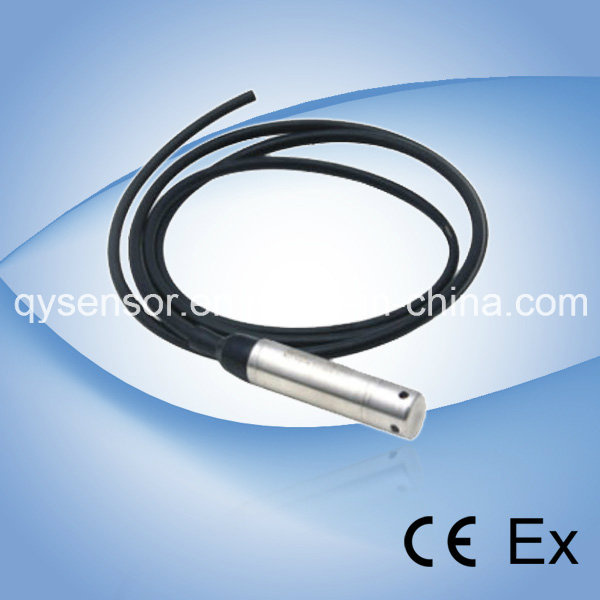

Submersible Water Level Pressure Sensor Transducer (QST-201)
| Price: |
US $ 53-65/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
QST-201 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Range: |
0~200 Mh2o |
| Accuracy: |
0.25%Fs |
| Overload Pressure: |
150%Fs |
| Product Name: |
Submersible Water Level Pressure Sensor Transducer |
Product Description
QST-201 Submersible Water Level Pressure Sensor Transducer (QST-201) series liquid level transmitters are consisting of well-sealed immerging oil-filled liquid level transducers and special circuit for manometers. Have characteristics of high precision, good stability, long life and easy to fix. Adopt special sealed configuration, so with good capability of anti-leakage.
According the relation between pressure, density and liquid level, the liquid level transducers measure the liquid pressure which in direct ratio with depth of liquid, then via amplificatory circuit, the measured pressure is transferred to standard 4~20mA current signal(or standard voltage signal).
Feature:
Range:0~0.6 mH2O....0~200 mH2O
Sealed structure, IP68.
Accuracy: 0.1% FS, 0.25% FS (standard), 0.5% FS
There is two kinds of connector to be chosen: intracavity or flush membrane type
Integrated construction, without external adjustment.

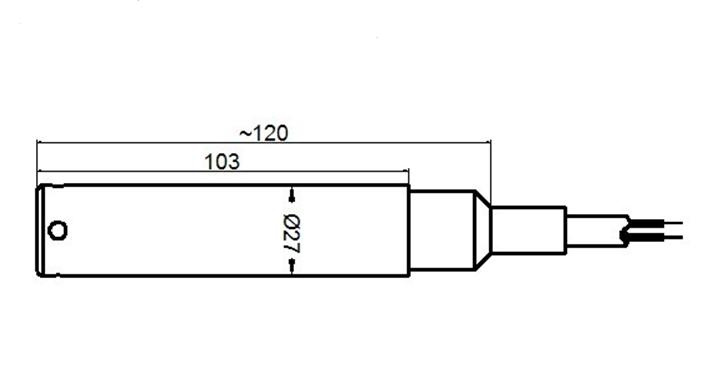

Dimensions: (unit: mm)
Technical Specifications| Measuring media | Liquid which are compatible to 316L stainless steel |
| Measuring range | mH2O | 0~0.6,0~1,0~2,0~5,0~10,0~20,0~30, |
| 0~50,0~100,0~150,0~200 |
| Overload pressure | %FS | 150 |
| Signal output | transmitter, mA (2 wires) | 4~20 |
| transmitter, Vdc (3 wires) | 0~5, 0~10 |
| Power supply | Vdc | 12~36(Model 24) |
| Static accuracy | %FS | 0.1, 0.25(standard), 0.5 |
| Zero adjustment | %FS | ≤±0.25 |
| Span adjustment | %FS | ≤±0.25 |
| Long-term stability | %FS/year | <±0.5 |
| Response time | ms | <2 |
| Storage temp. | ºC | -40~+100 |
| Operation temp. | ºC | 0~+80 |
| Compensated temp. | ºC | 0~+50 |
| Temp. coefficient of ZERO | %FS/10ºC | 0.2 |
| Temp. coefficient of SPAN | %FS/10ºC | 0.2 |
| Insulation resistance | M Ω | ≥500 @ 100 Vdc |
| Load resistance | current output, Ohm | 250~1100 |
| voltage output, Ohm | >5000 |
| Environmental protection | IP rating | IP 68 |
| pressure memberane material | 316L SS |
| Material for housing | 304 SS |
| Electrical connection | connector/cable | 4-core,7.6 mm shielded cable with vent pipe which is mechanically strong enough for deep submersible liquid level measurements |

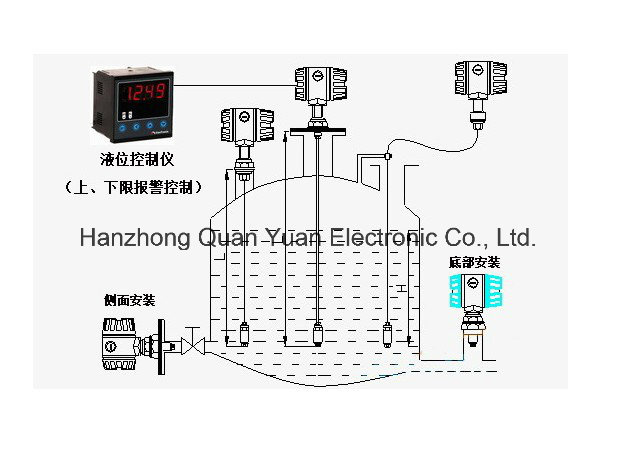

Installtion demonstration
Packaging & Shipping
- Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
- According to the clients requirement
Our Services
- We are committed to providing a high quality,and responsive services to all clients
- Detailed informations, specific and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
- Packageing: well box packed and provide optimal freight for you refrence.
- All products OEM available
Company Information
Han Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60
Chloe ShuHanZhong QuanYuan Electronic Co.,Ltd.TEL: +86-916-2257989 https://cn.linkedin.com/in/qysensorhttp://www.qysensor.com
Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).
All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.
In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.
Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
