Super Mini 12mm Electronic Switch, Ultra Short Push Button Switches

Super Mini 12mm Electronic Switch, Ultra Short Push Button Switches
Price: US $ 0.63-1.7/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: HBGQ12SF-10/J/S
Mounting Hole Size: Push Button Switches
Waterproof Level: IP65
Rating: 2A/36VDC
The Front Head: Flat Round
Contact Confirguration: 1no
Operation Type: Momentary
The Crust Material: Stainless Steel and Nickel-Plated Brass
Terminal Type: Pin Terminal
Mechanical Life: 1000000 Times
Elecrical Life: 200000times
Type: Normal Open
Usage: Check Button
Kind: Single-pole on-off Switch
Contact Type: X Contact
Brand: Hban
Certification: RoHS TUV

Product Description

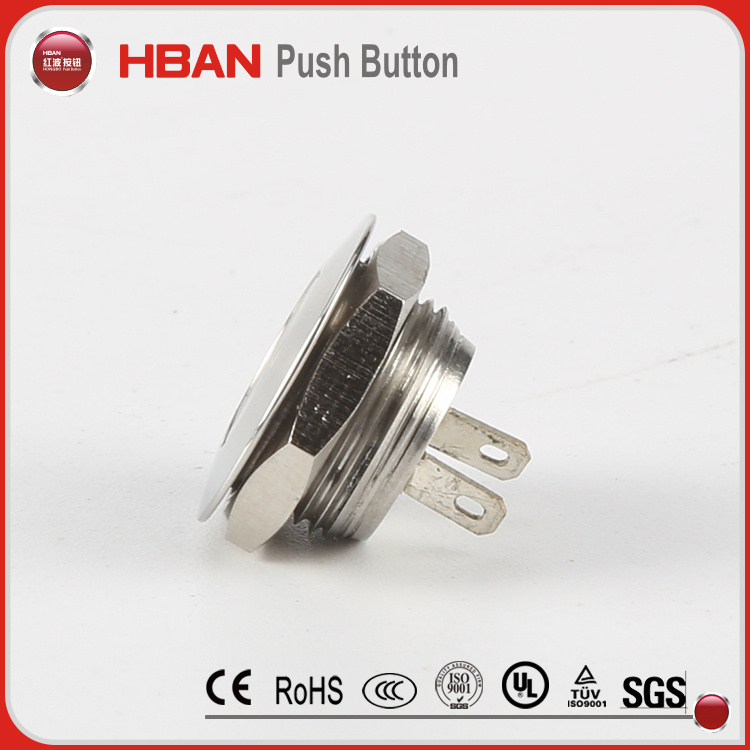

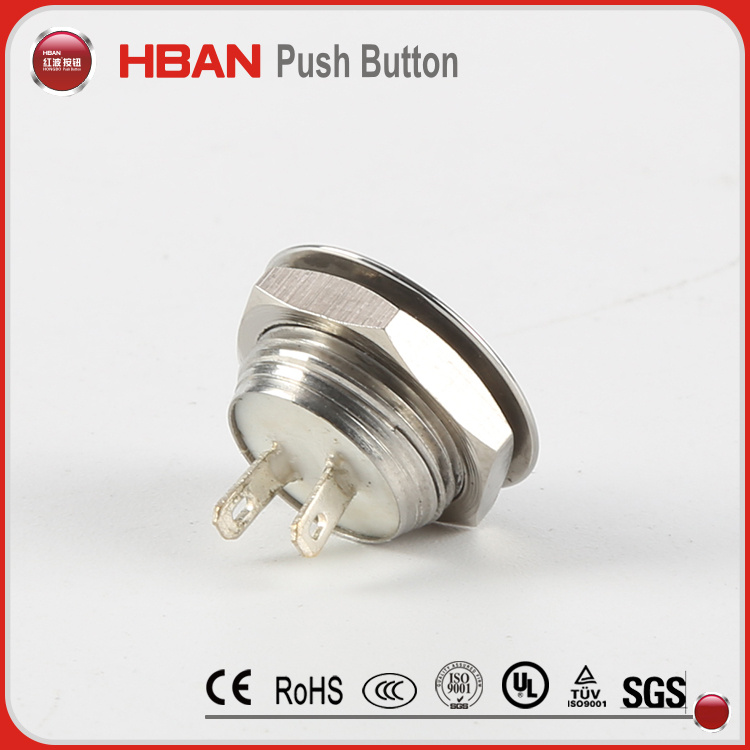

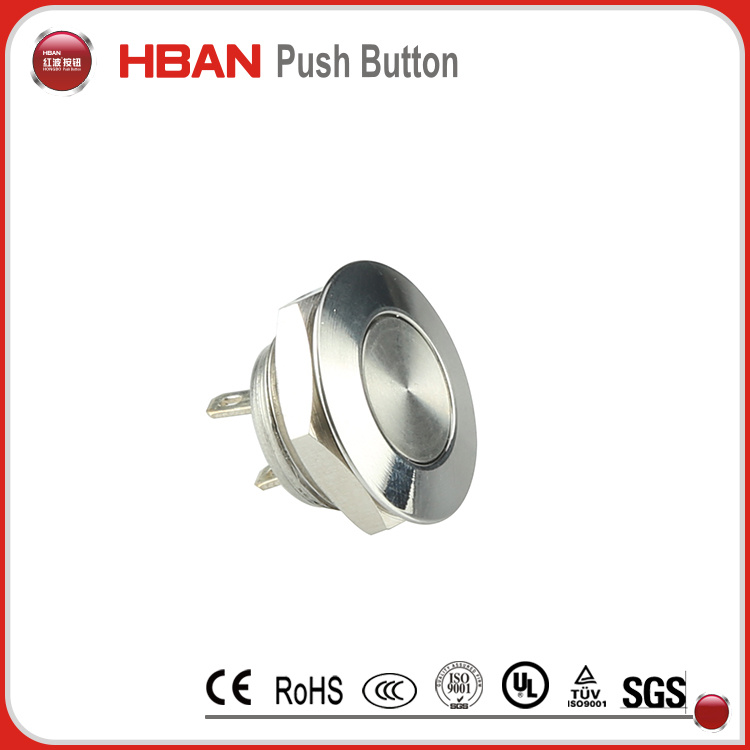

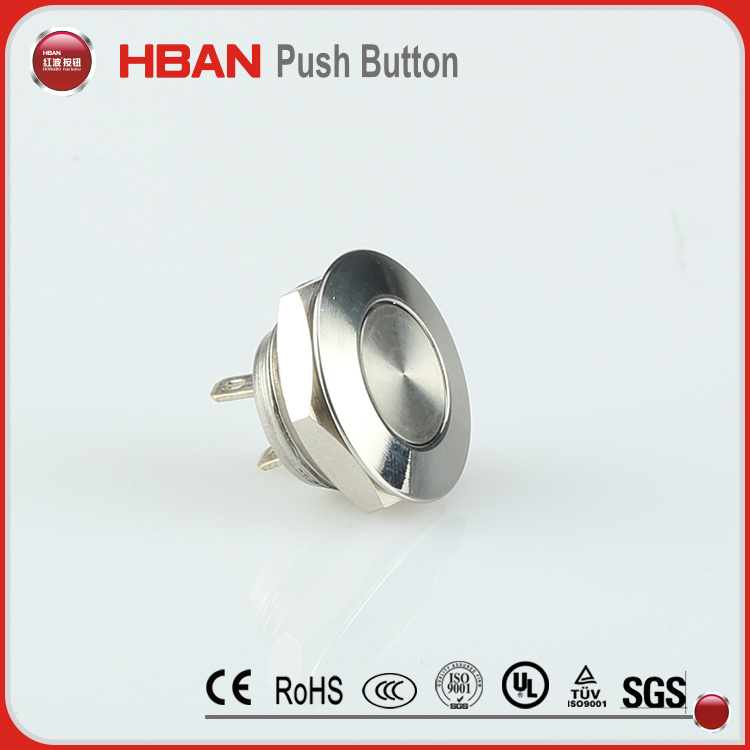

 Super Mini 12mm Electronic Switch,Ultra short push button switches

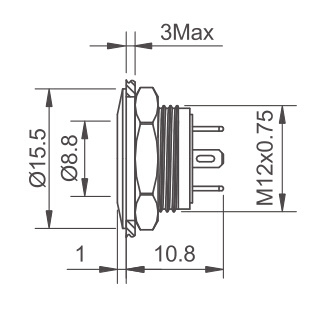

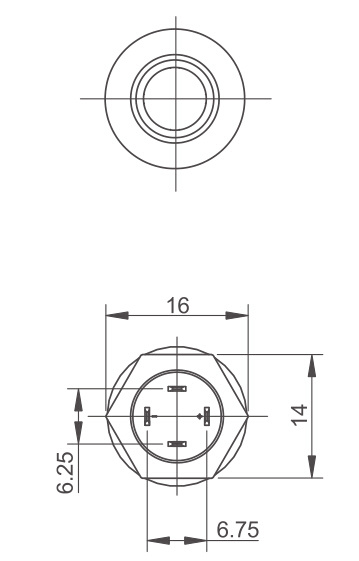

Mounting hole size:12mm
Switch Rating:2A/36VDC
Contact confirguration:1NO
Operation Type:Momentary
The front shape:Flat Round
The crust material:Stainless Steel and Nickel-plated Brass
SpecificationHBGQ12SF-10/J
The Front ShapeFlat
Terminal TypePin Terminal
Switch TypeTwo terminal breakpoints slow moving contact
Switch Specification2A/36VDC
Contact Resistance<50mΩ
Insulation resistance>1000mΩ
Dielectric Strength2000VAC
Operation Temperature-20ºC~ 55ºC
Mechanical Life>1,000,1000 times
Elecrical Life  >200,000 times
Panel Thickness1~5mm
Torque5-14Nm
Operation Pressureabout 5N
Operation Strokeabout 2.5mm
Protection DegreeIP65 IK08
Material
ContactSilver Alloy
ButtonPBT
CaseZn alloy
BasePBT
Head ColorR/G/B/W/Y/O/N


2.Package:
ITEMPC/BOXBOX/CTNPCS/CTNCBM
HBGQ12F50251250435X380X335

3.RAQ:
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP65 IK10

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
